The smaller Secto wall lamp highlights the walls with its soft light. Delightful both on its own and in a row. Designed by architect Seppo Koho, launched in 2002.
| Download EPD from Environdec. |
 |
Colour:
Get it here!

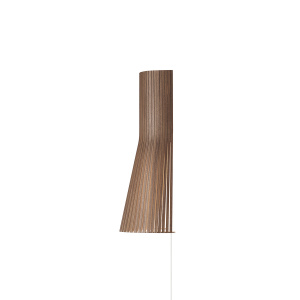

Secto 4231 wall lamp

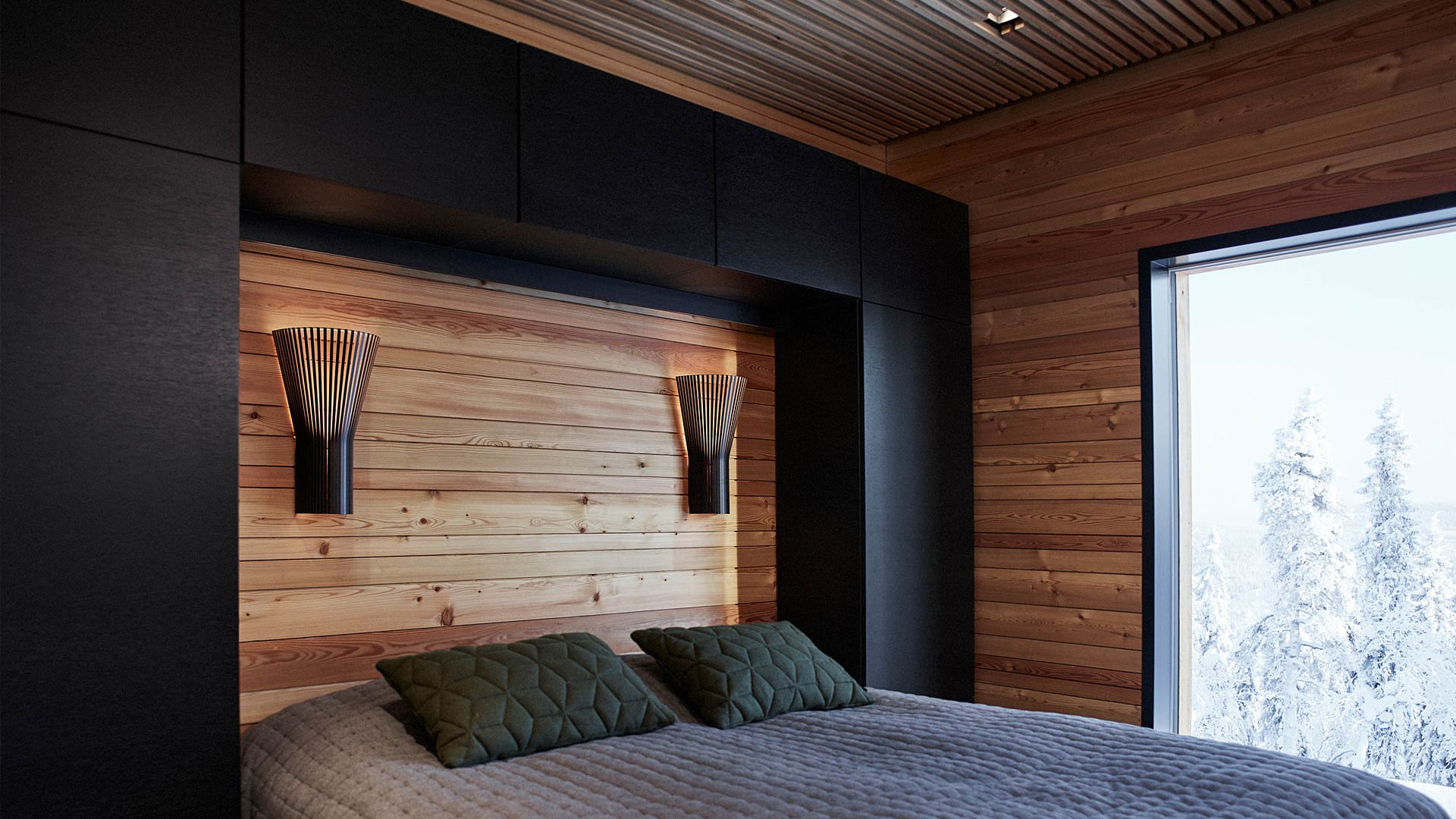

Secto Small 4231. Holiday Apartment Villa Tykkyrinne. Iso-Syöte, Pudasjärvi, Finland. Photo by Petri Teppo / Studio Arctica.
Secto 4231. Private Residence, Helsinki, Finland. Photo by Uzi Varon

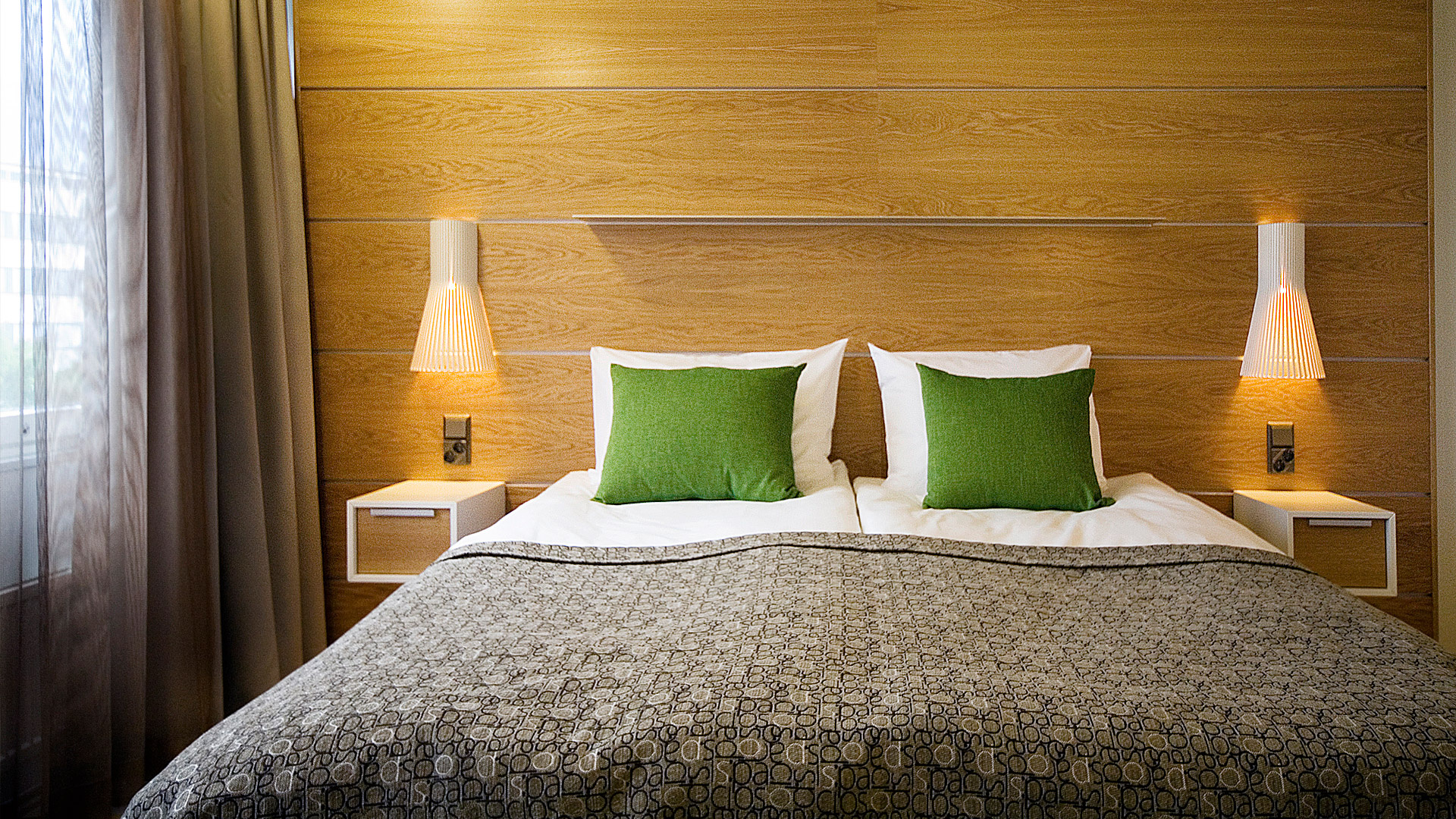

Secto 4231. Hotel Salpaus. Lahti, Finland. Photo by Pia Paalasvuo.
Secto wall lamps can also be used in covered patios. Applies only to CE marked lamps. Photo by Uzi Varon.
More images of the Secto Small 4231 wall lamp here
Handmade from PEFC-certified form-pressed birch in Finland by highly skilled craftspeople.
| Shade | Back plate | Cable |
| Natural birch | White | White |
| White laminated | White | White |
| Black laminated | White | White |
| Walnut veneer | White | White |
| Material | Form-pressed birch slats, powder coated steel back plate |

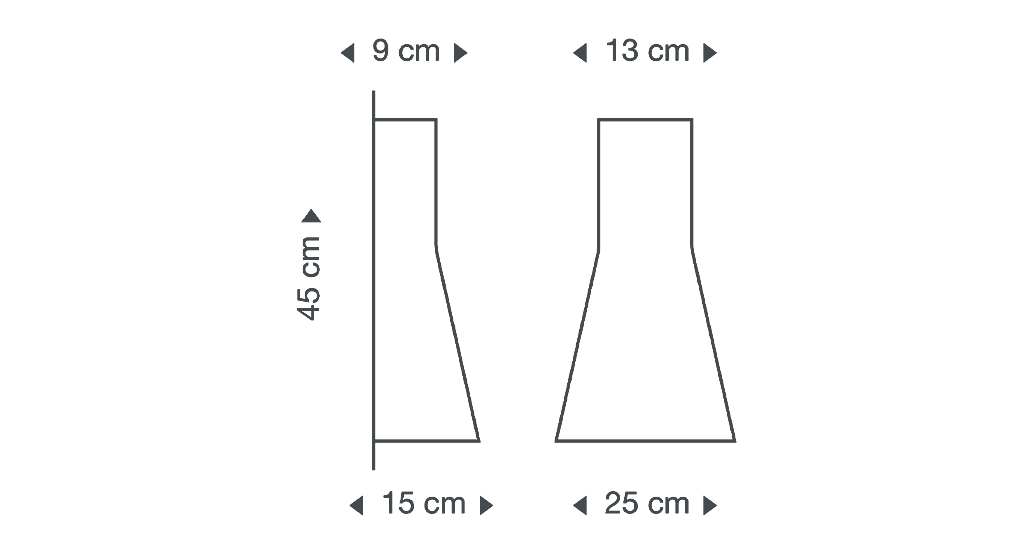

| Dimensions | Height 45 cm Depth 9–15 cm Width 13–25 cm Weight 0,9 kg Package 28 × 18 × 51 cm, 1,6 kg |
| Voltage | 220-240VAC 50Hz |
| Light source | E14 base, LED max 20 W. Comes with a LED bulb (Airam Pro LED, E14, 6 W, 470 lumen, 3000 K, pure white, dimmable, may vary). The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. This product is supplied with an example bulb of energy efficiency class E. |
| Dimming | Details |
| DALI | Attachable to DALI systems with a separate DALI-compatible trailing edge (phase cut off) type dimmer. Due to great variation in DALI systems, Secto Design does not supply DALI-dimmers. Please contact your local electrician. |
| Cable | 240 cm, textile cable, switch on the cable. Also available with direct wall mounting. |
| Classification | Ingress Protection IP20, IEC Protection Class II, CE marking |
| Installation | Separate instructions on the website. |
| Maintenance | Wipe dust regularly. To remove fresh stains wipe with a slightly damp cloth. |

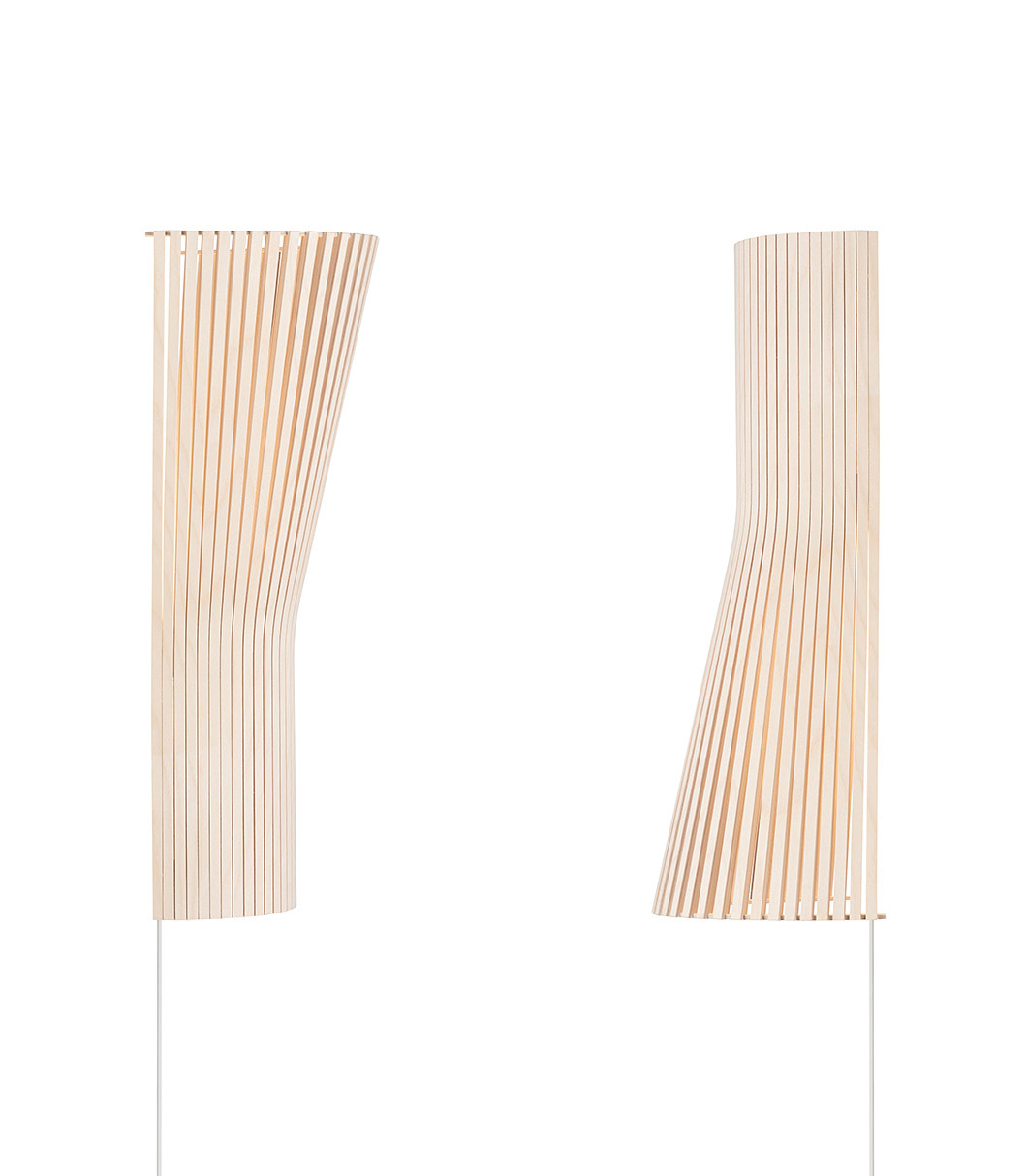

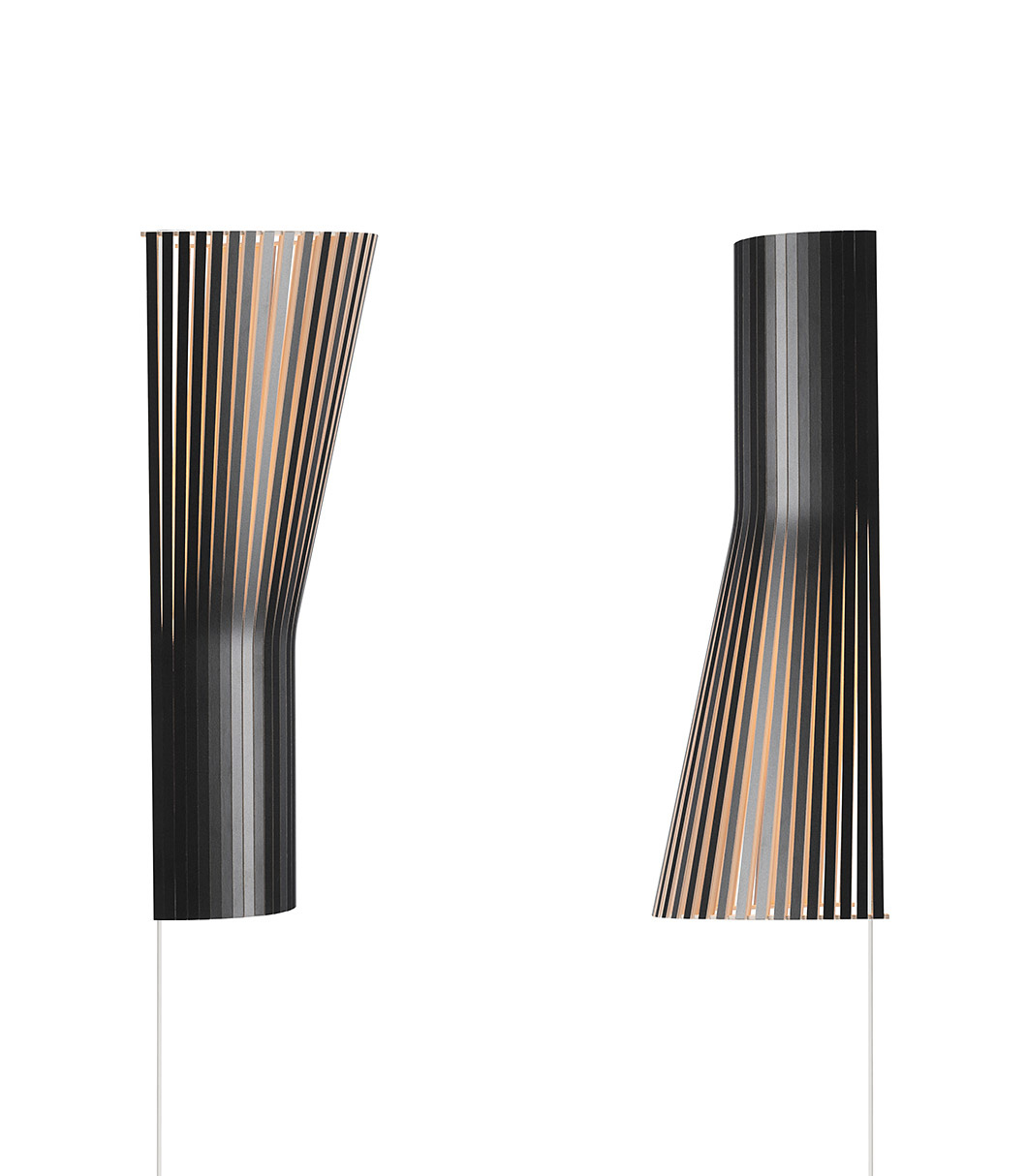

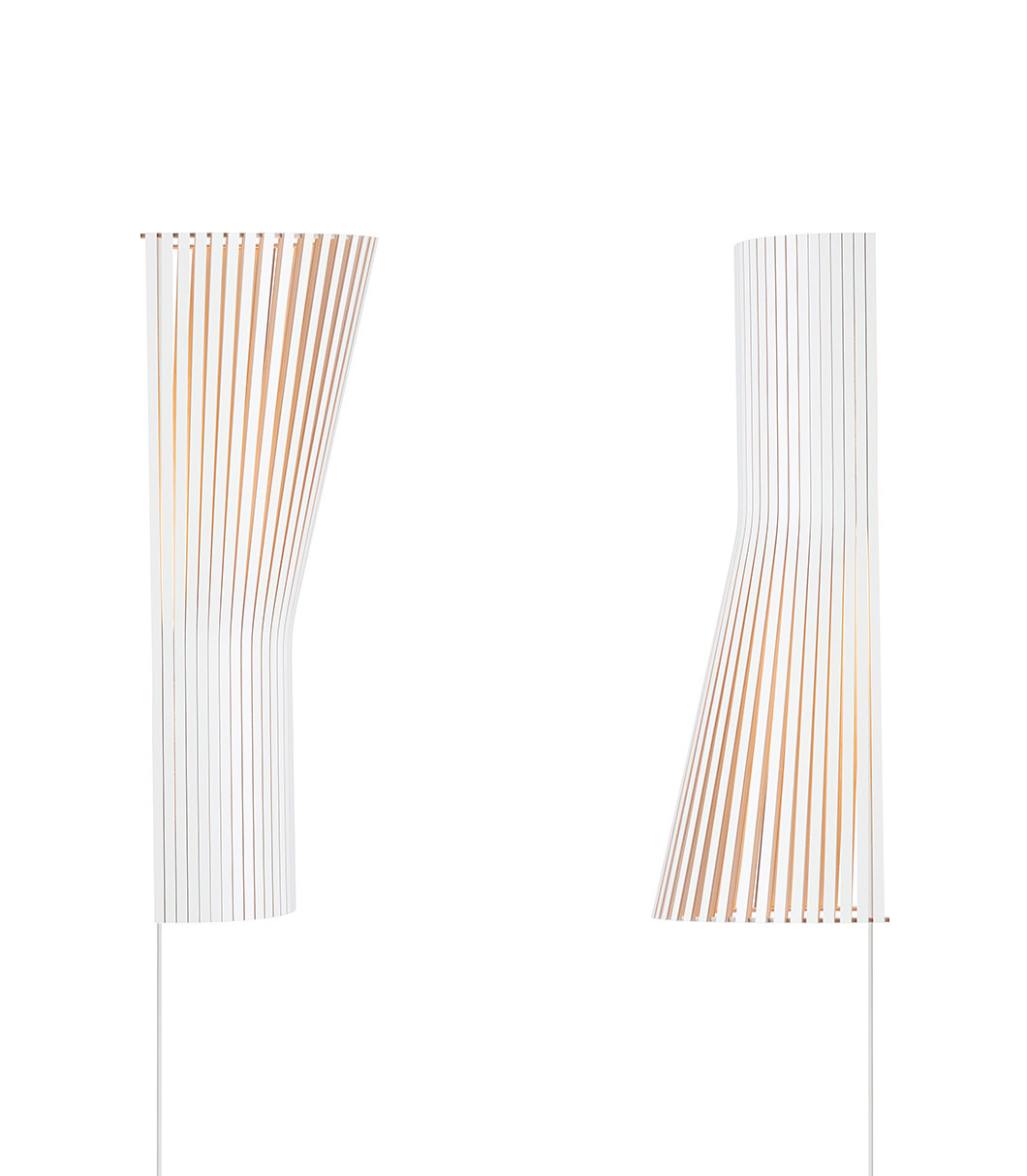

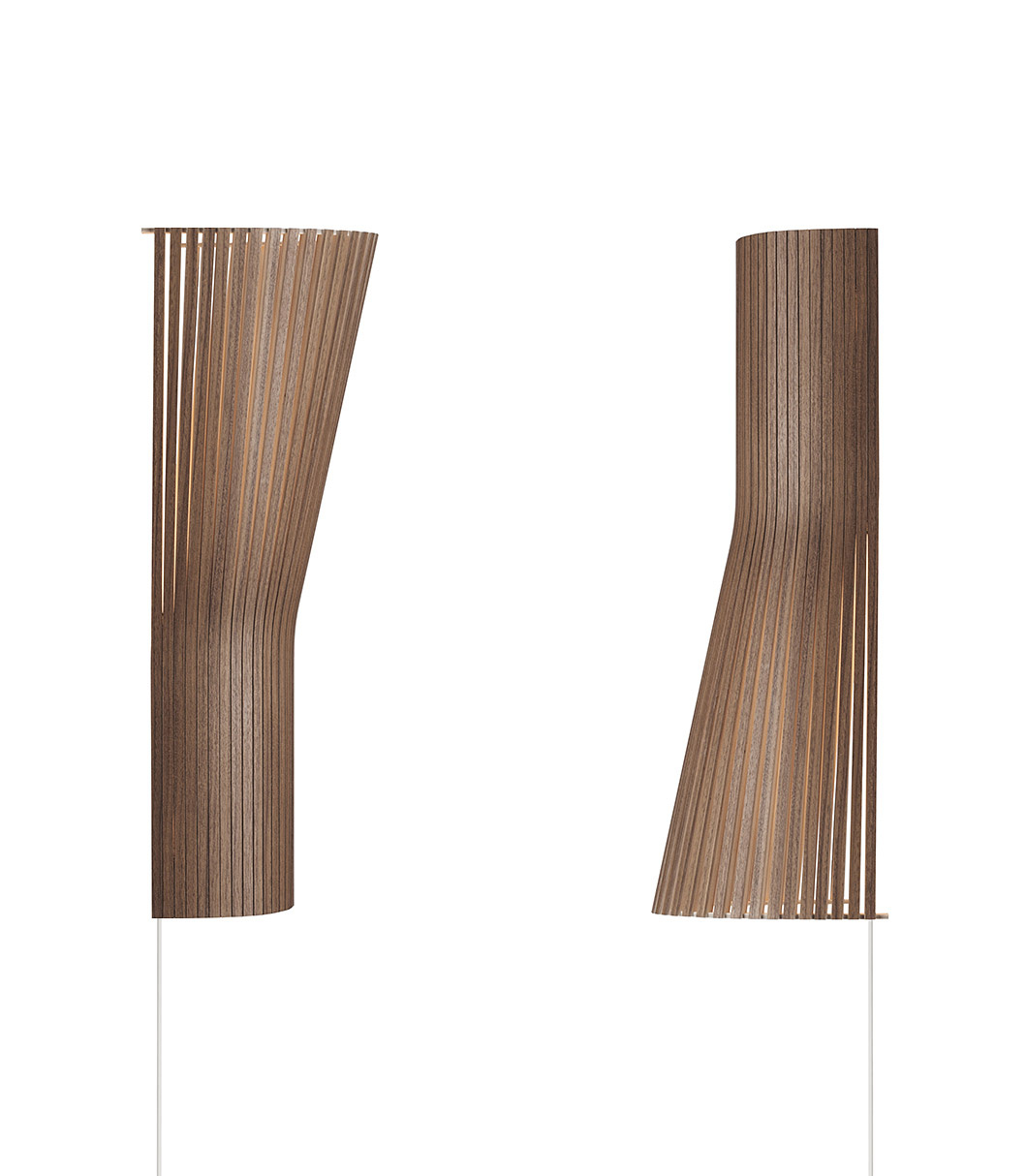

NOTE: This wall light can be placed facing either upwards or downwards.
WARNING: To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm's reach.

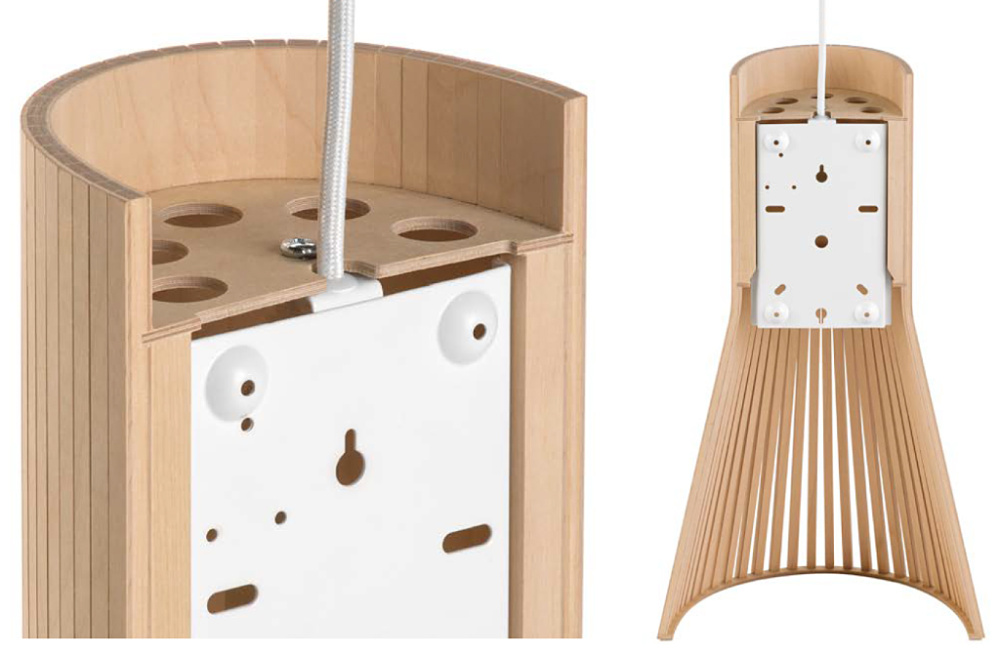

The back plate of the Secto 4230 / Secto Small 4231 wall lamp is made of powder painted steel. The lamp base is attached to the back plate. The shade has wooden rails for the plate. The plate is fastened to the shade with a top screw.

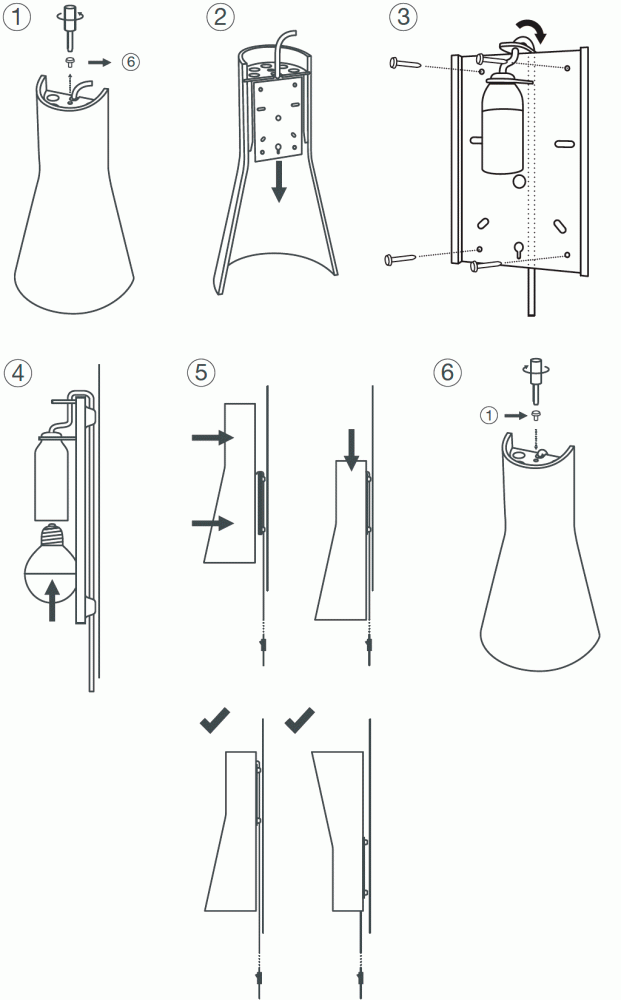

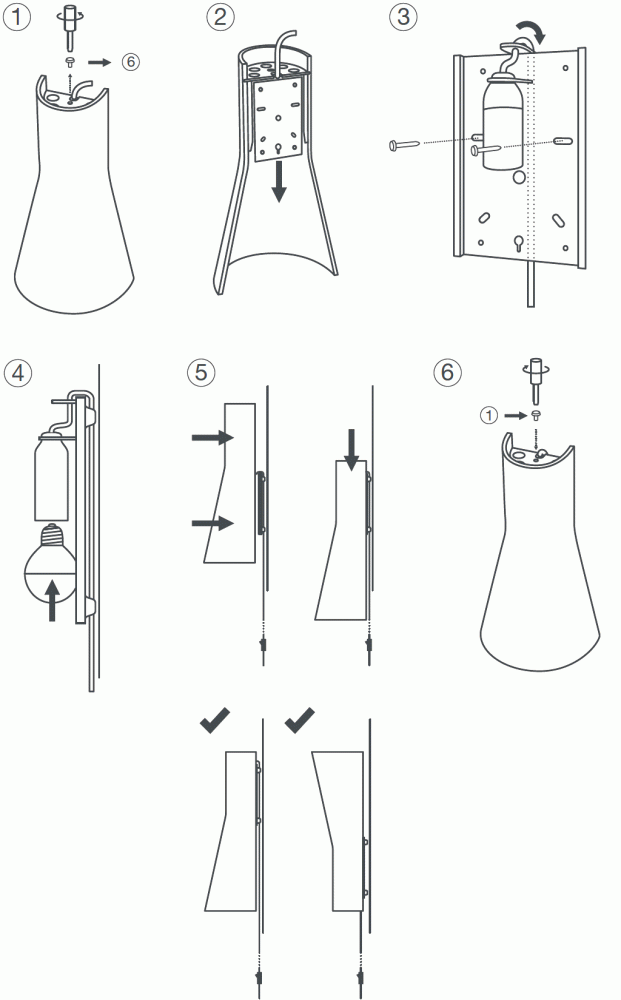

| Step 1 | Loosen the top lock screw. |
| Step 2 | Remove the wall part from the lamp shade. |
| Step 3 | Put the wall part in right place and screw tight the screws. |
| Step 4 | Place in the light bulb. |
| Step 5 | Place in the lamp shade by first pushing it inwards, and then slide it through the rails downwards. |
| Step 6 | Place in the top lock screw. |

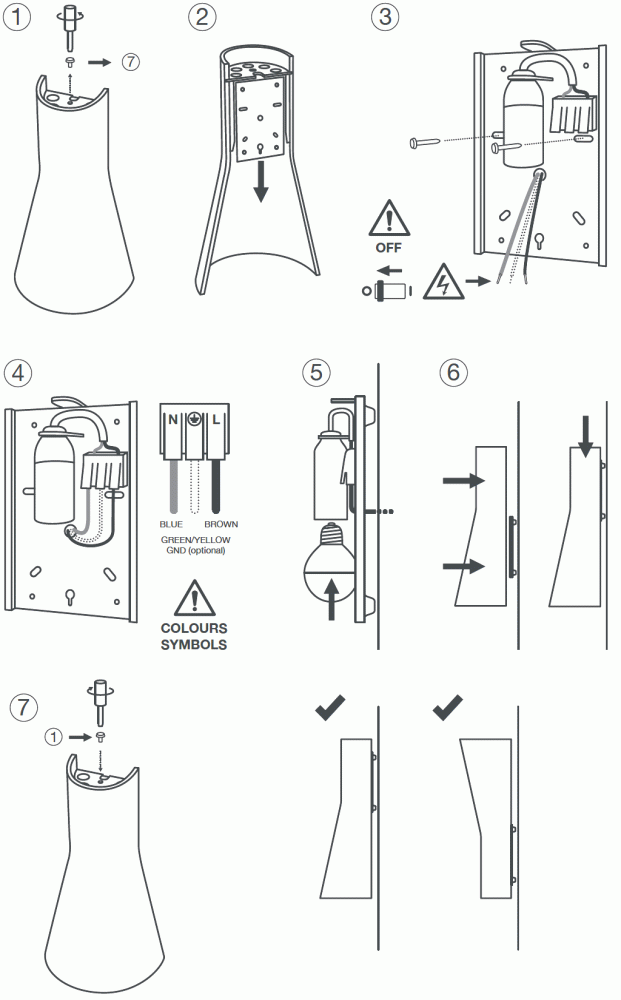

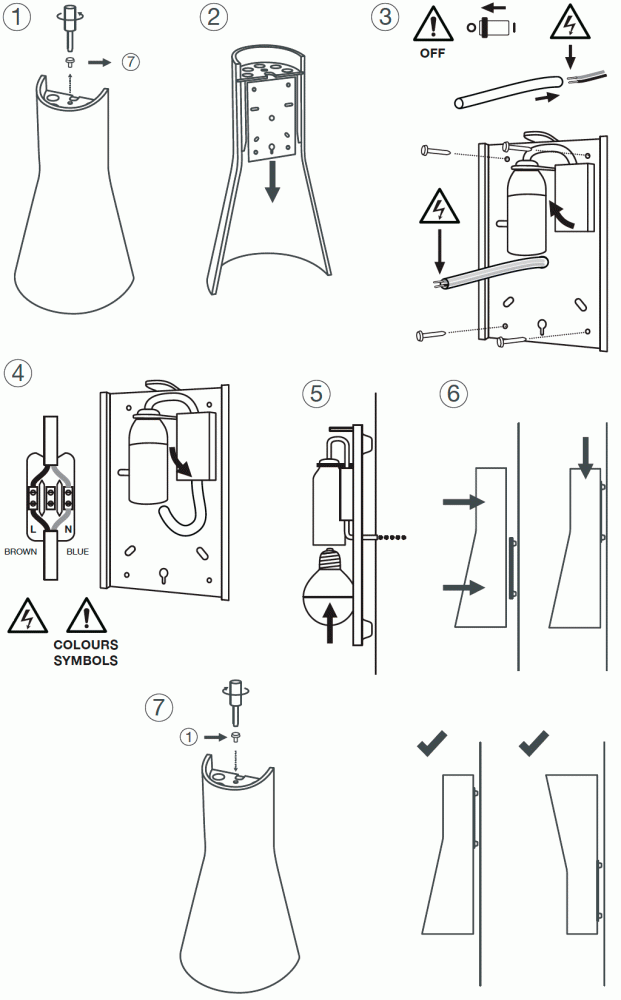

| Step 1 | Loosen the top lock screw. |
| Step 2 | Remove the wall part from the lamp shade. |
| Step 3 | Put the wall part in right place and screw tight the screws. Warning: Switch off the electricity in order to avoid electric shocks. Note: Supplementary insulation must be added to the visible section of the supply cords, i.e., up until the junction box. A protective insulating sleeve is provided with the luminaire. |
| Step 4 | Connect the wires: L=brown, N=blue. |
| Step 5 | Place in the light bulb. |
| Step 6 | Place in the lamp shade by first pushing it inwards, and then slide it through the rails downwards. |
| Step 7 | Place in the top lock screw. |
| Height | 15,5 cm / 6.1 in |
| Width | 10,5 cm / 4.1 in |
The wall lamp can be installed with the cone part upwards or downwards. When the cone part is downwards the cable runs down between the plate and the wall.

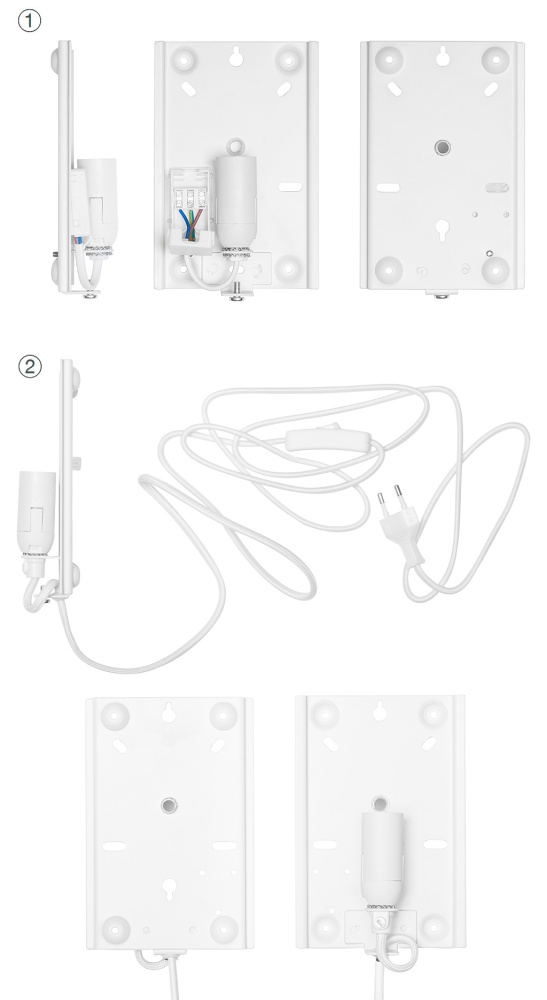

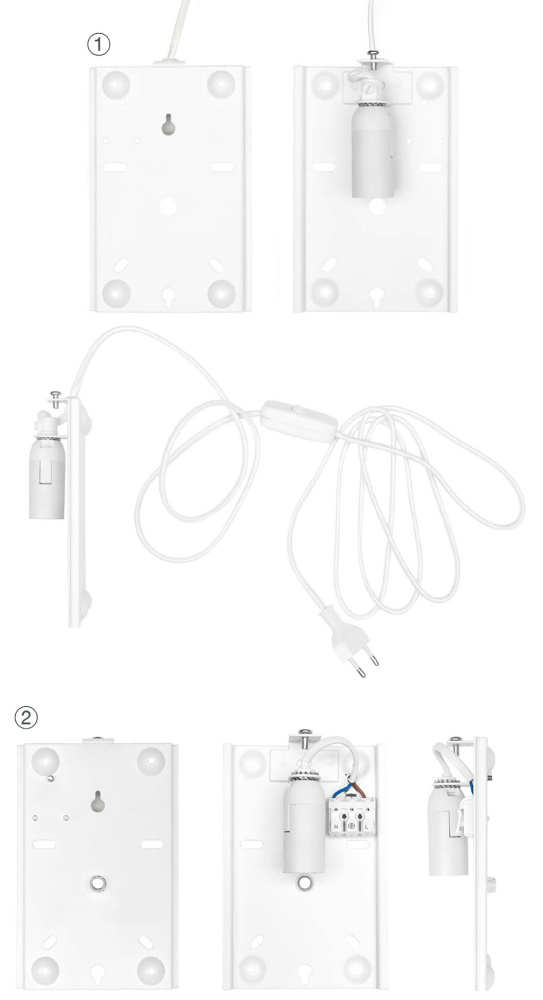

| Pic 1 | The standard version comes with a cable, a switch and a plug. |
| Pic 2 | The wall mount version (by special order) can be mounted directly to the cables coming out of the wall socket by an electriciant. |

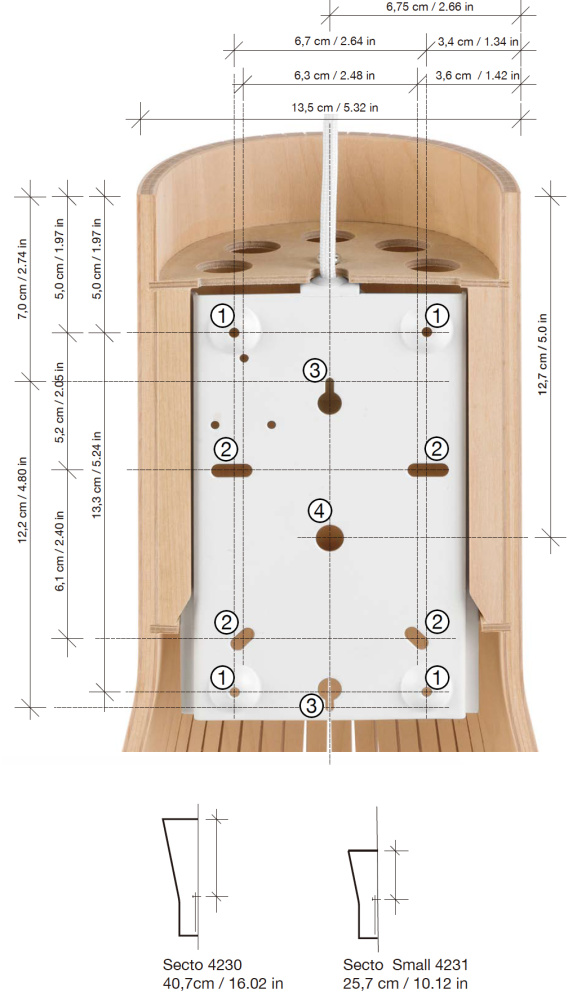

The back plate is screwed (screws not incl.) to the wall. The wooden shade is then slid onto the plate along the wooden rails which are on the long sides of the shade. Alternatively the wall lamp can be hung to a wall hook (not incl.) after the plate is attached to the shade.
| Hole 1 | To raise the lamp of the wall and a possible means to secure the fixture to the wall. |
| Hole 2 | For securing the lamp to a wall socket. |
| Hole 3 | For hook suspension. |
| Hole 4 | For treading the wall mount version's cables through the plate. Screws and hooks for securing the fixture are not included. |
Please note that the measurements are approximates as all the shades are unique.
Installing upwards: top edge to the hook suspension hole (3.)

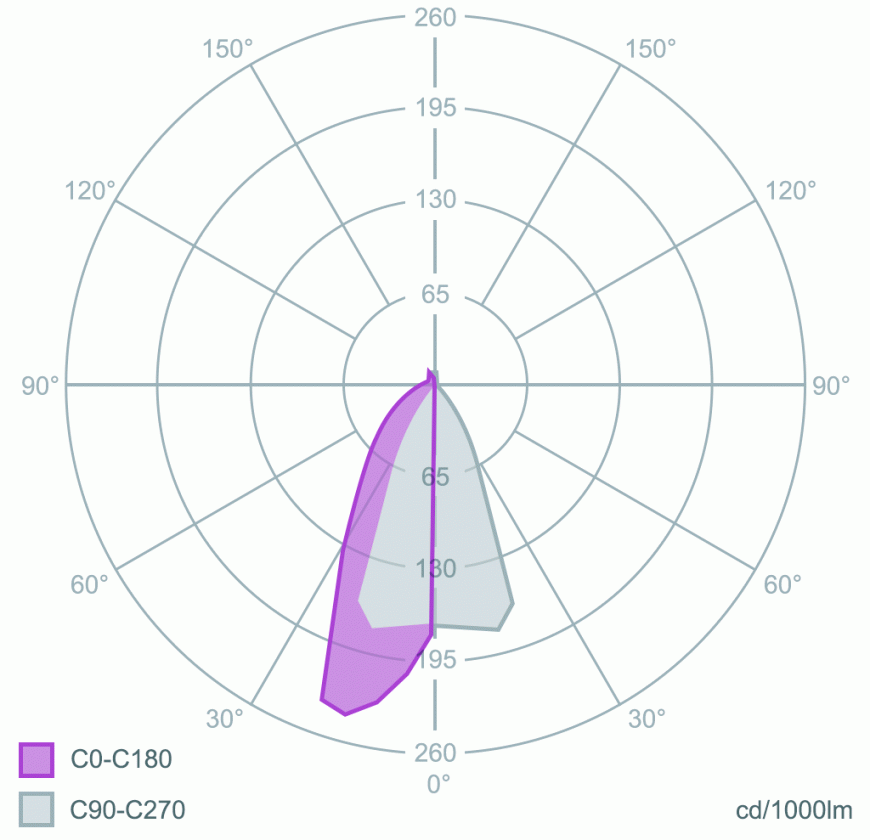

Light distribution curve of Secto Small 4231. Light distribution is shown in two perpendicular vertical planes (C-planes).
