The perfect solution for any corner that deserves its full glory. The warm beam of light can be directed either upwards or downwards. Designed by architect Seppo Koho, launched in 2022.
Colour:
Get it here!
Secto Small 4237 corner lamp

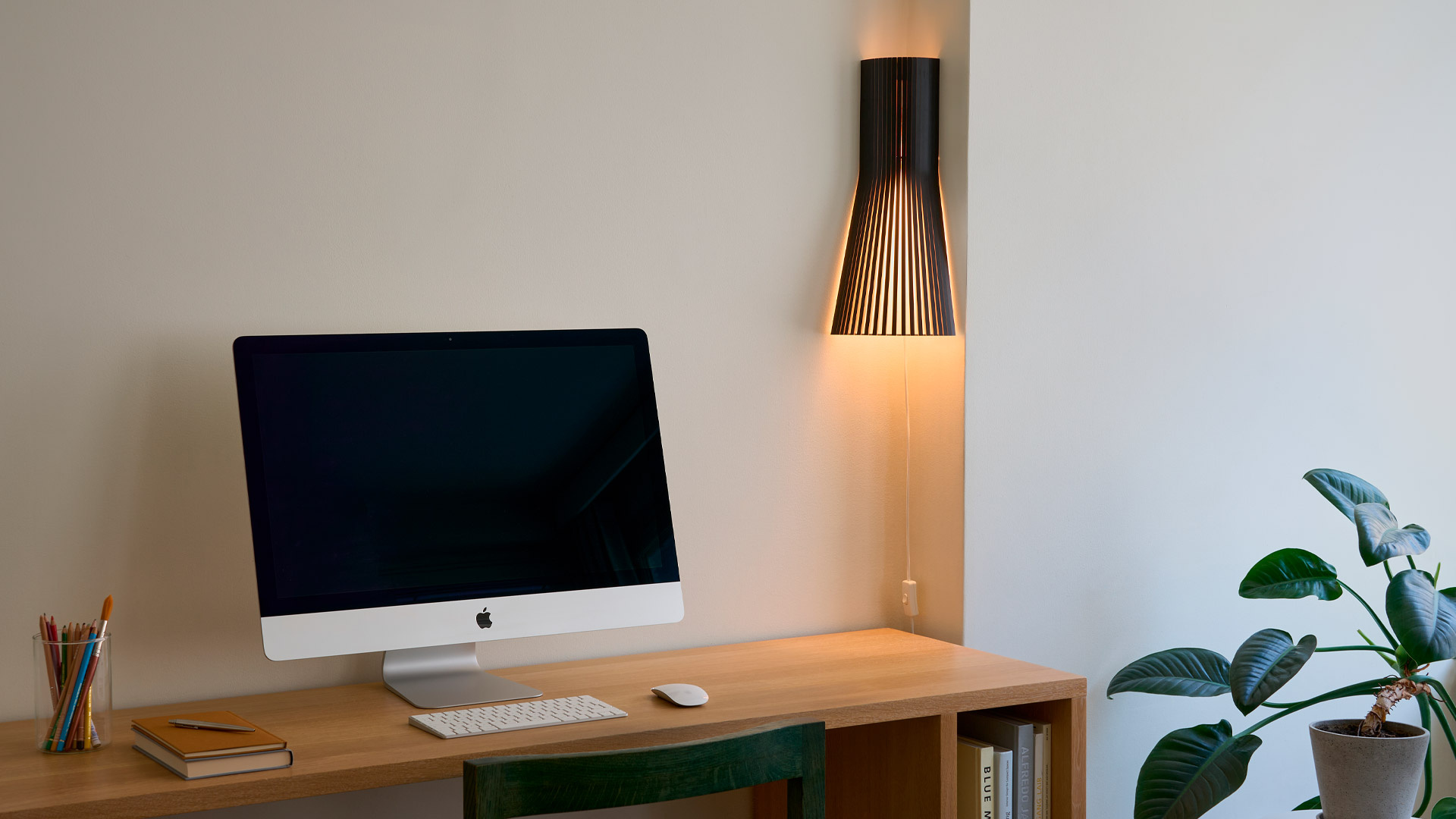

Secto Small 4237. Private residence. Helsinki, Finland. Photo by Antti Laine.

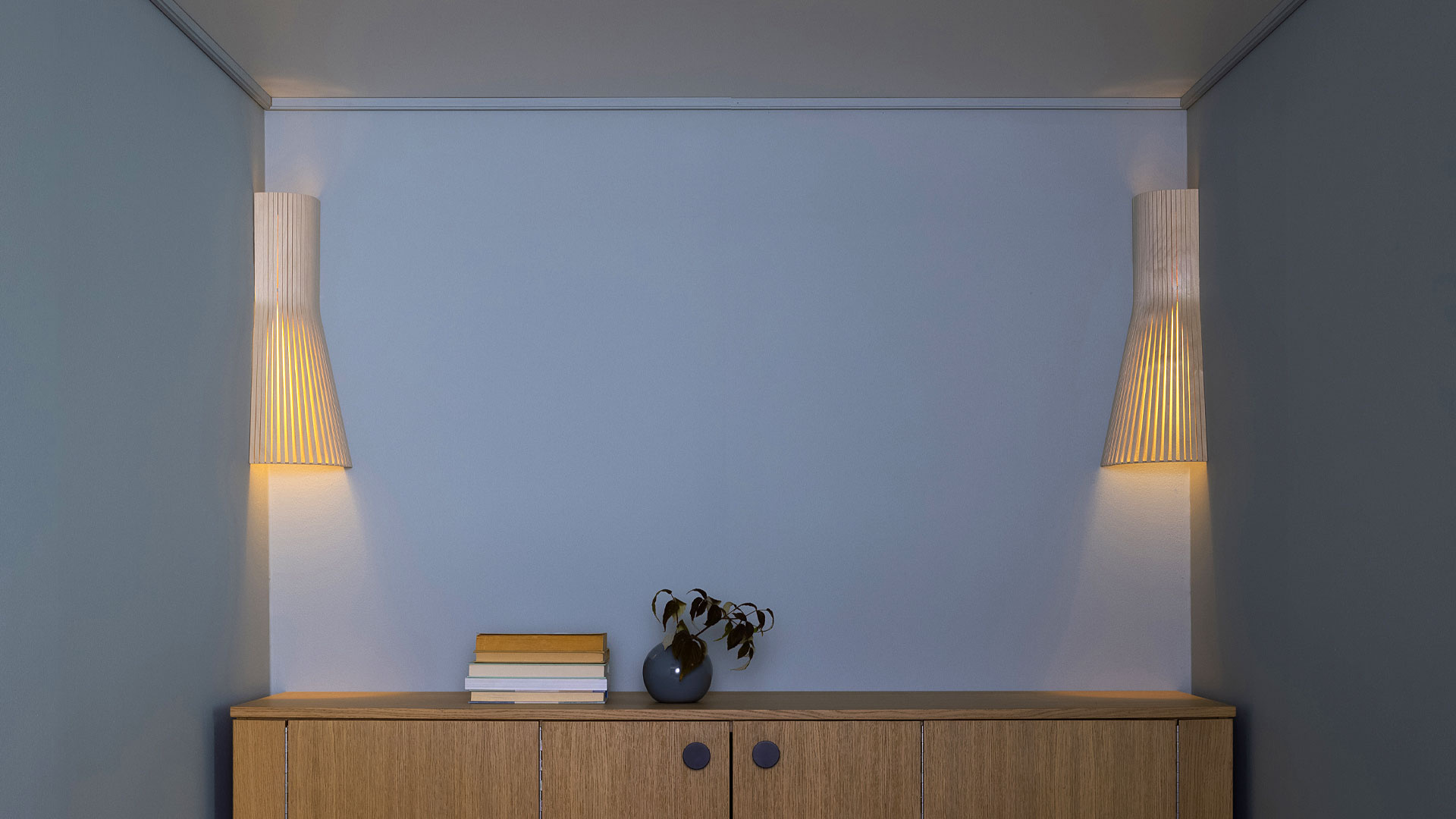

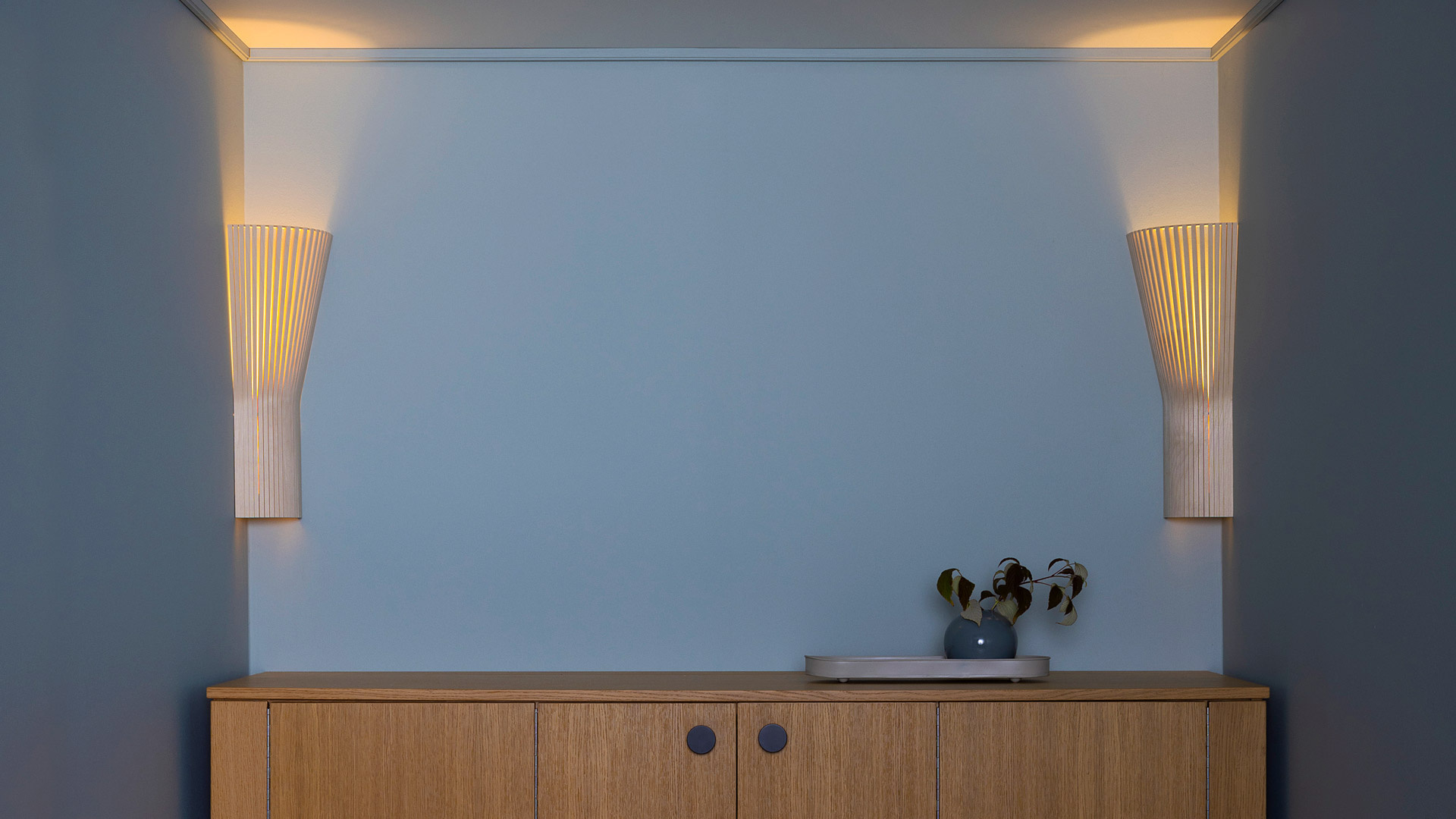

Secto Small 4237. Studio interior.
Secto Small 4237. Studio interior.
Secto Small 4237. Studio interior.
More images of the Secto Small 4237 corner lamp here
Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen. The wood provides a soft luminosity for atmosphere and appeal.
| Shade | Back plate | Cable |
| Natural birch | White | White |
| White laminated | White | White |
| Black laminated | White | White |
| Walnut veneer | White | White |
| Material | Form pressed birch slats, powder coated steel back plate |

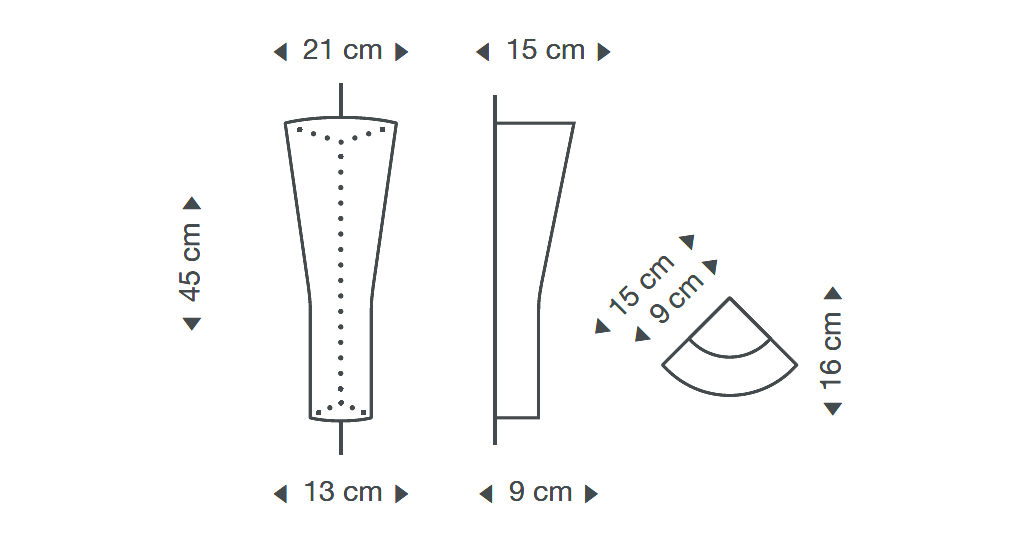

| Dimensions | Height 45 cm Depth 10–16 cm Side 9–15 cm Width 13–21 cm Weight 0,6 kg Package 17 × 17 × 47 cm, 1,1 kg |
| Voltage | 220-240VAC 50Hz |
| Light source | E14 base, LED max 20 W. Comes with a LED bulb (Airam Pro LED, E14, 6 W, 470 lumen, 3000 K, pure white, dimmable, may vary). The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. This product is supplied with an example bulb of energy efficiency class E. |
| Dimming | Details |
| DALI | Attachable to DALI systems with a separate DALI-compatible trailing edge (phase cut off) type dimmer. Due to great variation in DALI systems, Secto Design does not supply DALI-dimmers. Please contact your local electrician. |
| Cable | 240 cm, textile cable, switch on the cable. Also available with direct wall mounting. |
| Classification | Ingress Protection IP20, IEC Protection Class II, CE marking |
| Installation | Separate instructions on the website. |
| Maintenance | Wipe dust regularly. To remove fresh stains wipe with a slightly damp cloth. |

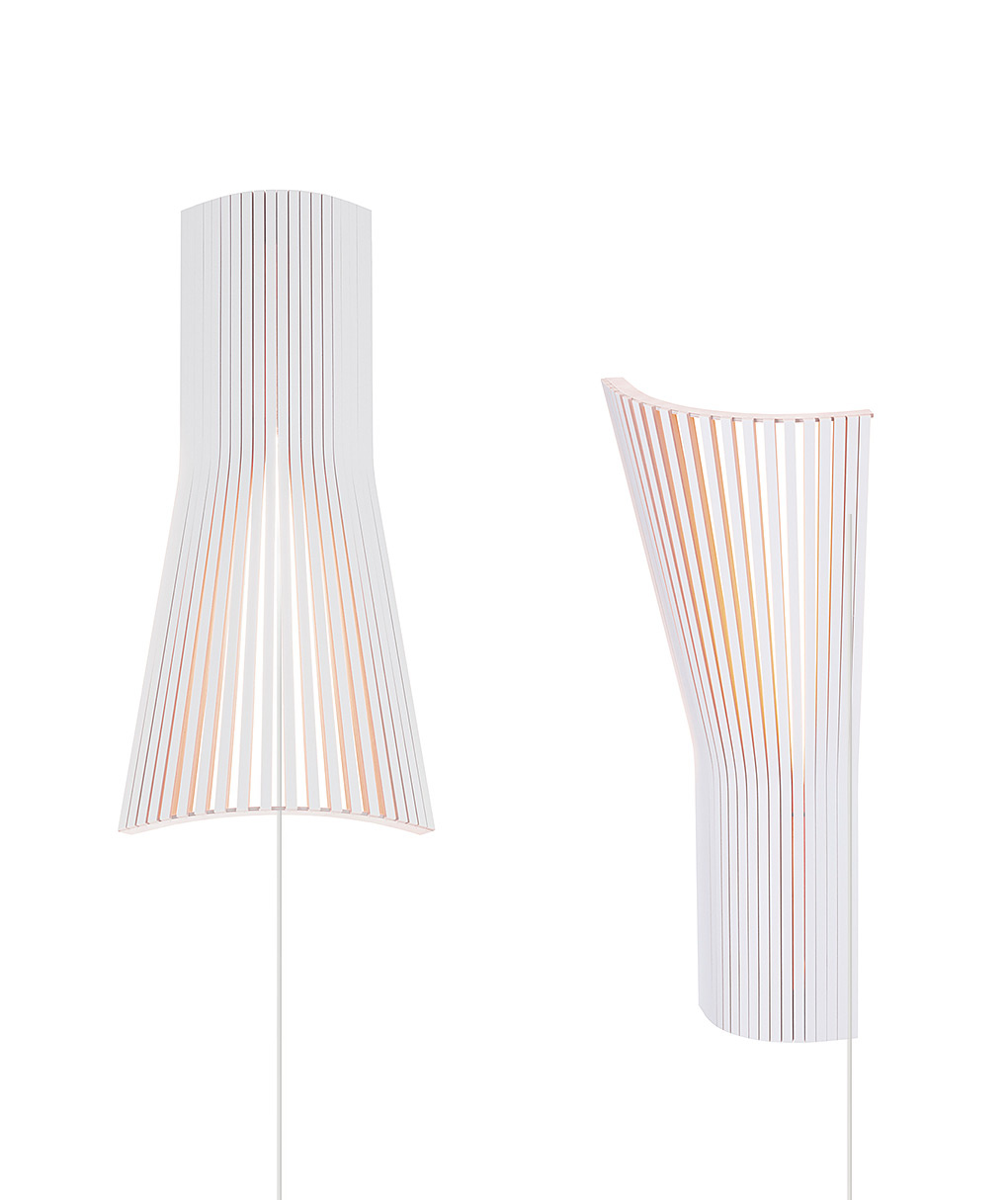

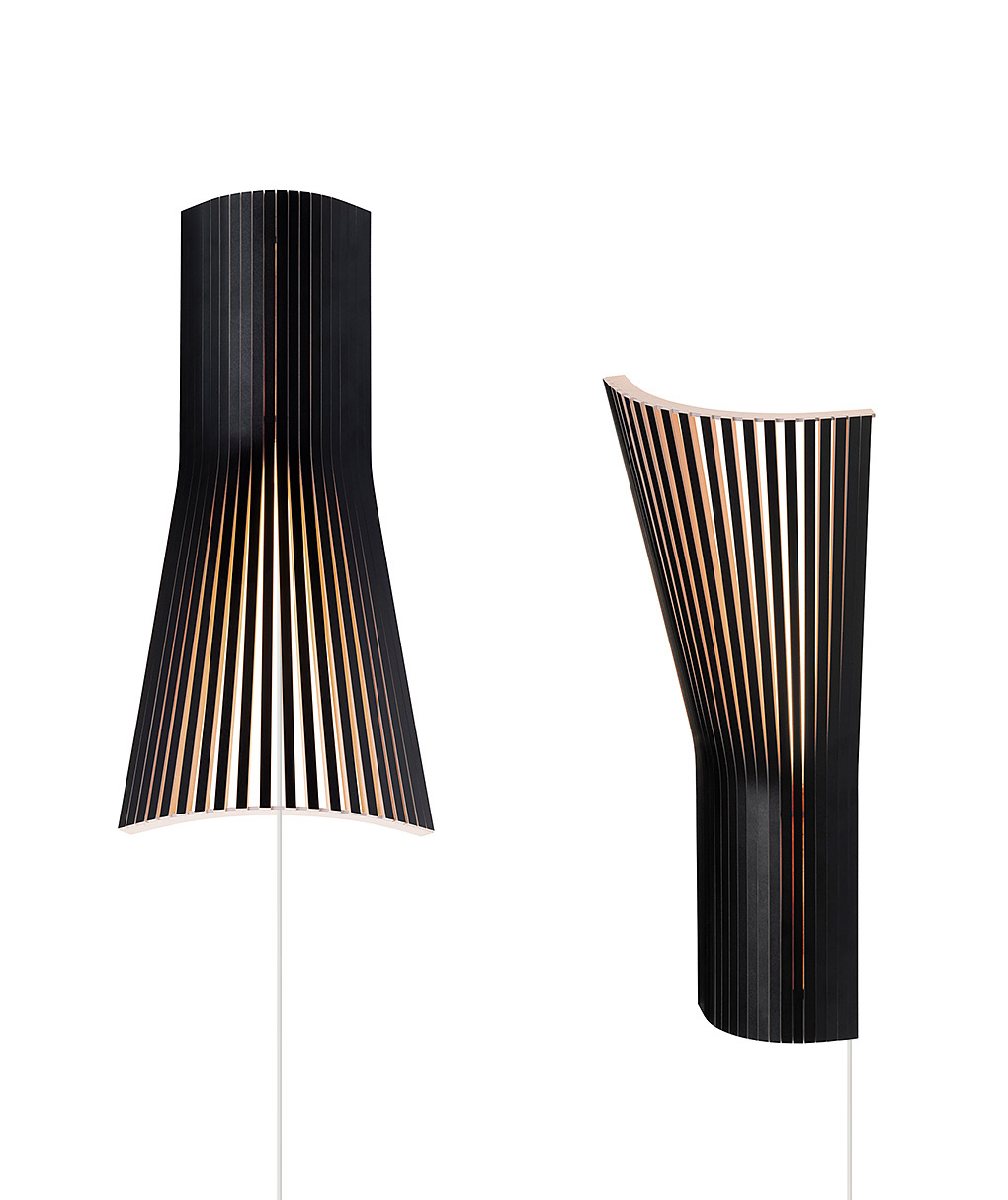

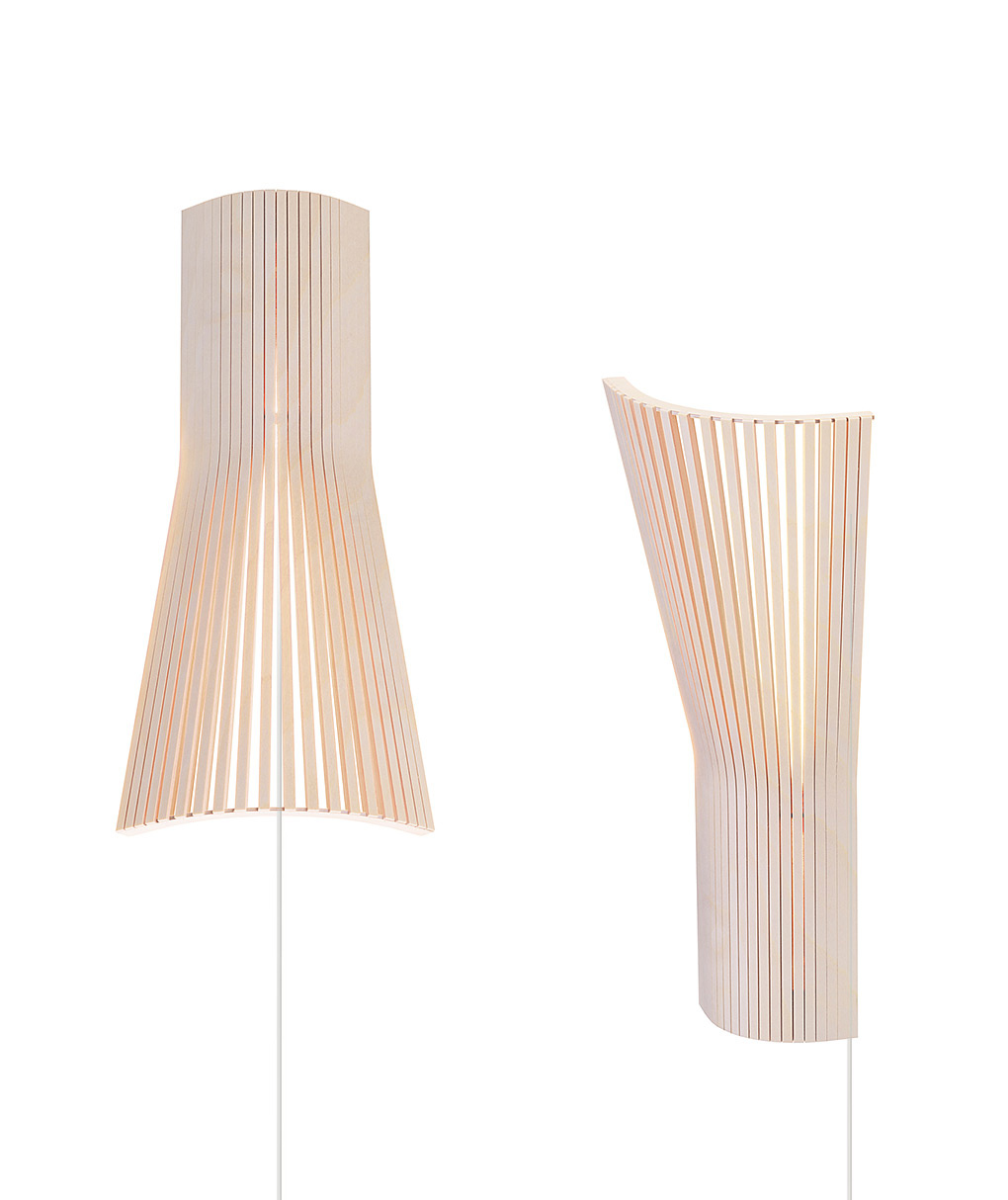

NOTE: This wall light can be placed facing either upwards or downwards.
WARNING: To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm's reach.

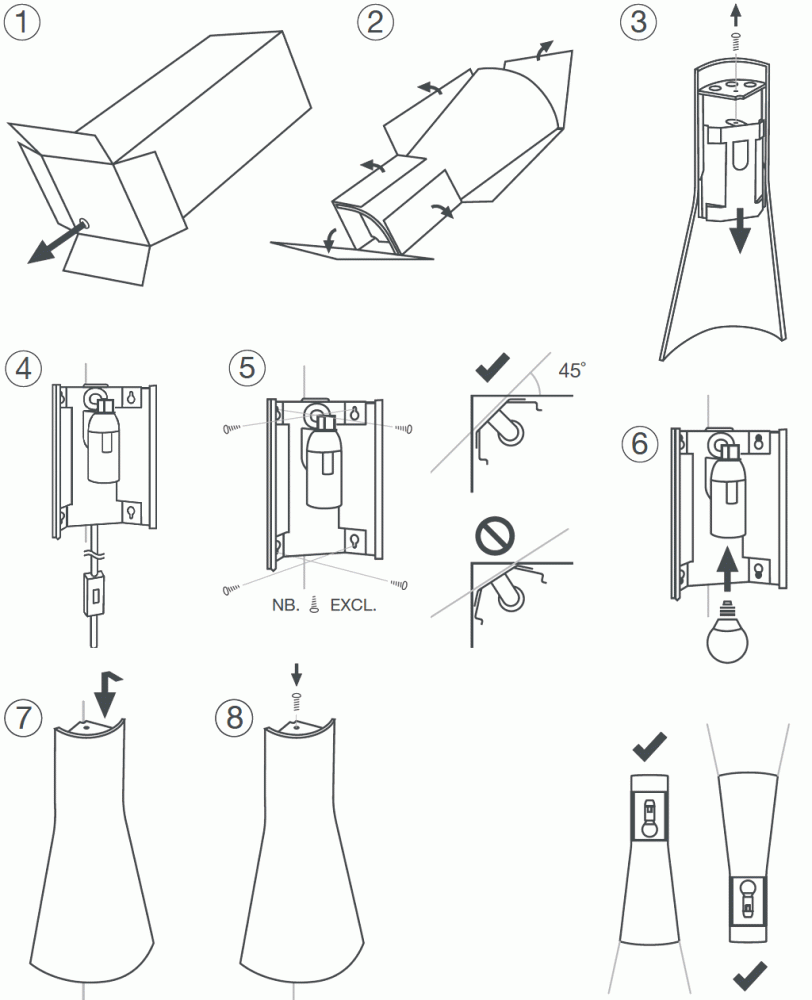

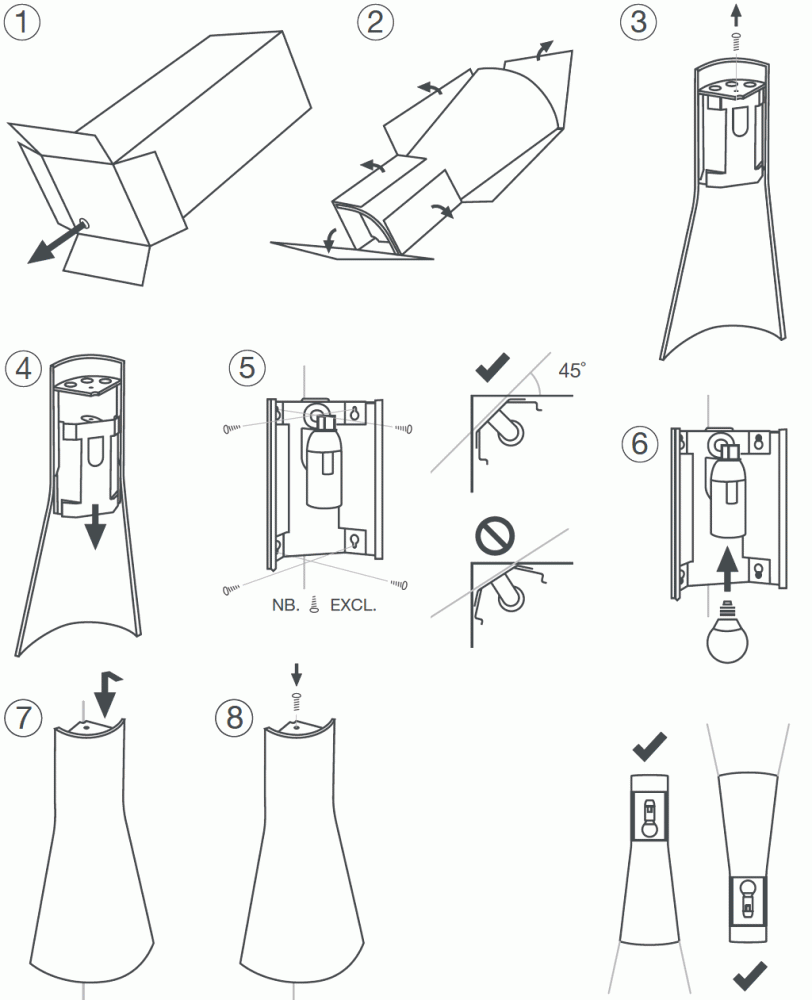

| Step 1 | Lift up the lamp body from the package by holding it from the sheltering structure around it. |
| Step 2 | Remove the top sheltering element and the bottom part of the package. |
| Step 3 | Loosen the top lock screw and remove the wall part from the lamp shade. |
| Step 4 | Put the wall part in right place. |
| Step 5 | Screw tight all of the screws. |
| Step 6 | Place in the light bulb. |
| Step 7 | Place in the lamp shade by first pushing it inwards, and then slide it through the rails downwards. |
| Step 8 | Place in the top lock screw. |

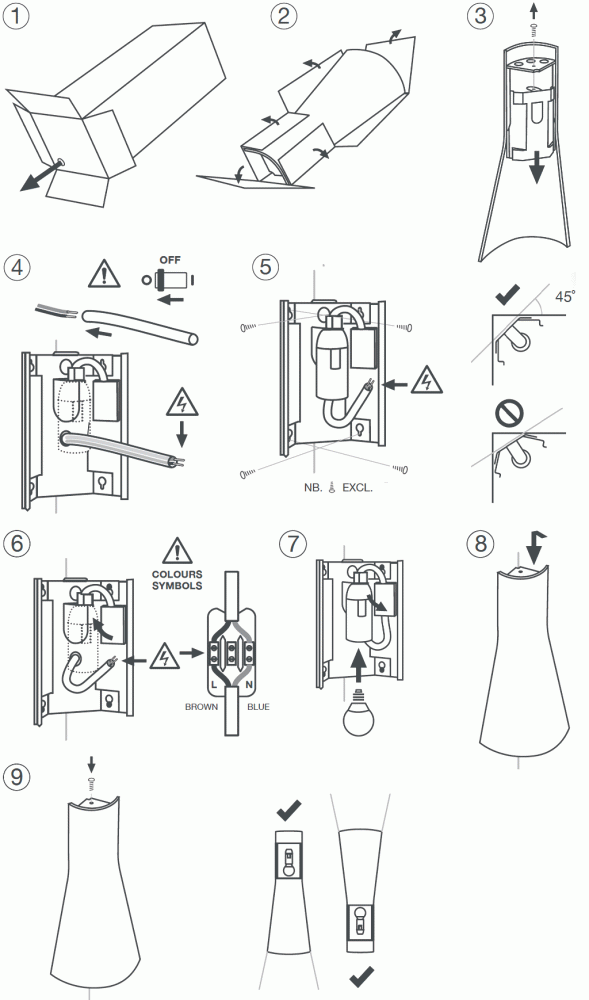

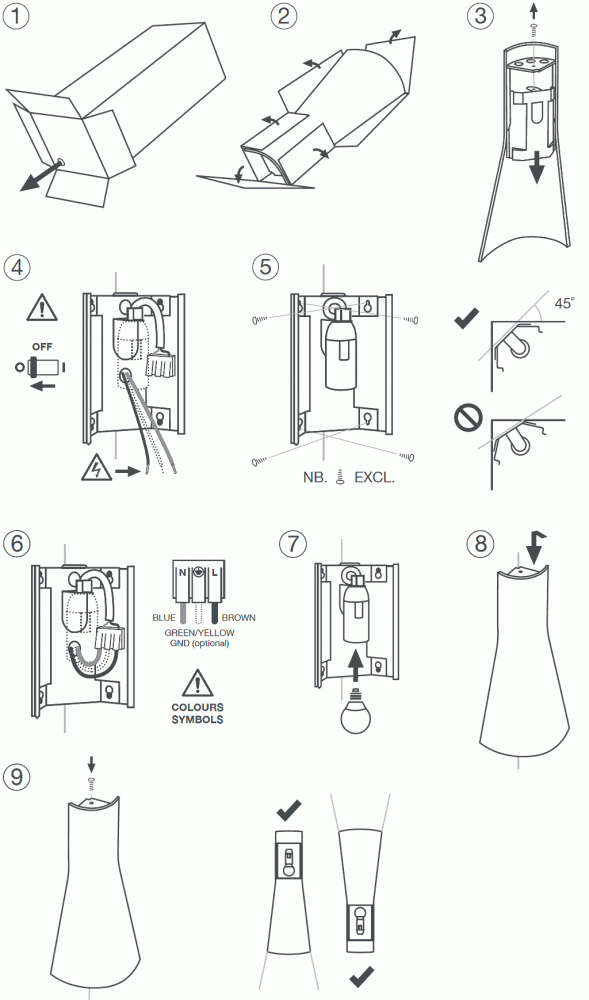

| Step 1 | Lift up the lamp body from the package by holding it from the sheltering structure around it. |
| Step 2 | Remove the top sheltering element and the bottom part of the package. |
| Step 3 | Loosen the top lock screw and remove the wall part from the lamp shade. |
| Step 4 | Put the wall part in right place. Warning: Switch off the electricity in order to avoid electric shocks. Note: Supplementary insulation must be added to the visible section of the supply cords, i.e., up until the junction box. A protective insulating sleeve is provided with the luminaire. |
| Step 5 | Screw tight all of the screws. |
| Step 6 | Connect the wires: L=brown, N=blue. |
| Step 7 | Place in the light bulb. |
| Step 8 | Place in the lamp shade by first pushing it inwards, and then slide it through the rails downwards. |
| Step 9 | Place in the top lock screw. |

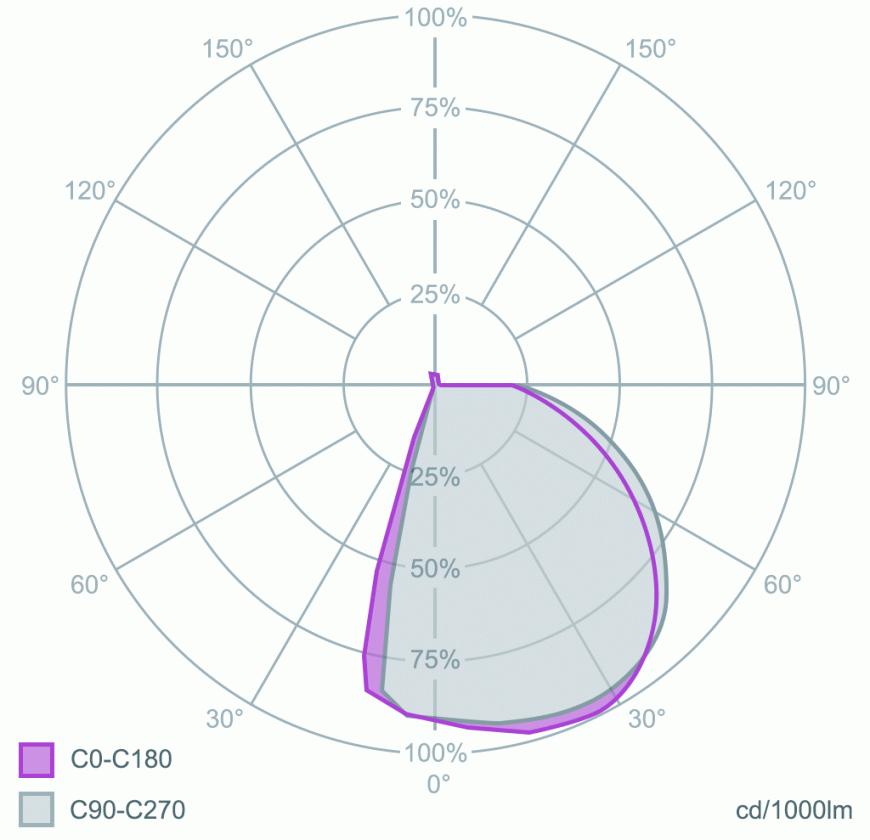

Light distribution curve of Secto Small 4237. Polar curve of the angular Luminous Intesity distribution at two perpendicular C planes and at C plane with maximum Luminous Intesity.
