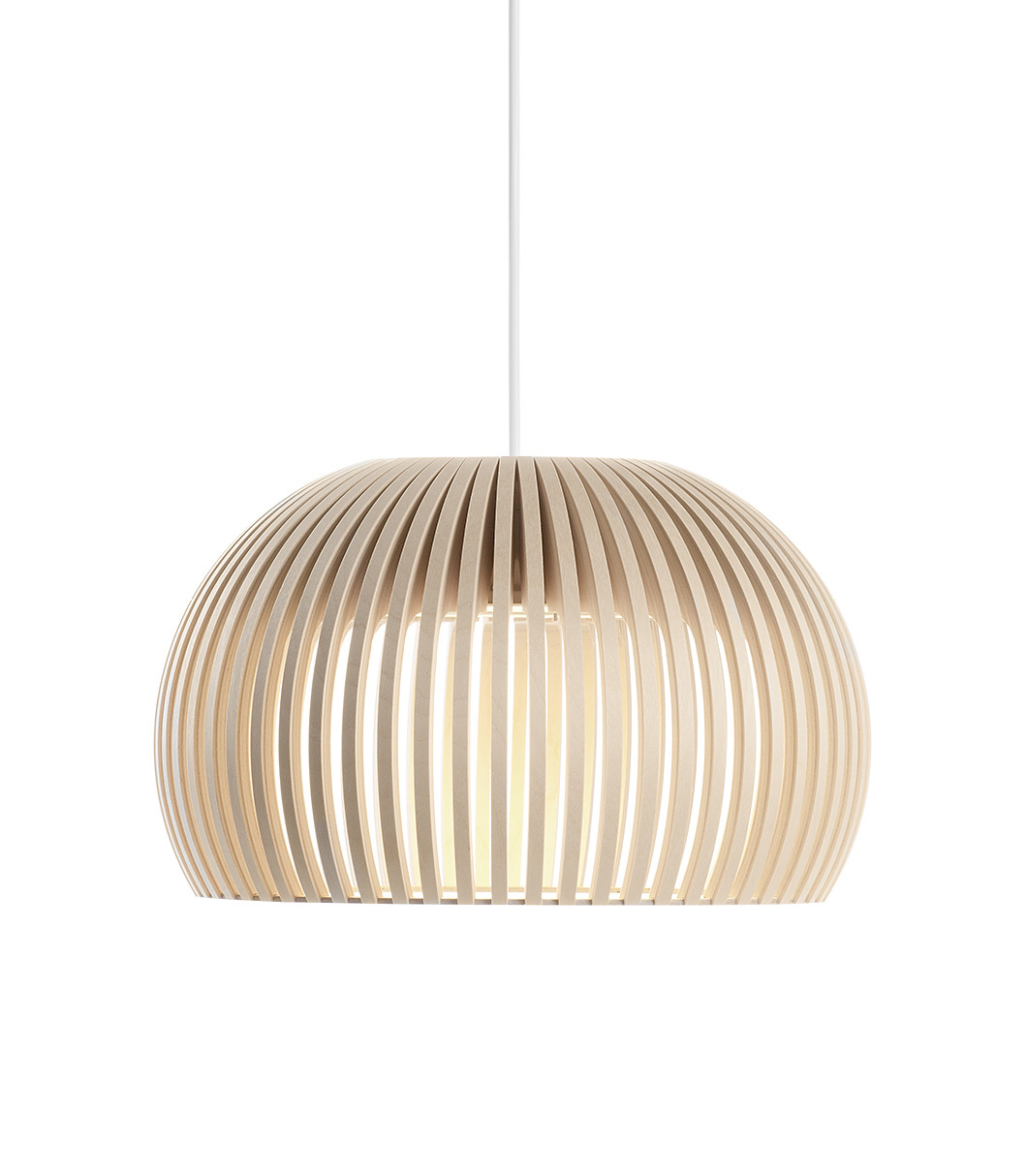

Atto 5000 pendant lamp is available in natural birch

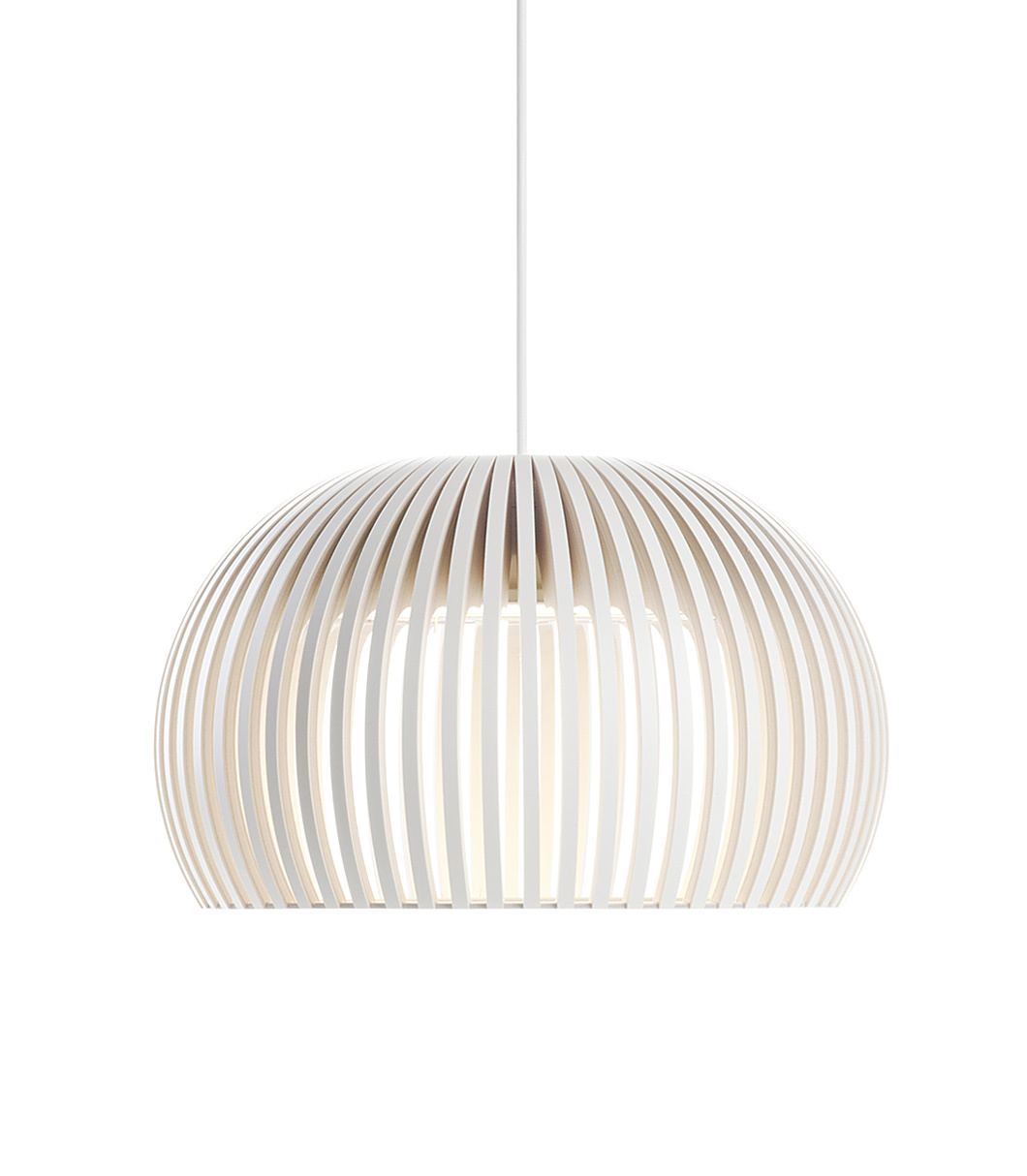

Atto 5000 pendant lamp is available in white laminated

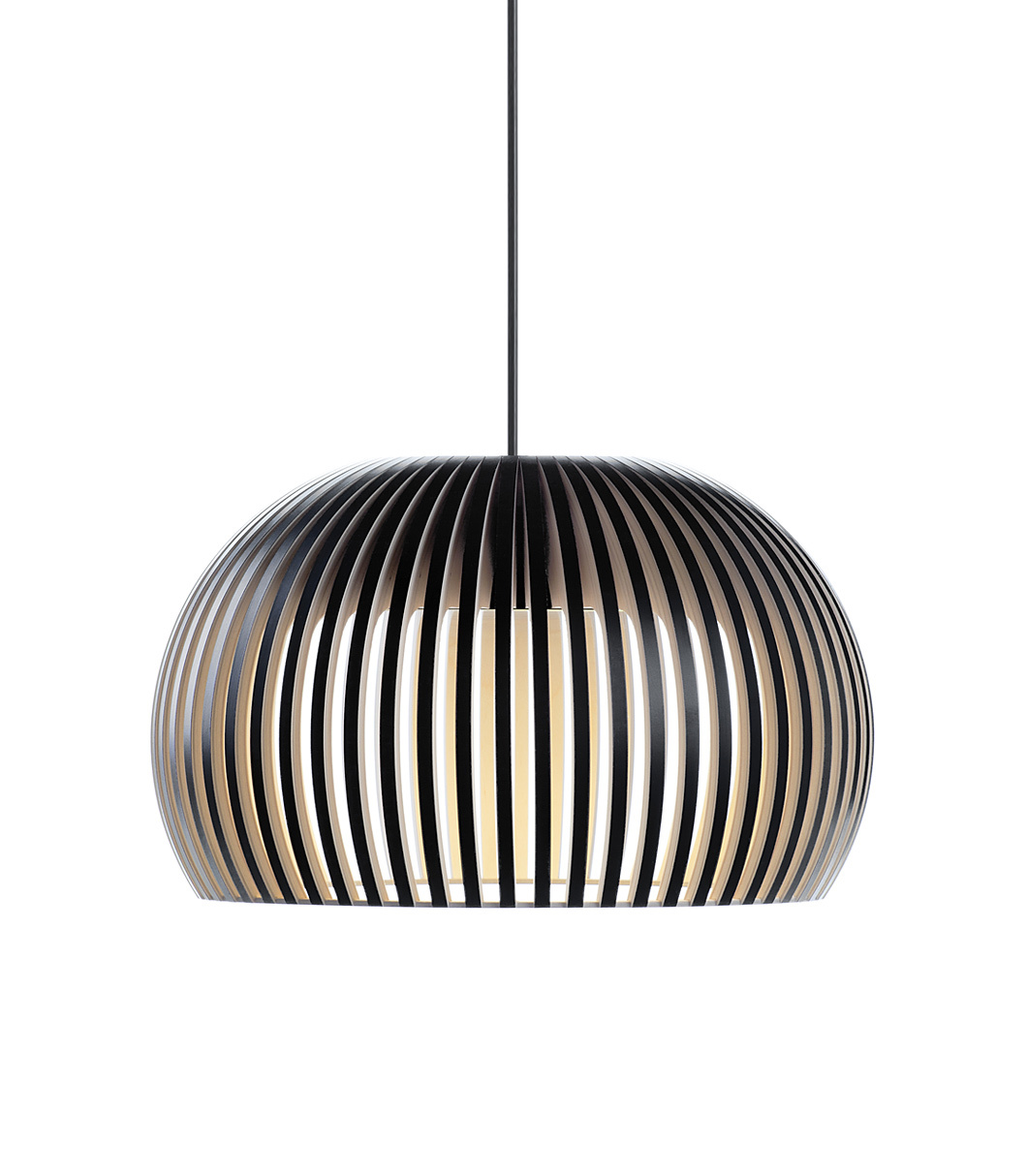

Atto 5000 pendant lamp is available in black laminated

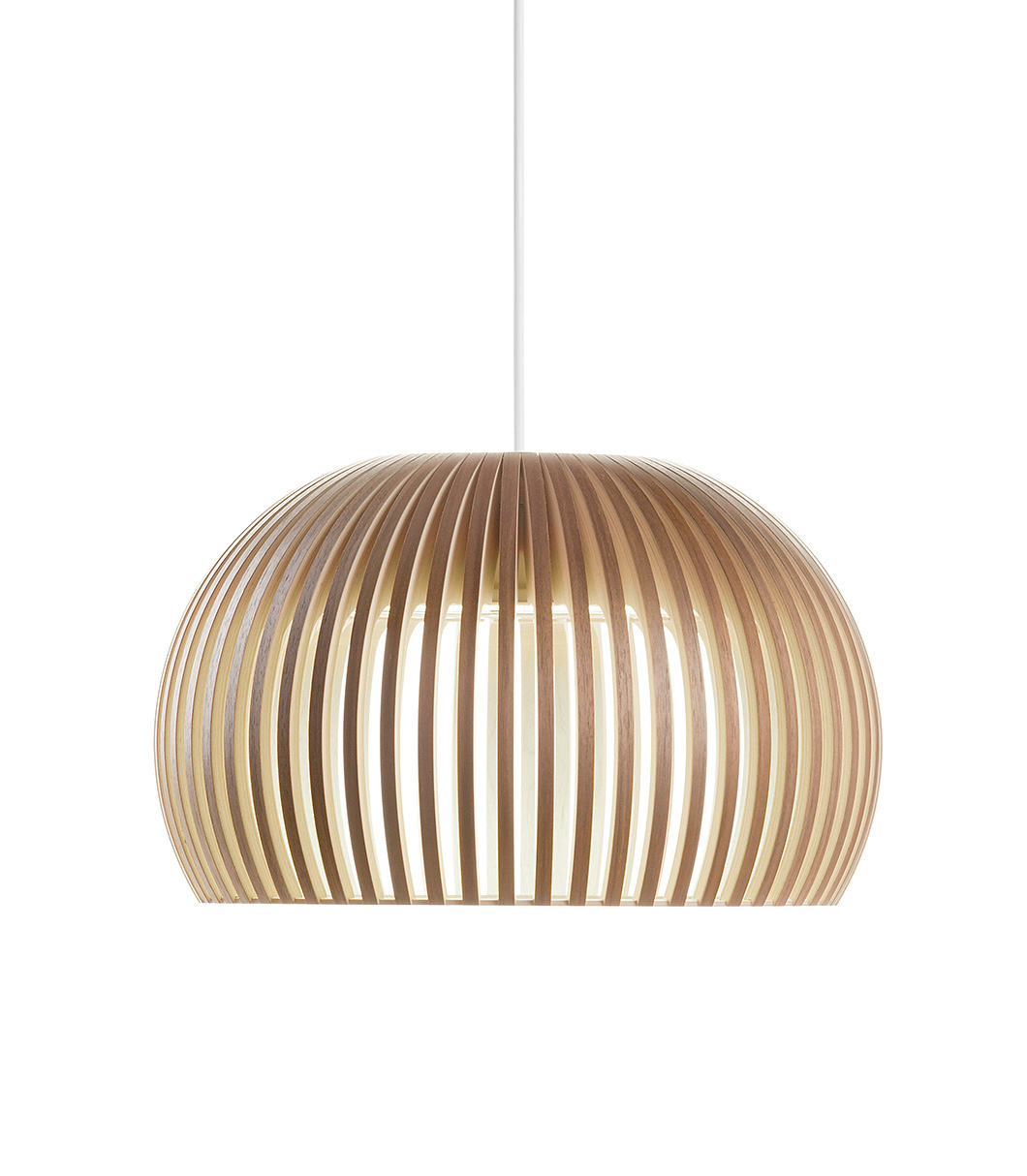

Atto 5000 pendant lamp is available in walnut veneer

Atto 5000 pendant lamp:
Handcrafted by masters

The Atto 5000 is compact yet sophisticated. A true achievement from our talented carpenters.

Colour:

Get it here!

Secto Design Atto 5000 - Handcrafted by masters

Atto 5000 pendant lamp

Atto 5000 pendant lamp

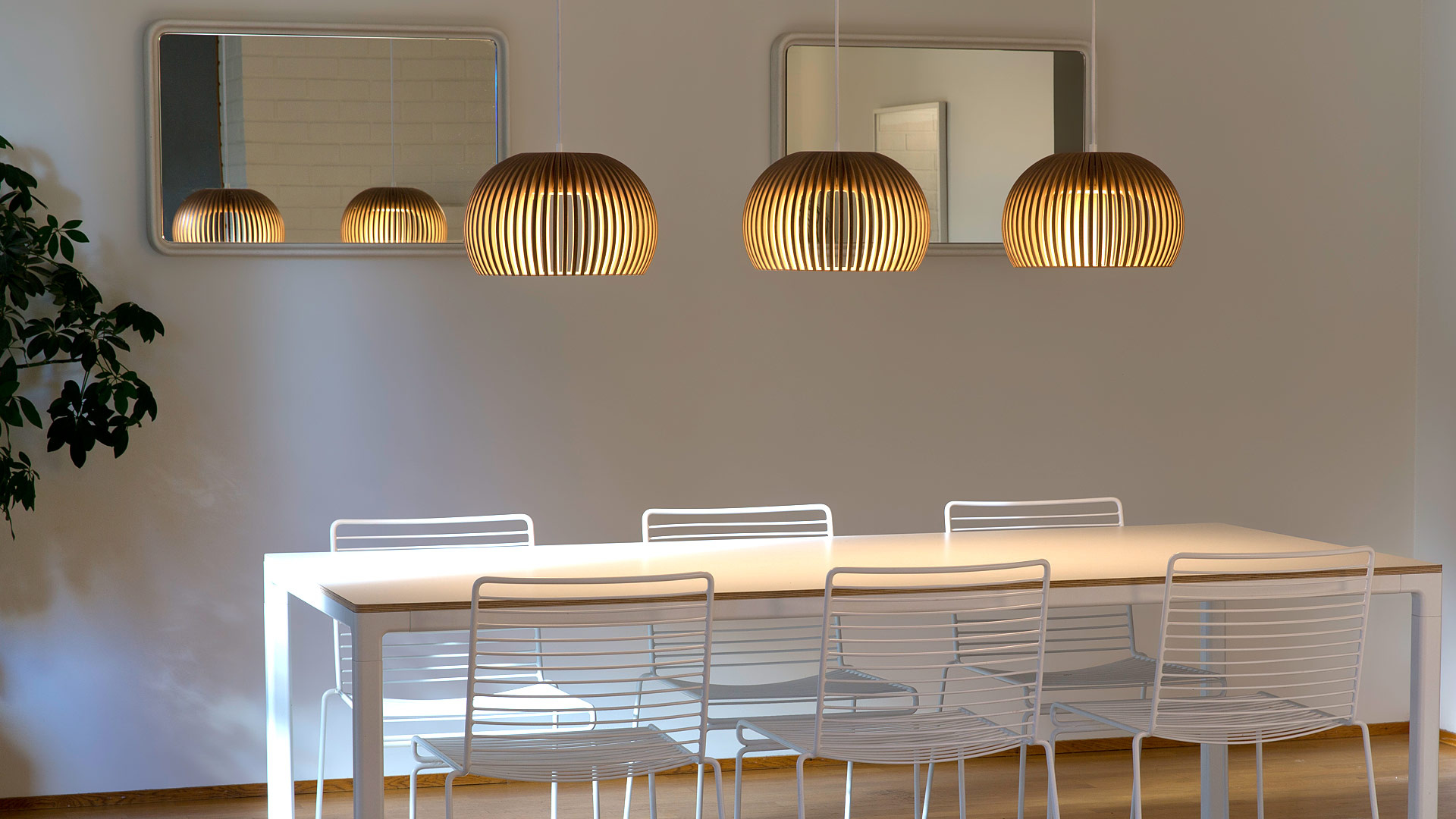

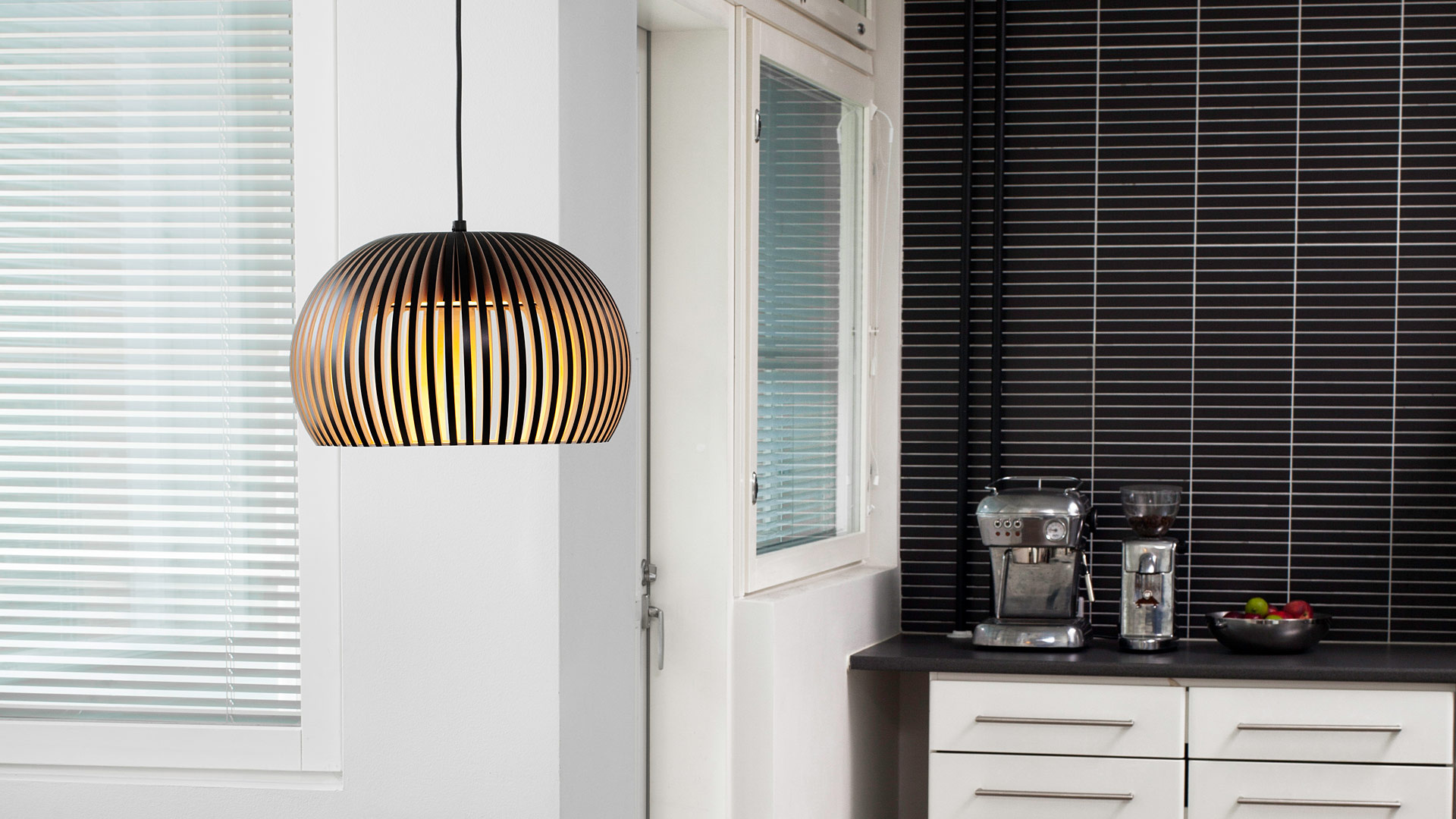

Atto 5000. Private Residence, Helsinki, Finland. Photo by Uzi Varon

Atto 5000. Private Residence, Helsinki, Finland. Photo by Uzi Varon

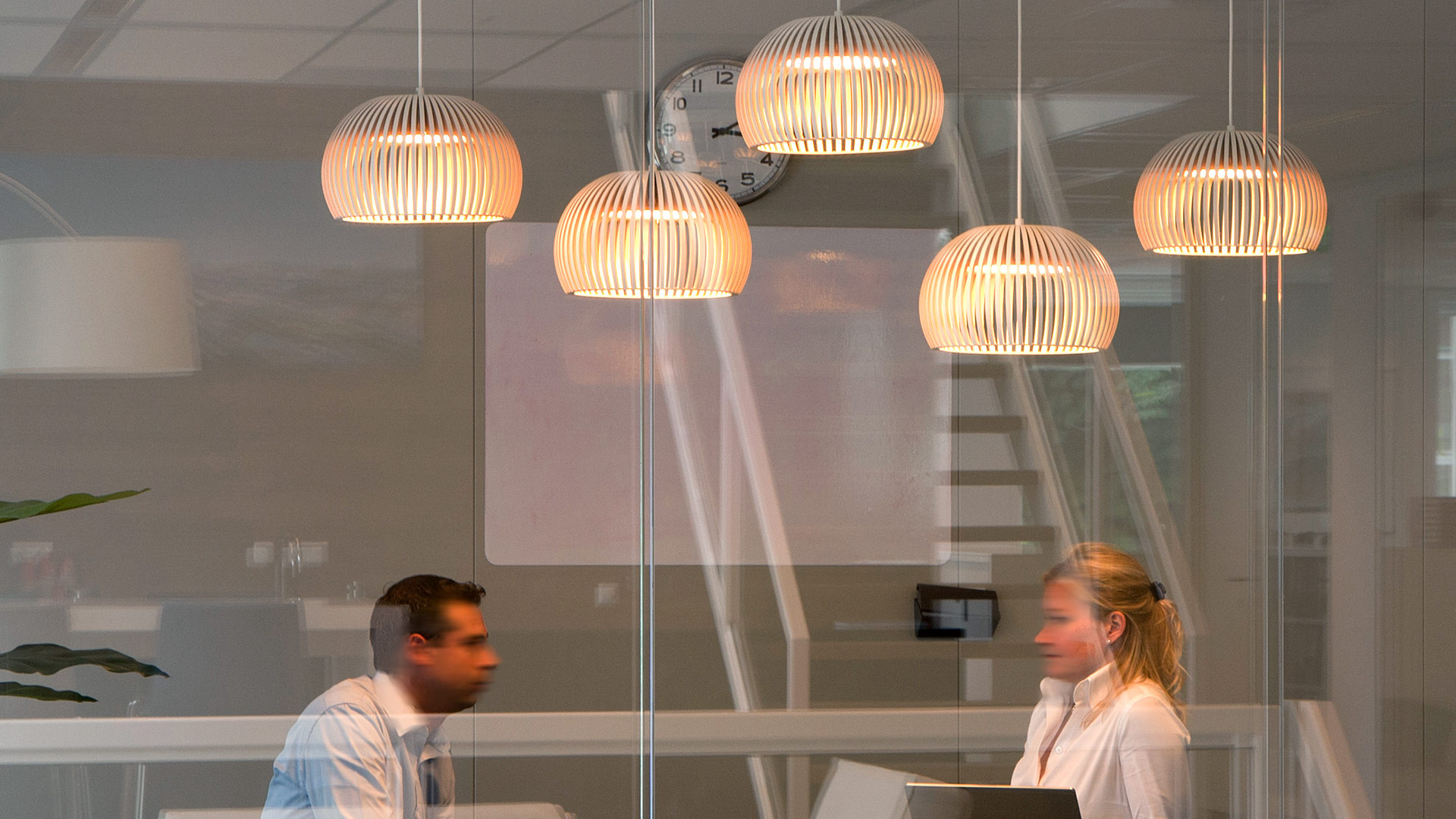

Atto 5000. Cinop.’s-Hertogenbosch meeting room, The Netherlands. Photo by Ellen Swaan

More images of the Atto 5000 pendant lamp here

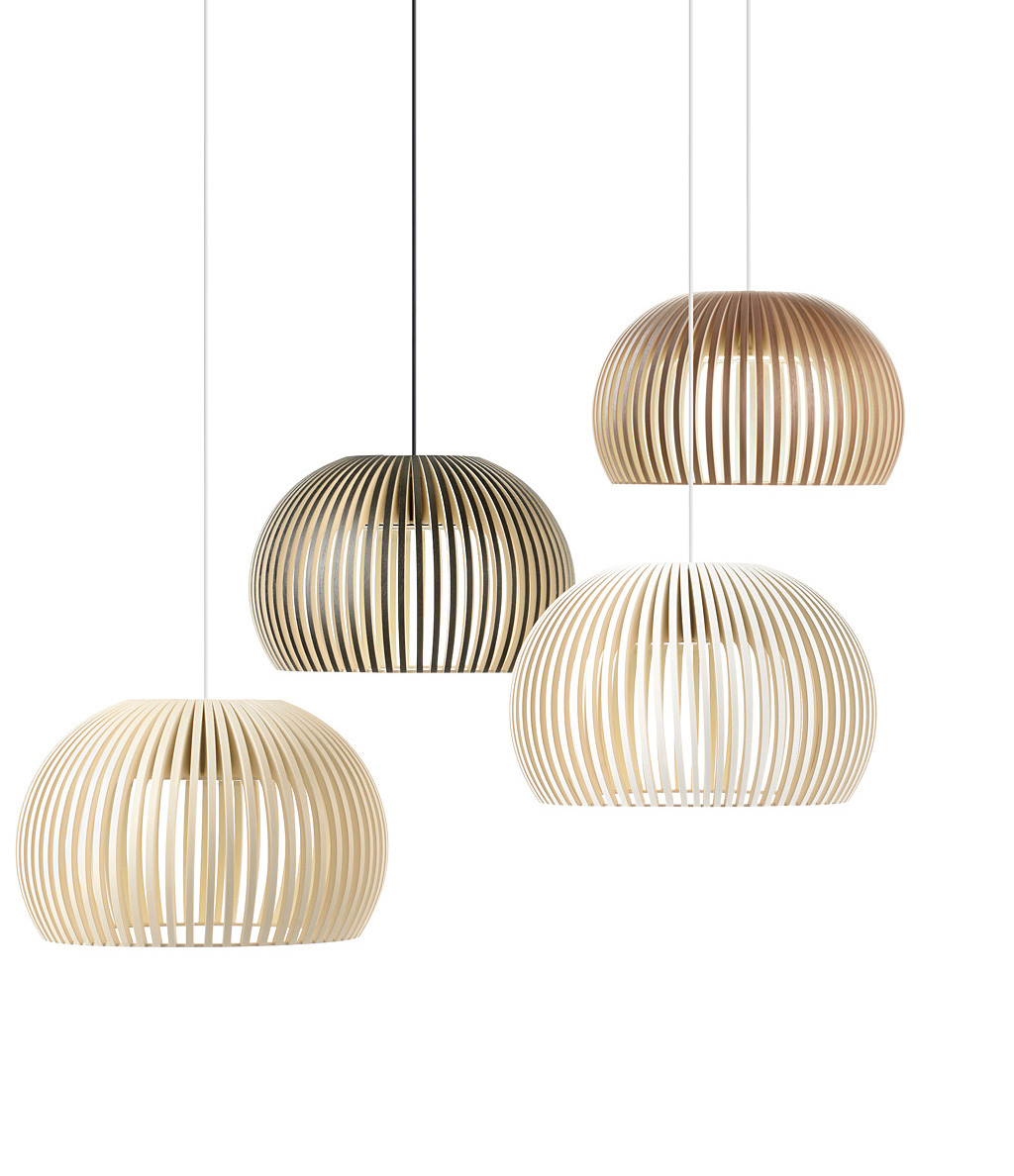

Secto Design Atto 5000 pendant lamp is available in four colours: birch, walnut, black and white.

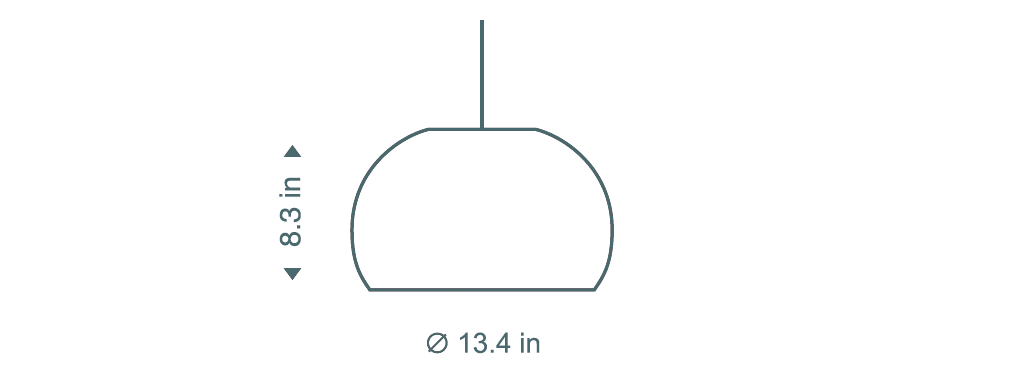

Secto Design Atto 5000 pendant lamp is 8.3 in high and its diameter is 13.4 in.

Atto 5000 pendant

Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen. Uses the latest LED-technology.

Finishing options

Shade Case CableCeiling cup
Natural birch White WhiteWhite
White laminated White WhiteWhite
Black laminated Black Black Black
Walnut veneer White White White

Product details (ETL/CETL)

Material Form pressed birch slats, fine textured  powder coated aluminium case, acrylic  diffuser
Dimensions Height 8.3 in
Diameter Ø 13.4 in
Weight 4.6 lb
Package 15.4 × 15.4 × 11.8 in, 7.1 lb
 Voltage 120V 50/60 Hz
Light source A built-in LED by aLED, 12 W, 3000 K, 1400 lm, CRI 80. Dimmable with a trailing edge or a leading edge type of a dimmer. This product contains a light source of energy efficiency class D.
Cable 15 ft, textile cable, connector, ceiling cup
Classification Ingress Protection IP20, IEC Protection Class II, ETL/CETL listed
Maintenance Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth.



WARNING: The cable and the built-in LEDs can only be replaced by the manufacturer.

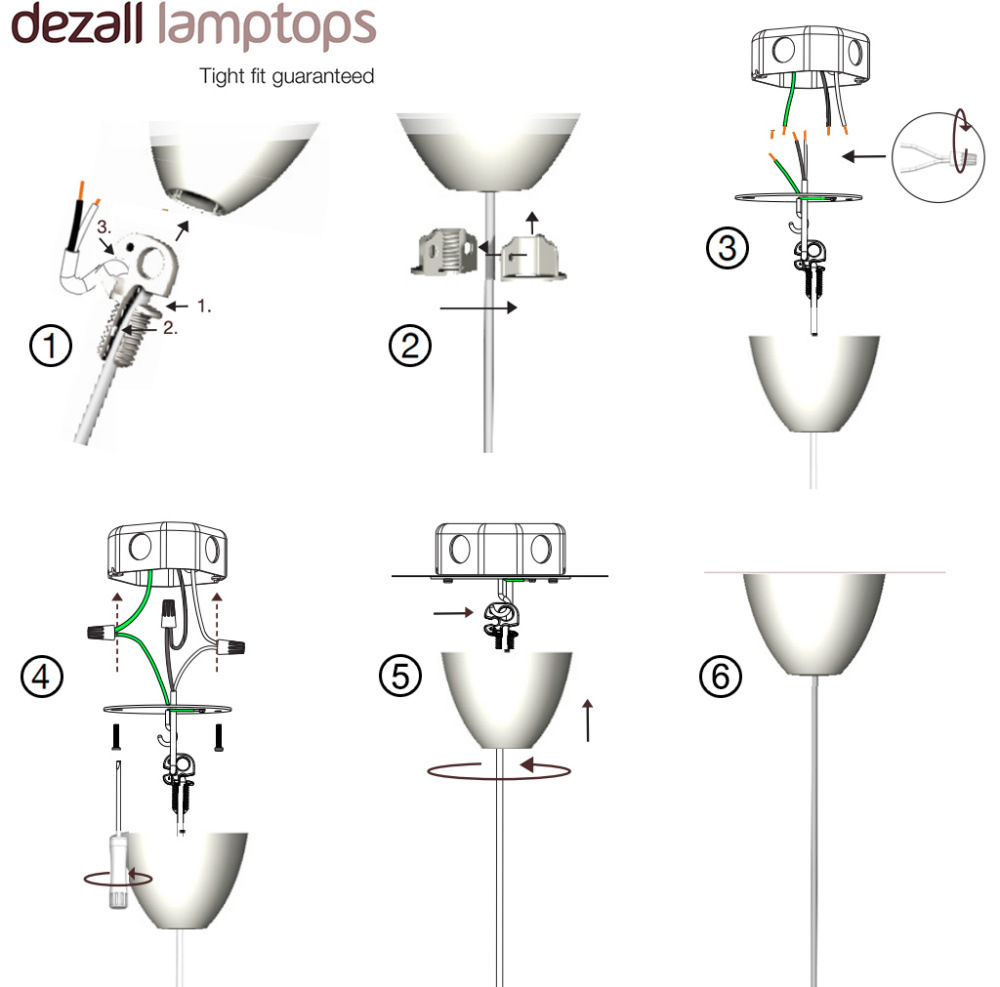

Dezall lamptops

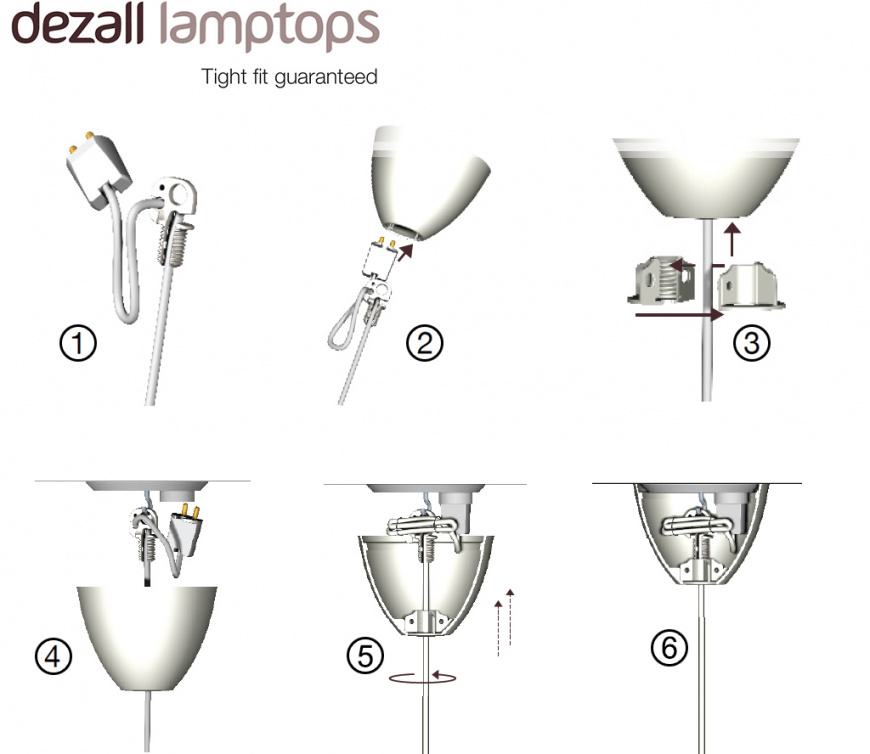

This Secto Design pendant uses the patented ceiling suspension by Dezall. Easy and quick to install, enables the ceiling cup to sit perfectly tight against the ceiling.

Step 1Lock the cord in the upper part of the screw, start in the middle. Then insert it into the opening along the thread. Push it down into the bottom of the channel.
Step 2Insert the screw, plug and remaining cord through the cover from below. Also insert it through the ring if this is to be used.
Step 3Put the two matching bottom parts together, facing each other, around the cord between the cover and the lamp. Insert the assembled bottom part into the cover by fitting the “wings” into the slots inside the cover. Push it into the cover until fully seated.
Step 4Hang the screw on the ceiling hook and connect the plug.
Step 5Move the lamptop upwards towards the screw hanging on the hook. When the screw and the bottom parts’ “nut” have come in contact inside the cover, start screwing the cover clockwise until it reaches the ceiling.
Step 6The lamptop is now sitting straight to the ceiling.

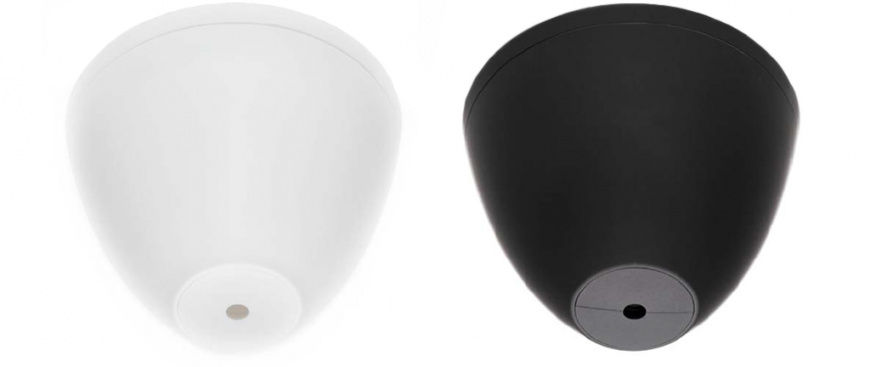

Round ceiling cup

Height3.2 in / 3.5 in (with ring)
Outer upperØ 4.6 in / 4.7 in  (with ring)
Inner upperØ 4.4 in / 4.6 in  (with ring)
Weight0.13 lb / 0.16 lb (with ring)
ColorWhite or black matt soft lacquer depending on the colour of the pendant.
InformationThe round ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket.

Any extra length of the cable can be swirled into the ceiling cup when altering the hanging height of the pendant.

Light distribution

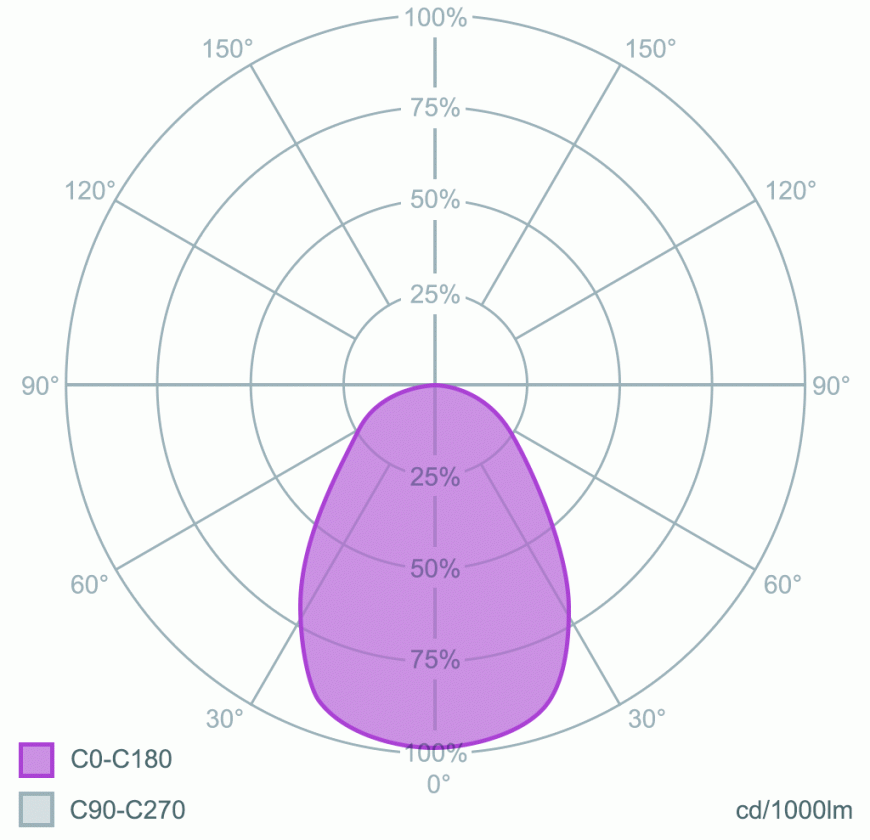

Light distribution curve of Atto 5000. Polar curve of the angular luminous intensity distribution at two perpendicular C planes and at C plane with maximum luminous intensitys.

Download LDT
