This grand and airy pendant is a classic. A magnificent suspension that is comfortable also in small spaces due to its lightness. Designed by architect Seppo Koho, launched in 2005.
| Download EPD from Environdec. |
 |
Colour:
Get it here!
Octo 4240 pendant lamp
Octo 4240 pendant lamp
Octo 4240. Korean Restaurant Kimchee. High Holborn, London, UK. Photo by Yu-Kuang Chou.
Octo 4240. The Hampton by Hilton Amsterdam Arena Boulevard Hotel, Amsterdam, The Netherlands. Photo by Ellen Swaan.
Octo 4240. Private Residence, Helsinki, Finland. Photo by Uzi Varon.
More images of the Octo 4240 pendant lamp here
Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen.
| Shade | Cable | Ceiling cup |
| Natural birch | White | White |
| White laminated | White | White |
| Black laminated | Black | Black |
| Walnut veneer | White | White |
| Material | Form pressed birch slats |
| Dimensions | Height 26.8 in Diameter Ø 21.3 in Weight 4.4 lb Package 23.2 × 23.2 × 30.3 in, 10.4 lb |
| Voltage | 120V 60Hz |
| Light source |
E26 (LED max. 22 W) or GU24 (LED max. 17 W). Bulbs are not included. The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. |
| Cable | 8 ft, textile cable, ceiling plug/connector, ceiling cup |
| Classification | Ingress Protection IP20, IEC Protection Class II, ETL/CETL listed |
| Maintenance | Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth. |

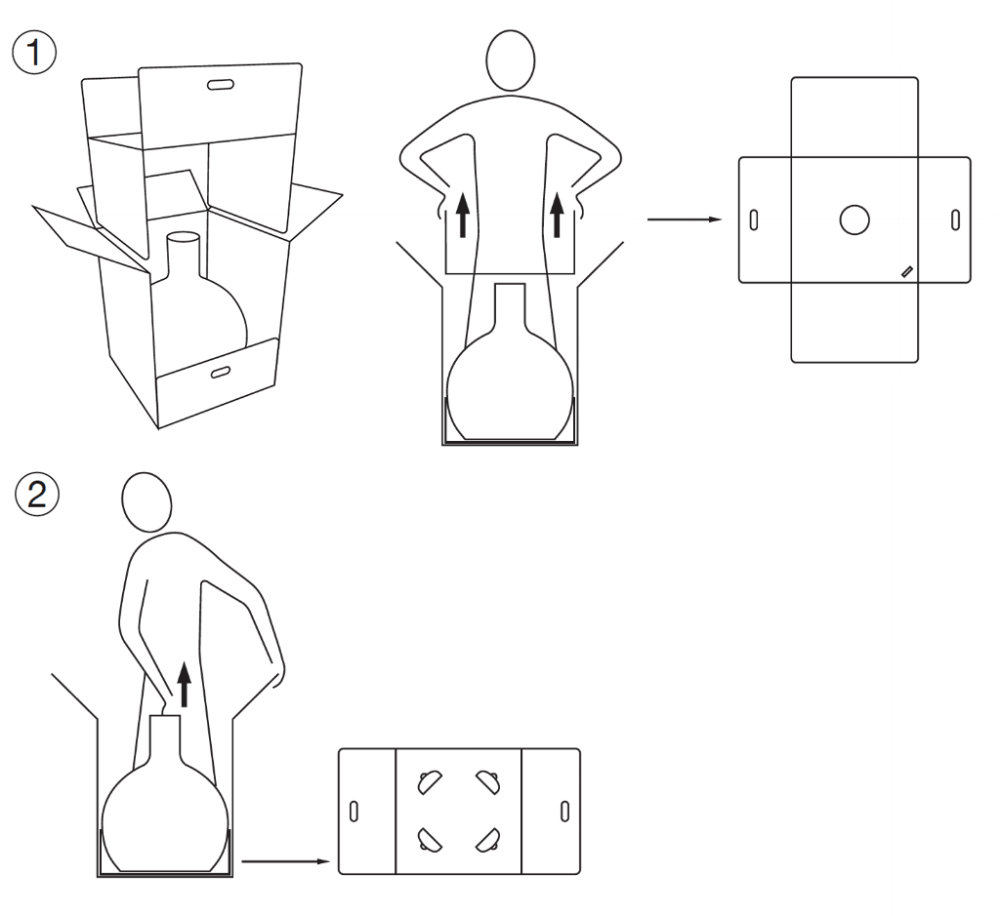

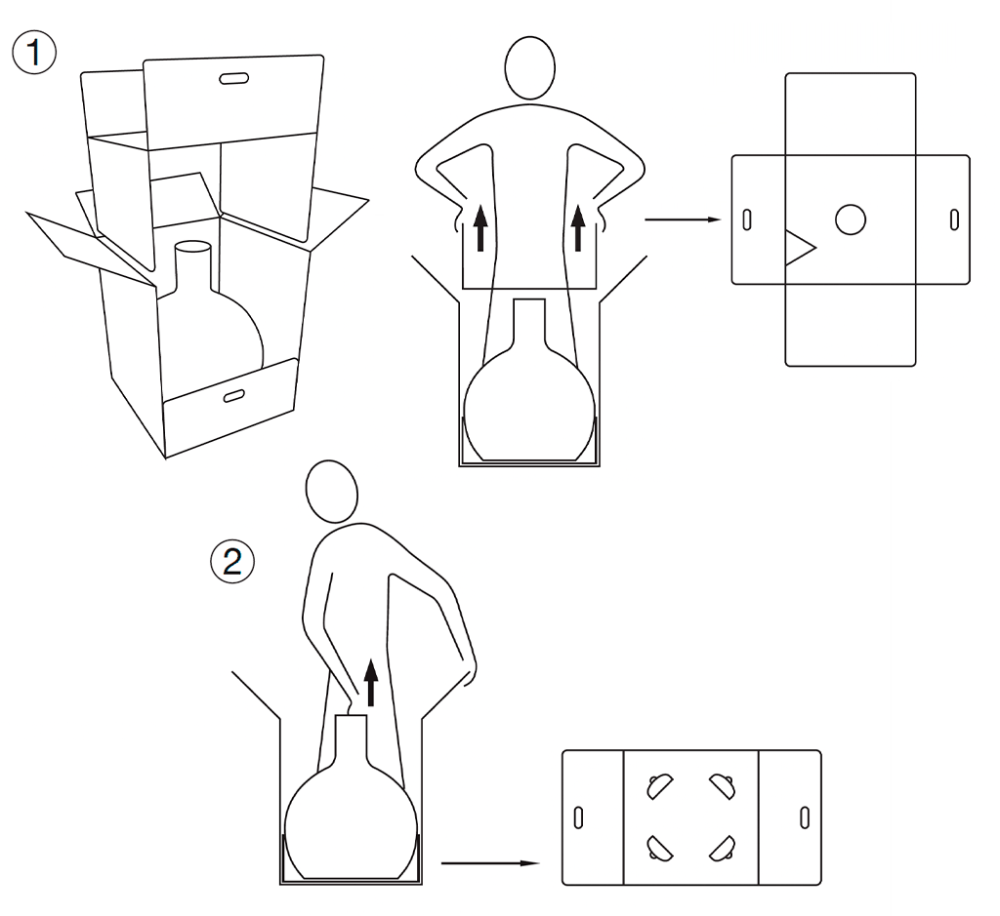

| Step 1 | Lift up and remove the top sheltering structure. |
| Step 2 | Lift up the lamp by holding it from the lamp body. |
This Secto Design pendant uses the patented ceiling suspension by Dezall. Easy and quick to install, enables the ceiling cup to sit perfectly tightagainst the ceiling.
| Step 1, 2, 3 | Fasten the cable into the screw at the desired hanging height. |
| Step 4 | Connect by using the screw nuts for each cable: live, neutral and earth. |
| Step 5 | Screw the metal ceiling plate to the junction box in the ceiling. |
| Step 6 | Hang the screw on the hook and wind the ceiling cup upwards until it sits tightly against the ceiling. |

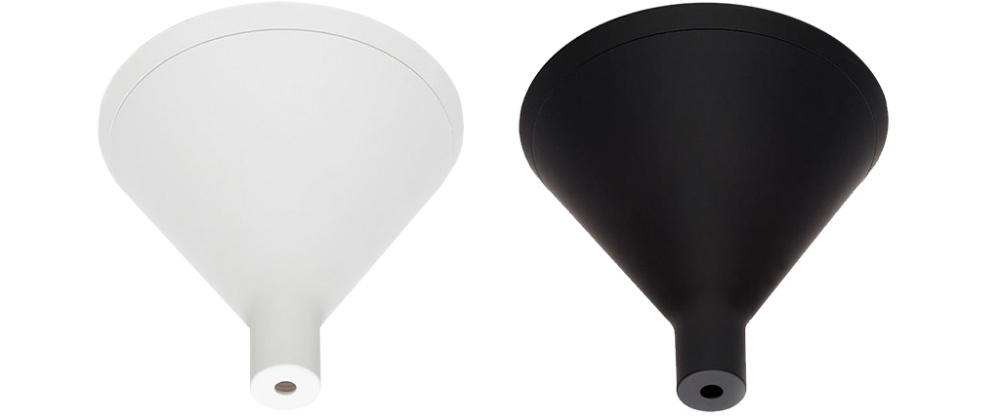

| Height | 4.4 in / 4.7 in (with ring) |
| Outer upper | Ø 4.8 in / 5.2 in (with ring) |
| Inner upper | Ø 4.6 in / 4.8 in (with ring) |
| Weight | 0.13 lb / 0.16 lb (with ring) |
| Color | White or black matt soft lacquer depending on the colour of the pendant. |
| Information | The standard ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket. Any extra length of the cable can be swirled into the ceiling cup when altering the hanging height of the pendant. |

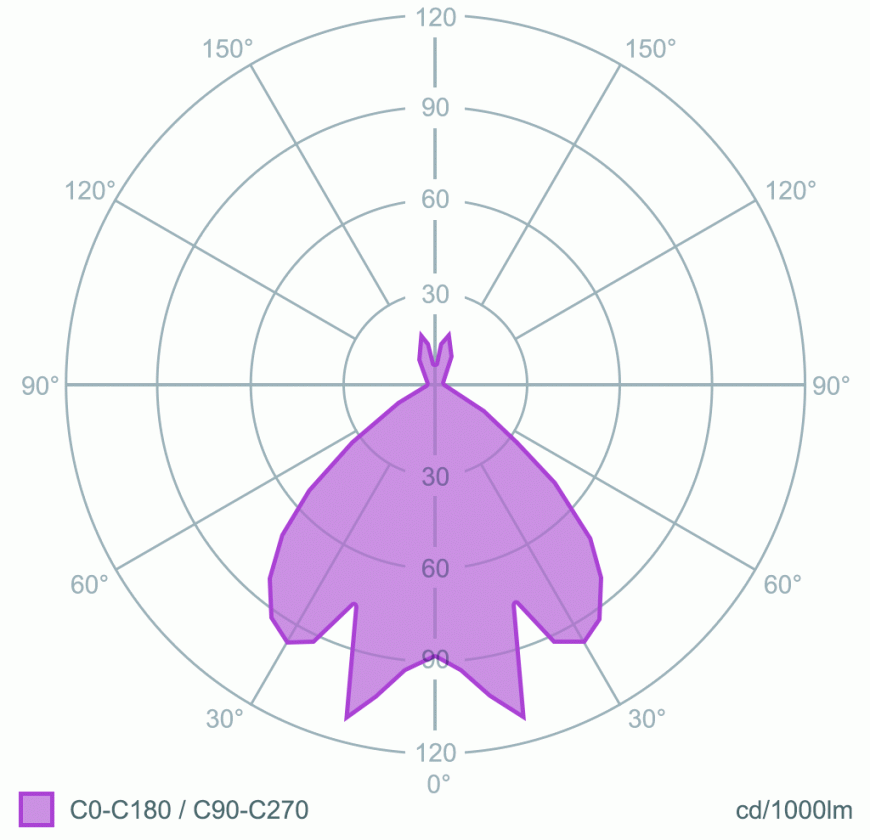

Light distribution curve of Octo 4240. Since the luminaire is symmetric the light distribution curve is similar at every C-planes.
