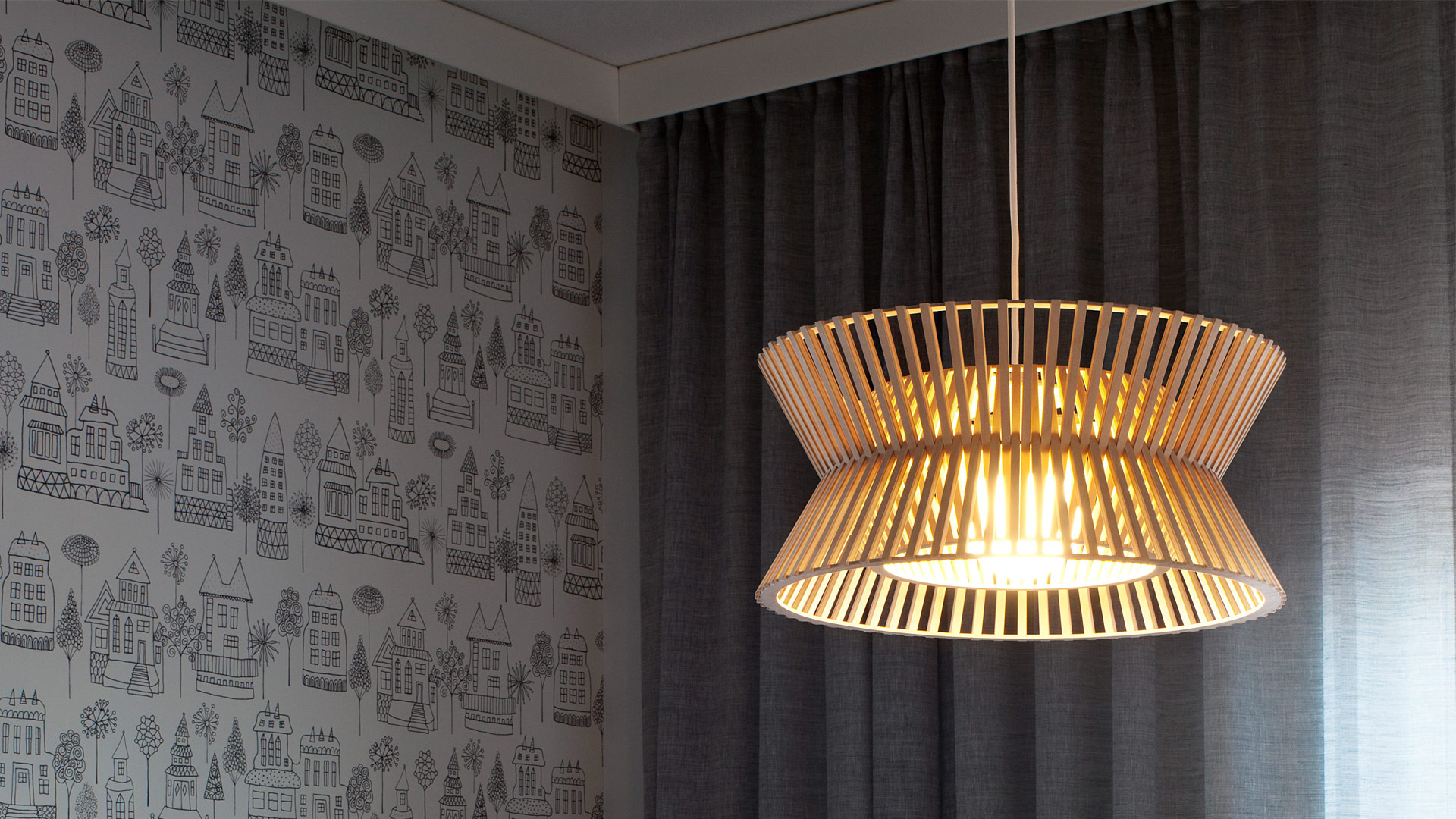

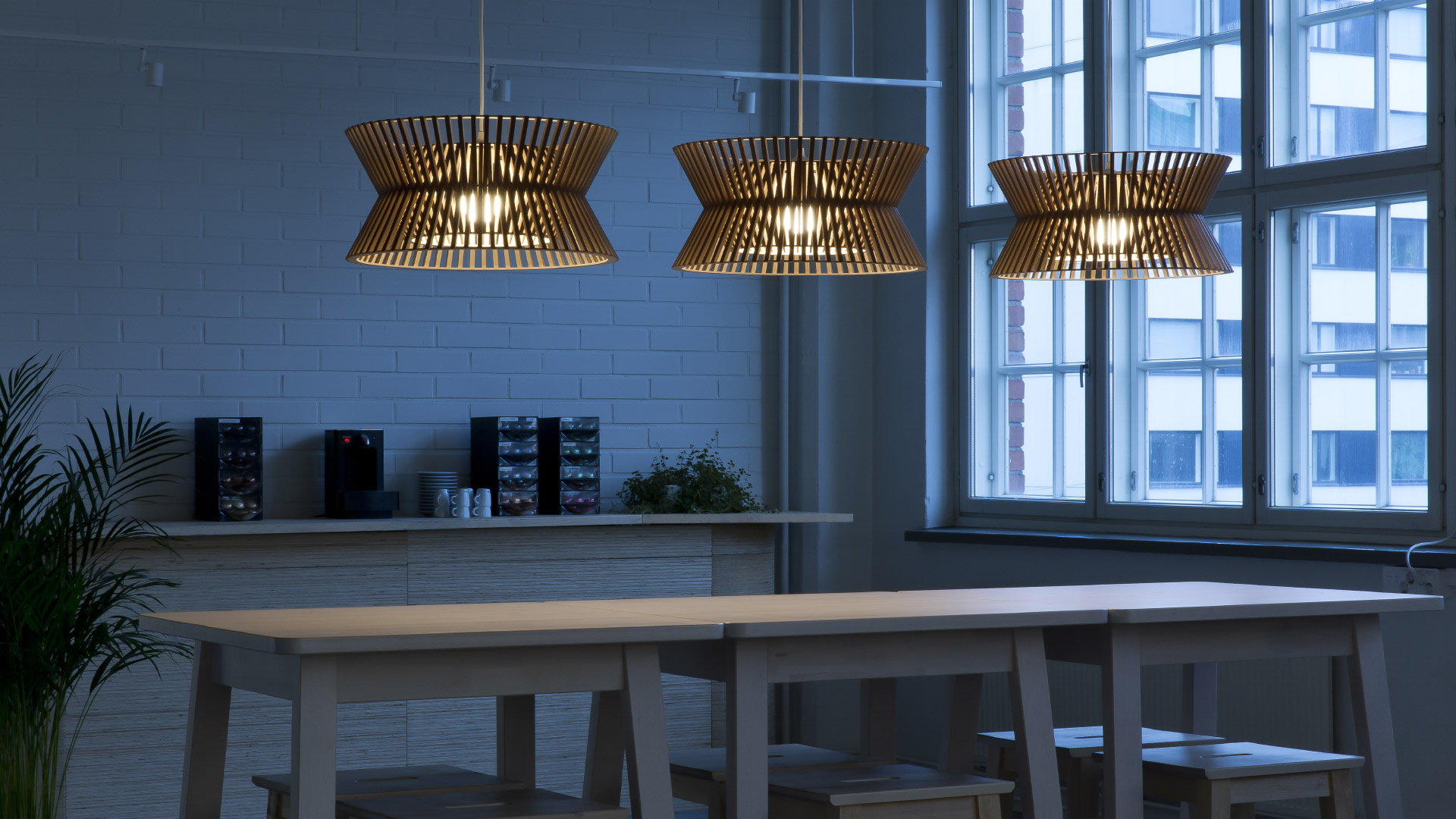

Kontro 6000 pendant lamp:
Modern chandelier

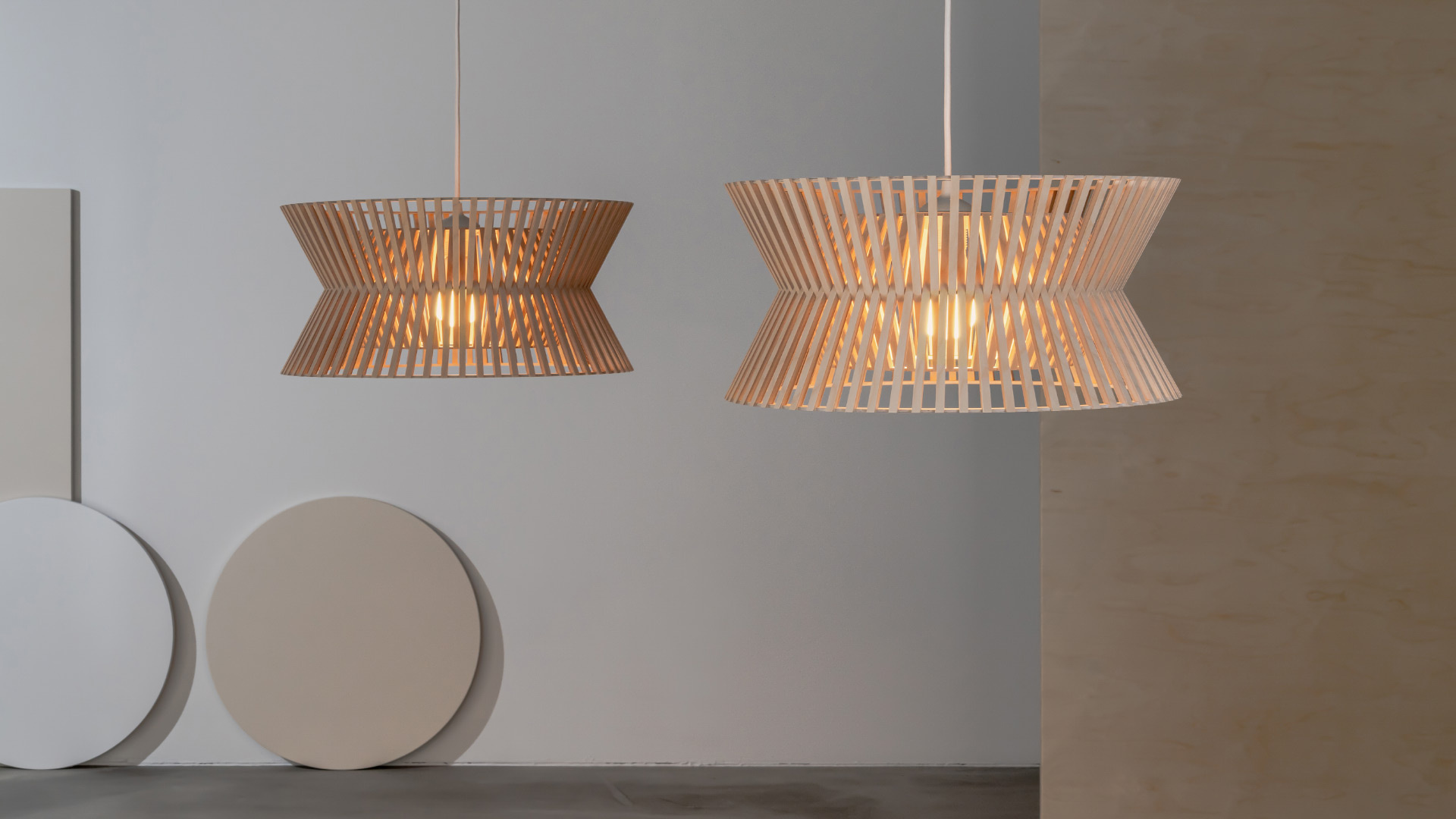

Kontro 6000 is a new interpretation of the chandelier. The openness of the design spreads light widely.
More images of the Kontro 6000 pendant lamp here

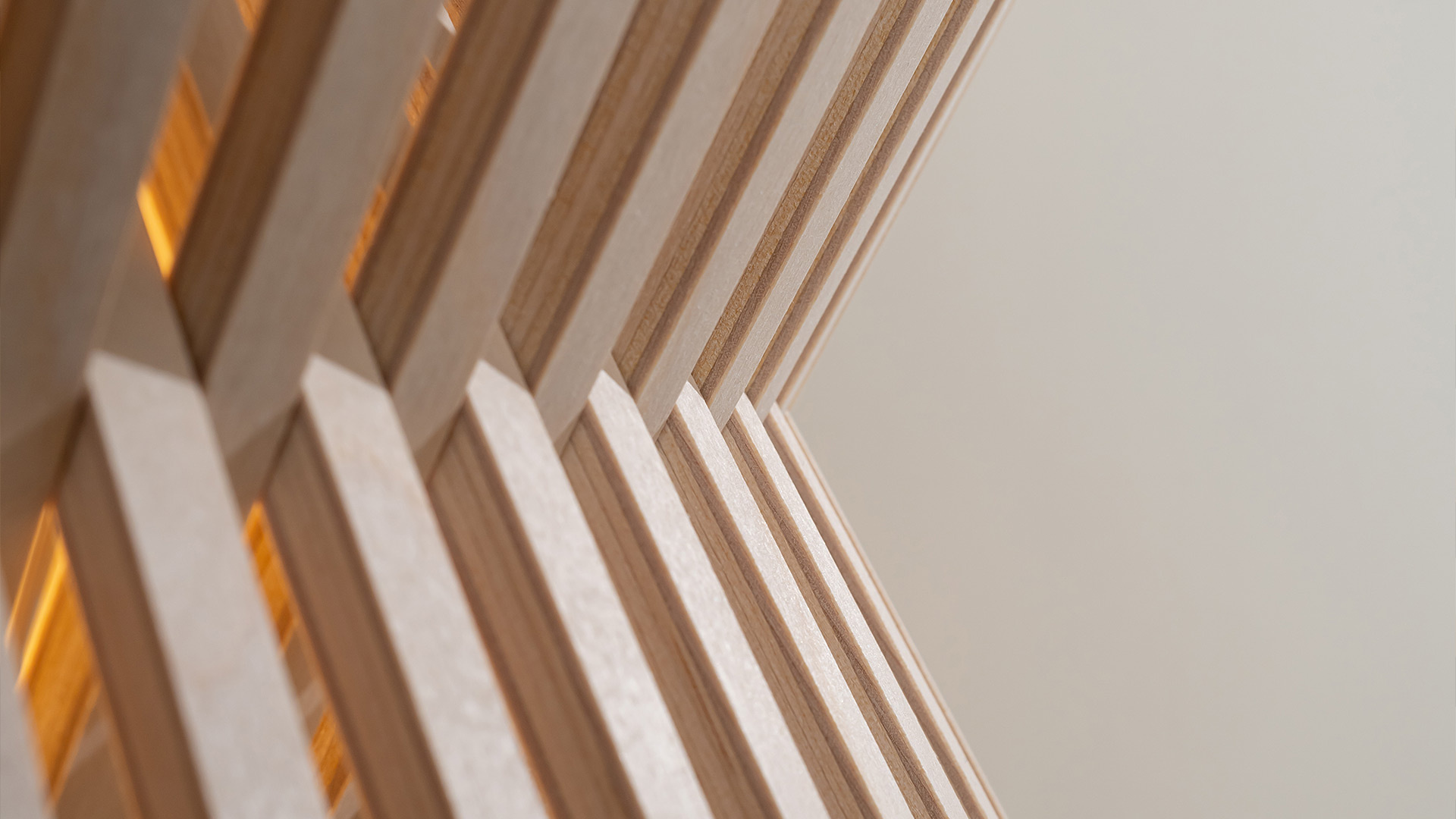

Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen.

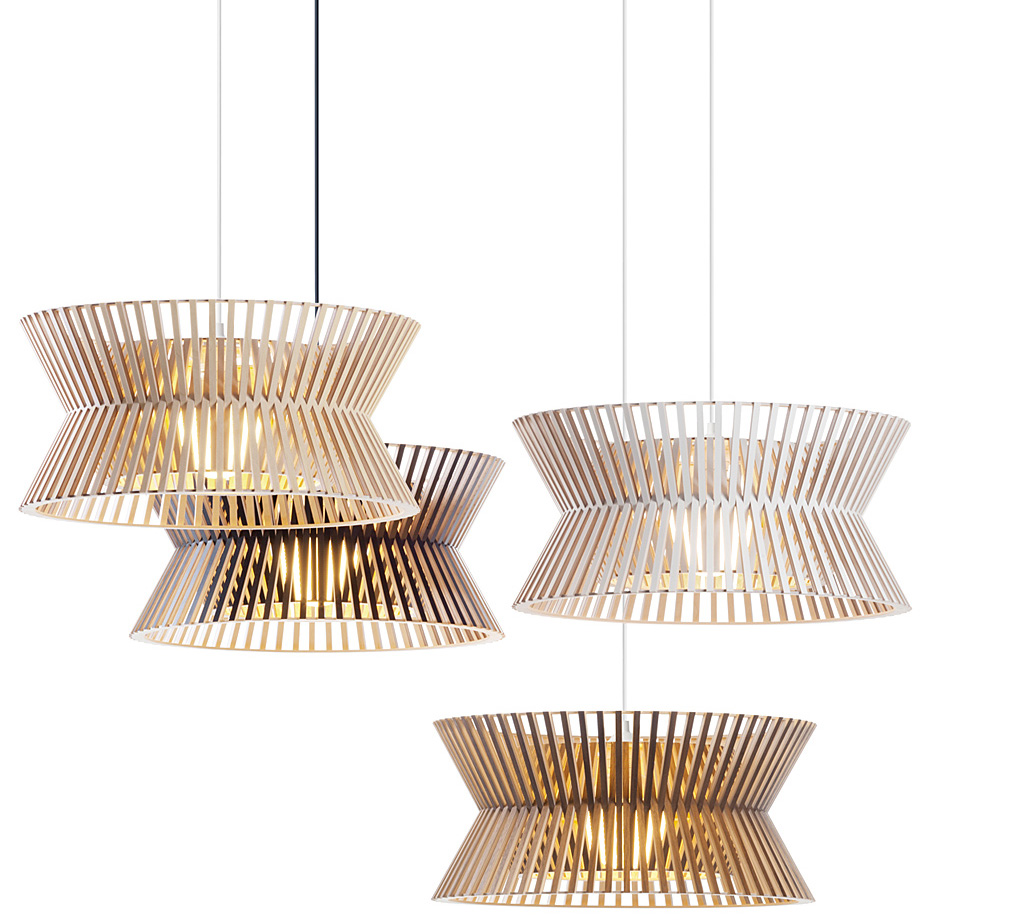

Shade | Cable | Ceiling cup |

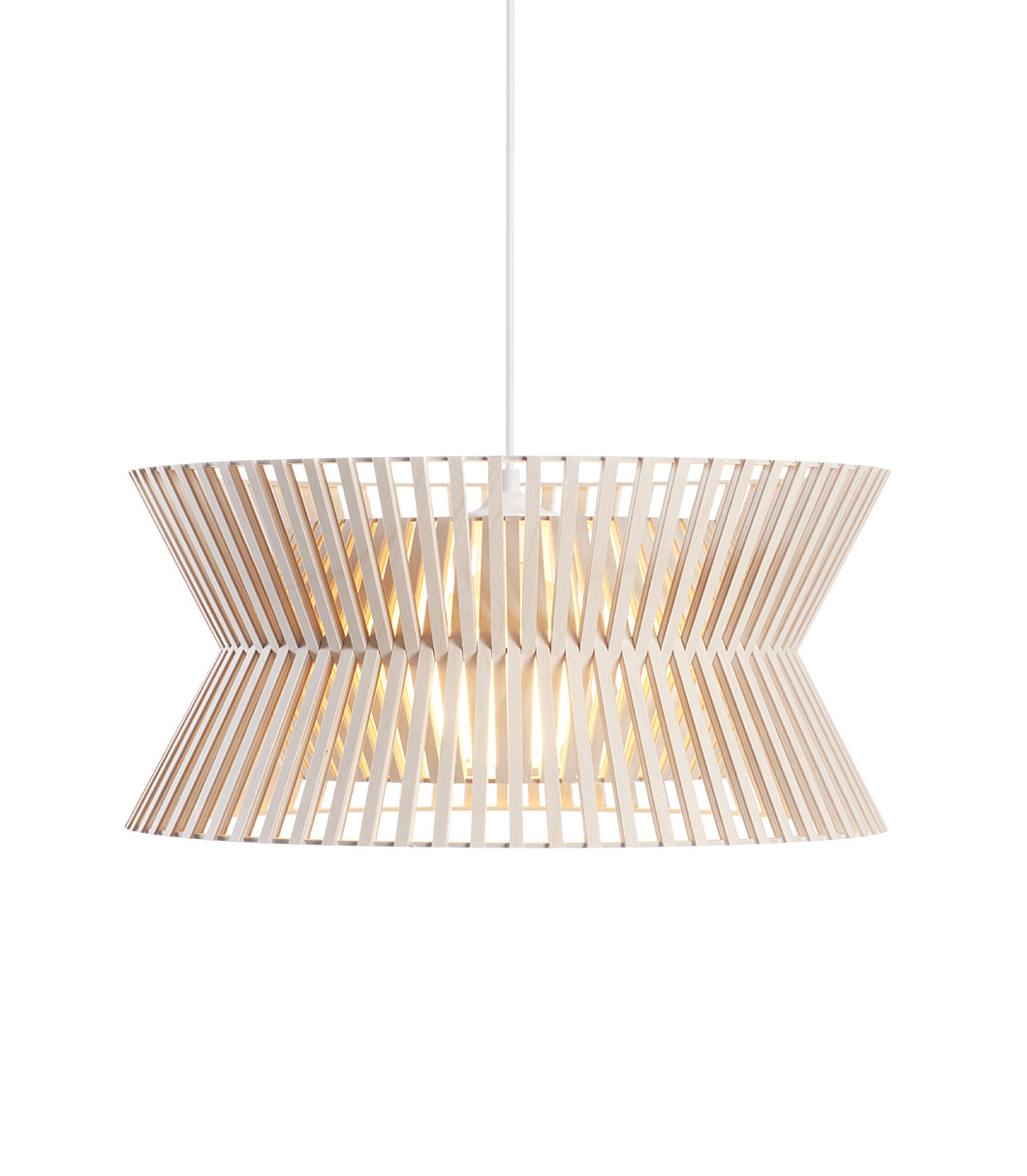

Natural birch | White | White |

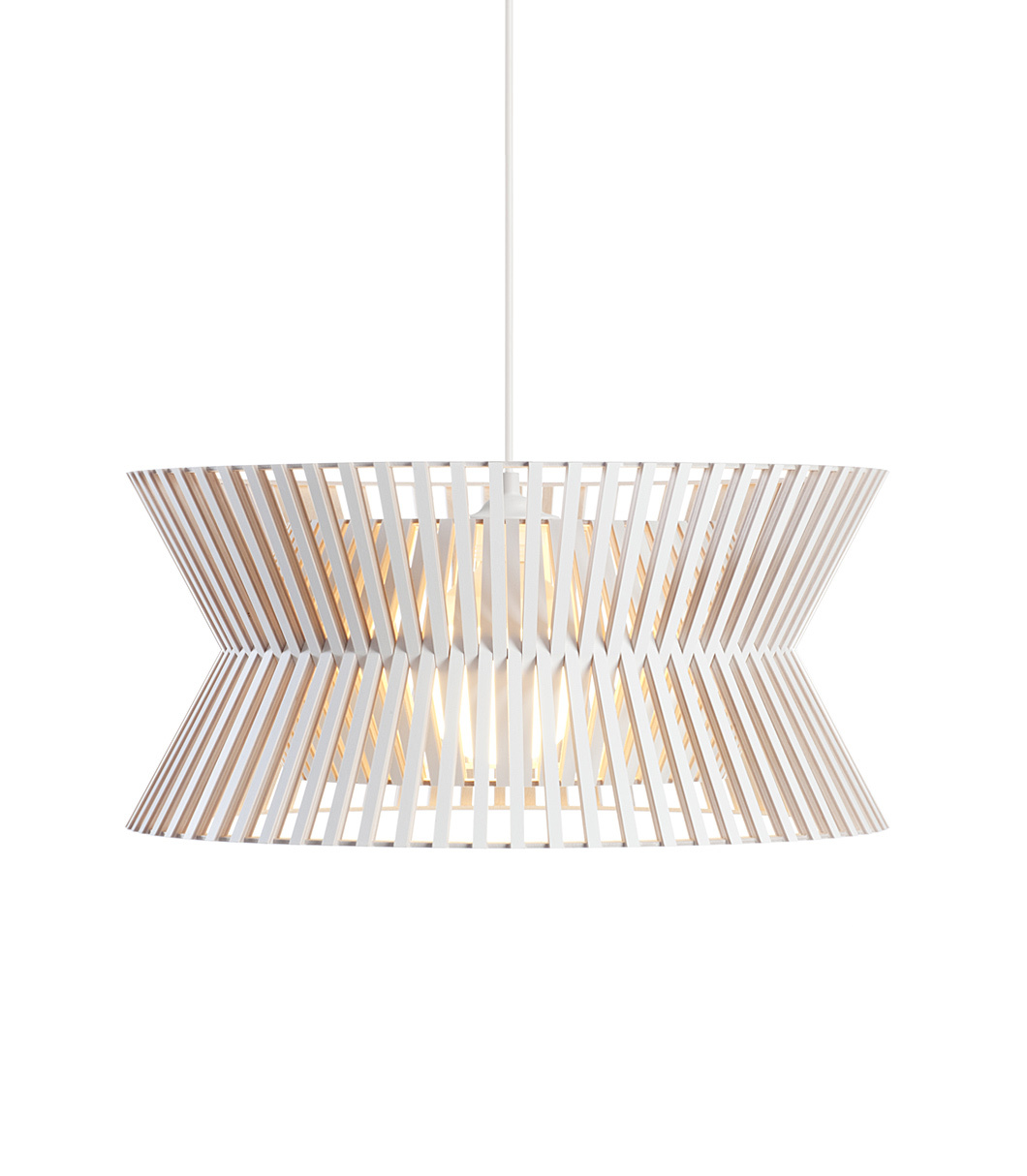

White laminated | White | White |

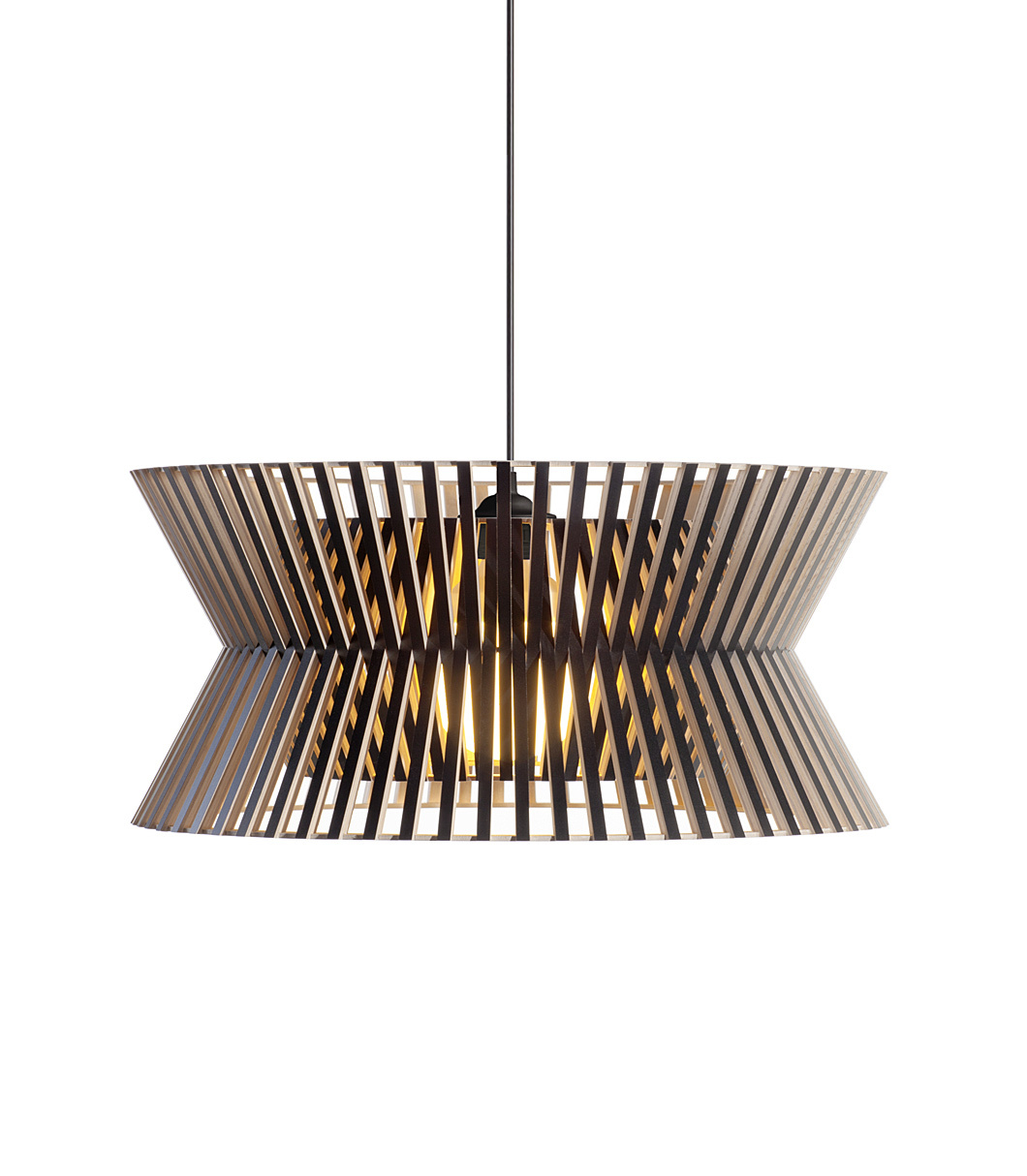

Black laminated | Black | Black |

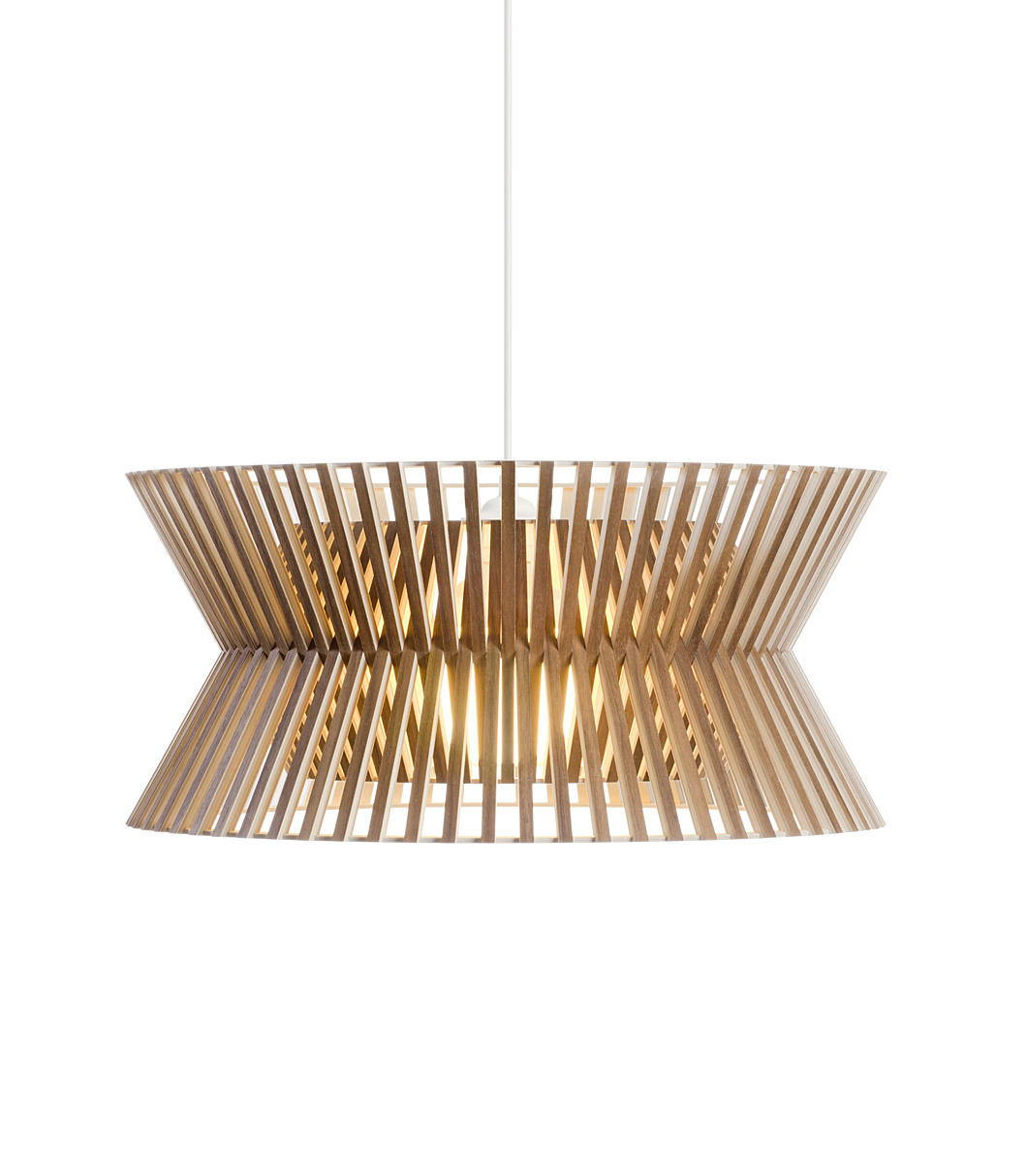

Walnut veneer | White | White |
Material | Form pressed birch |

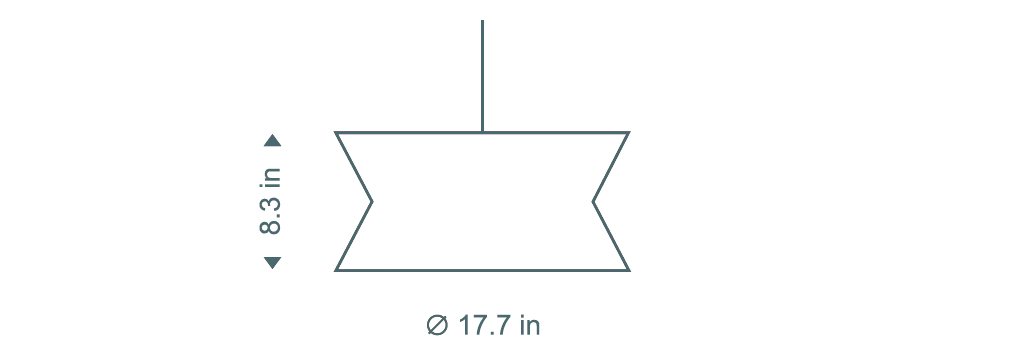

Dimensions | Height 8.3 in Diameter Ø 17.7 in Weight 3.5 lb Package 18.5 × 18.5 × 9.4 cm, 6.6 lb |
Voltage | 120V 60Hz |
Light source | E26 (LED max. 22 W) or GU24 (LED max. 17 W). Bulbs are not included. The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. |
Cable | 8 ft, textile cable, ceiling plug/connector, ceiling cup |
Classification | Ingress Protection IP20, IEC Protection Class II, ETL/CETL listed |
Maintenance | Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth. |
This Secto Design pendant uses the patented ceiling suspension by Dezall. Easy and quick to install, enables the ceiling cup to sit perfectly tight against the ceiling.
Step 1, 2, 3 | Fasten the cable into the screw at the desired hanging height. |
Step 4 | Connect by using the screw nuts for each cable: live, neutral and earth. |
Step 5 | Screw the metal ceiling plate to the junction box in the ceiling. |
Step 6 | Hang the screw on the hook and wind the ceiling cup upwards until it sits tightly against the ceiling. |

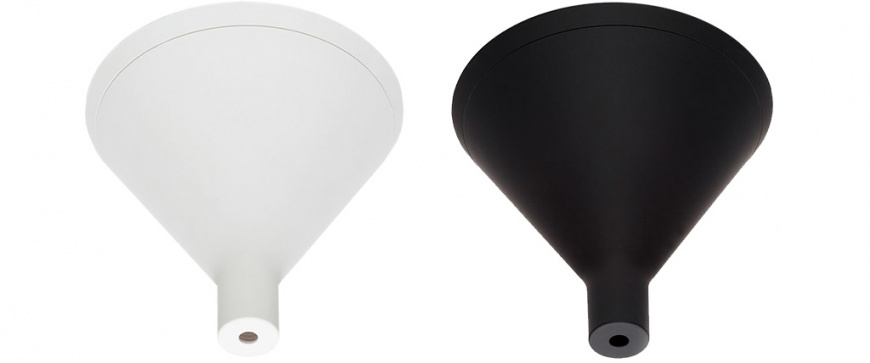

Height | 14.4 in / 4.7 in (with ring) |
Outer upper | Ø 4.8 in / 5.2 in (with ring) |
Inner upper | Ø 4.6 in / 4.8 in (with ring) |
Weight | 0.13 lb / 0.16 lb (with ring) |
Color | White or black matt soft lacquer depending on the colour of the pendant. |
Information | The standard ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket. Any extra length of the cable can be swirled into the ceiling cup when altering the hanging height of the pendant. |

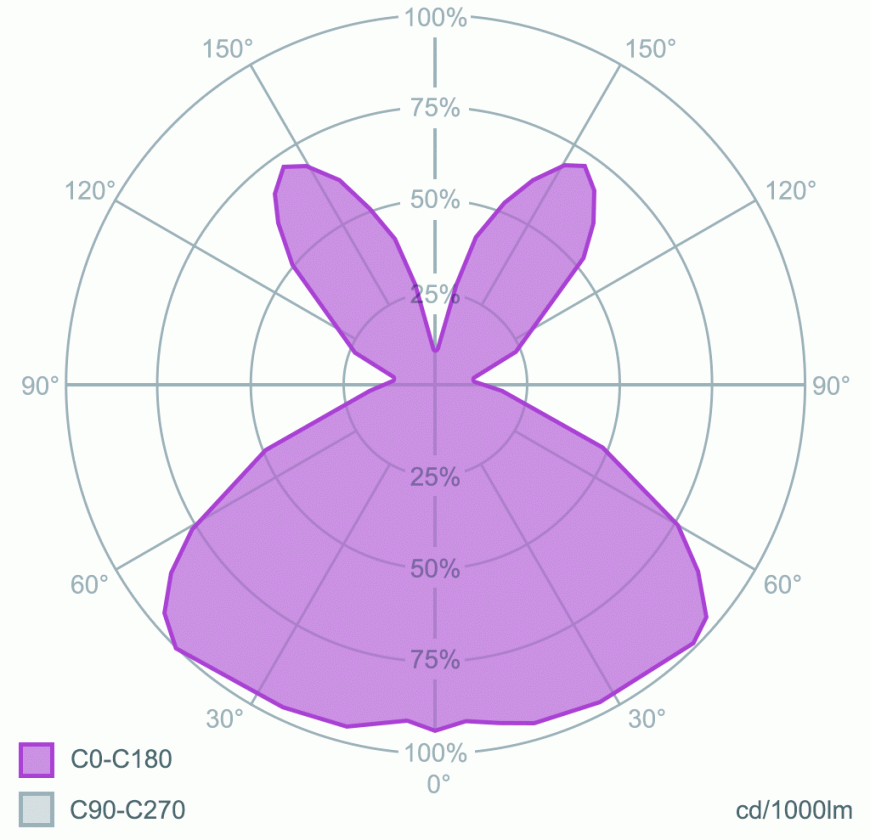

Light distribution curve of Kontro 6000. Polar curve of the angular luminous intensity distribution at two perpendicular C planes and at C plane with maximum luminous intensitys.
