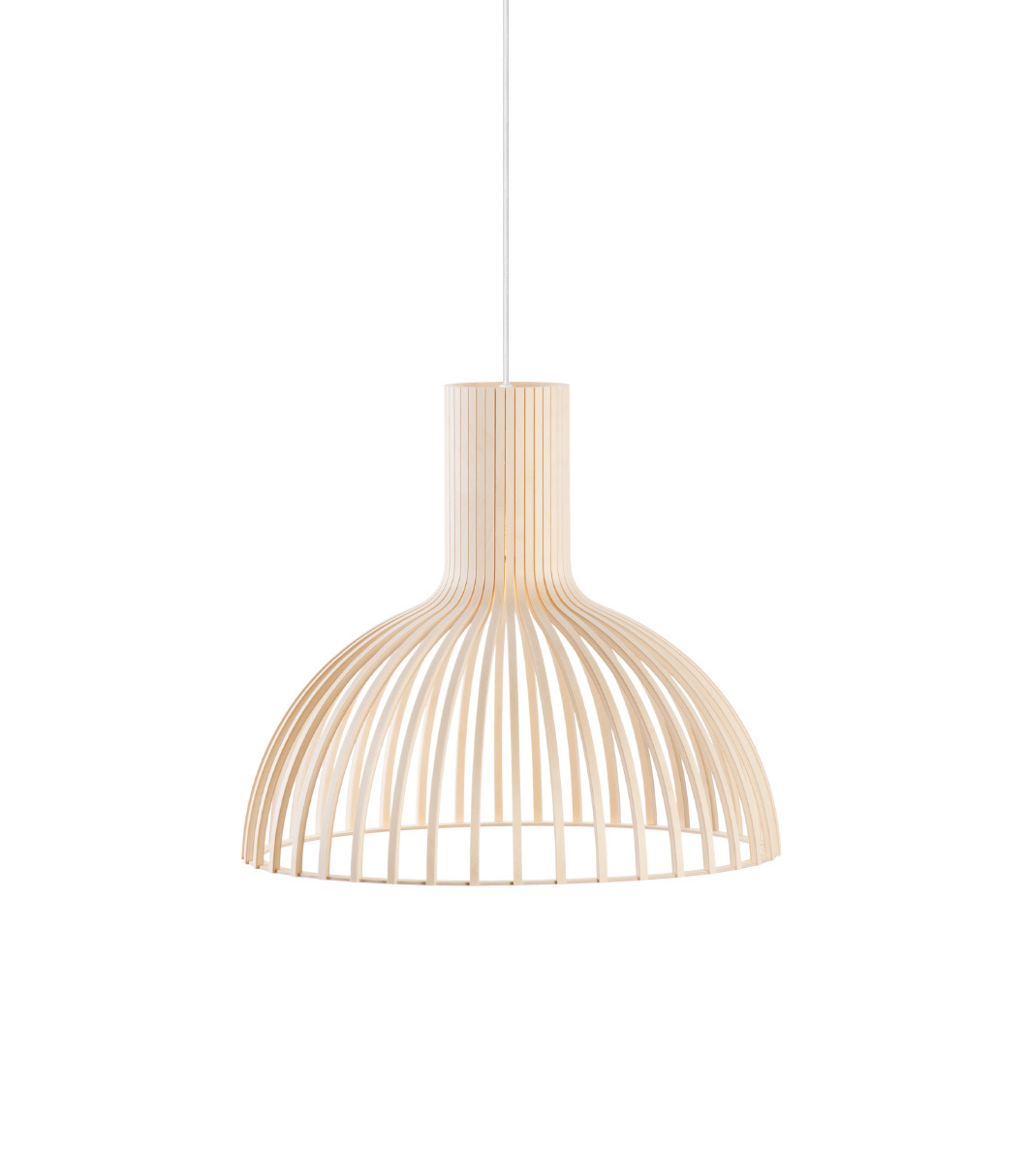

A resized solution to compact interiors and captivating lamp installations. Attractive both on its own and in groups. Designed by architect Seppo Koho, launched in 2020.
| Download EPD from Environdec. |
 |
Colour:

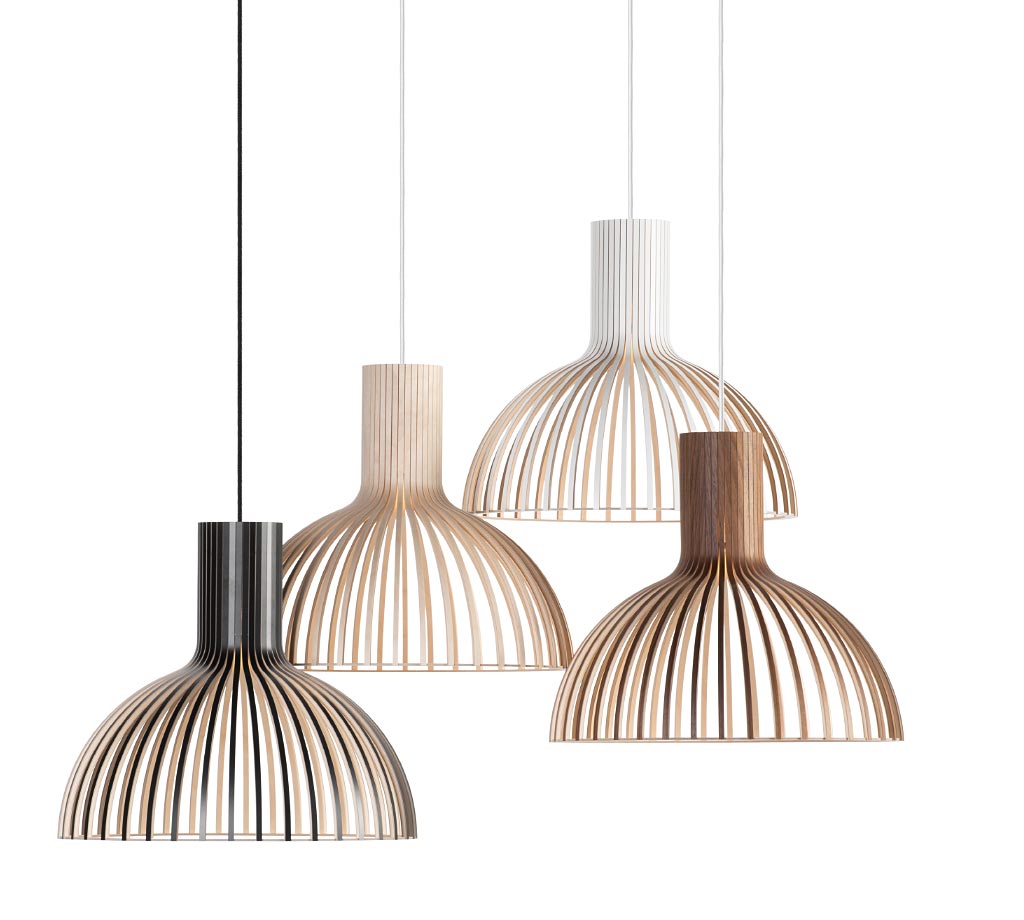

Get it here!More images of the Victo Small 4251 pendant lamp here
Handmade from PEFC-certified form-pressed birch in Finland by highly skilled craftspeople.
| Shade | Cable | Ceiling cup |
| Natural birch | White | White |

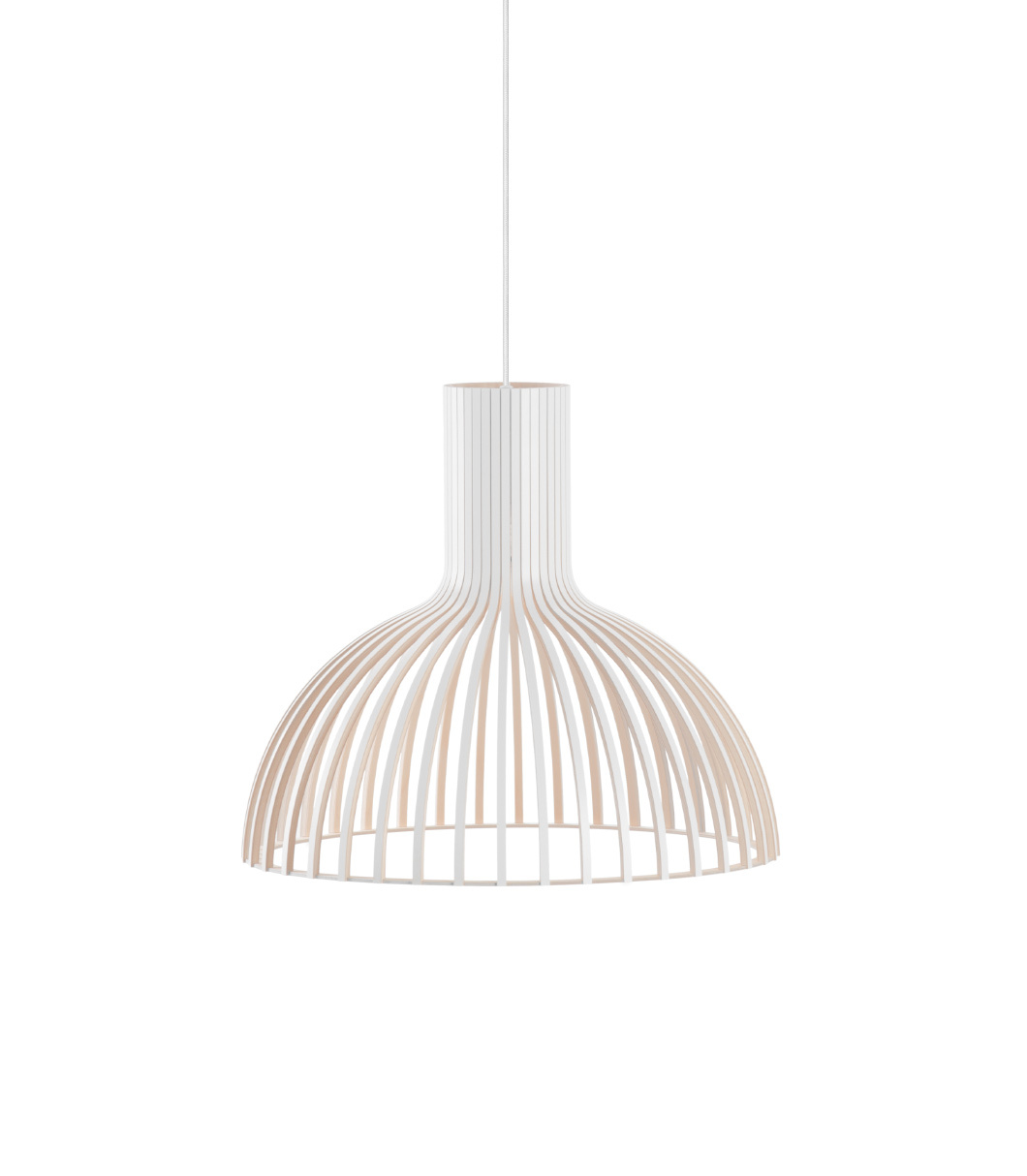

| White laminated | White | White |

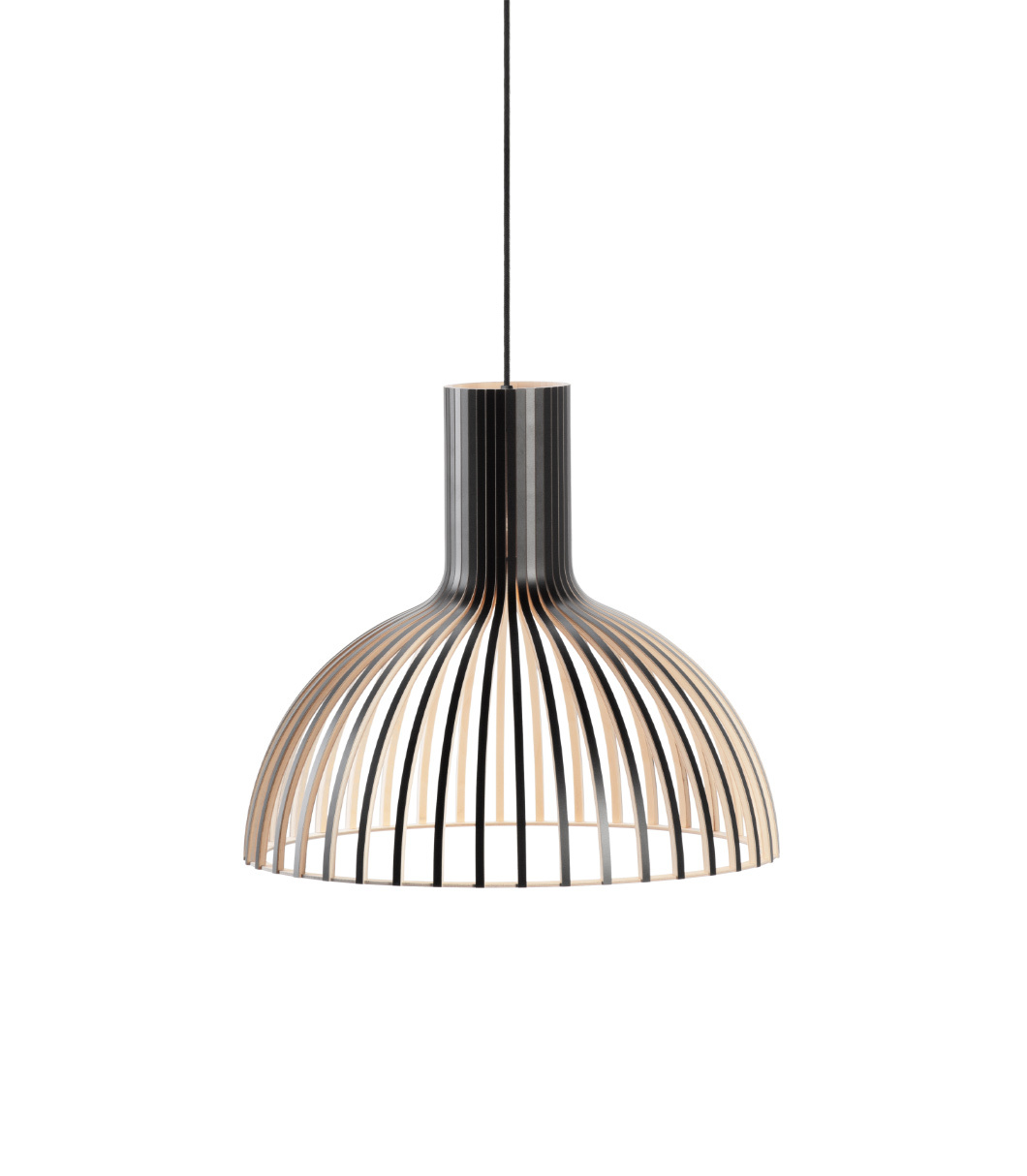

| Black laminated | Black | Black |

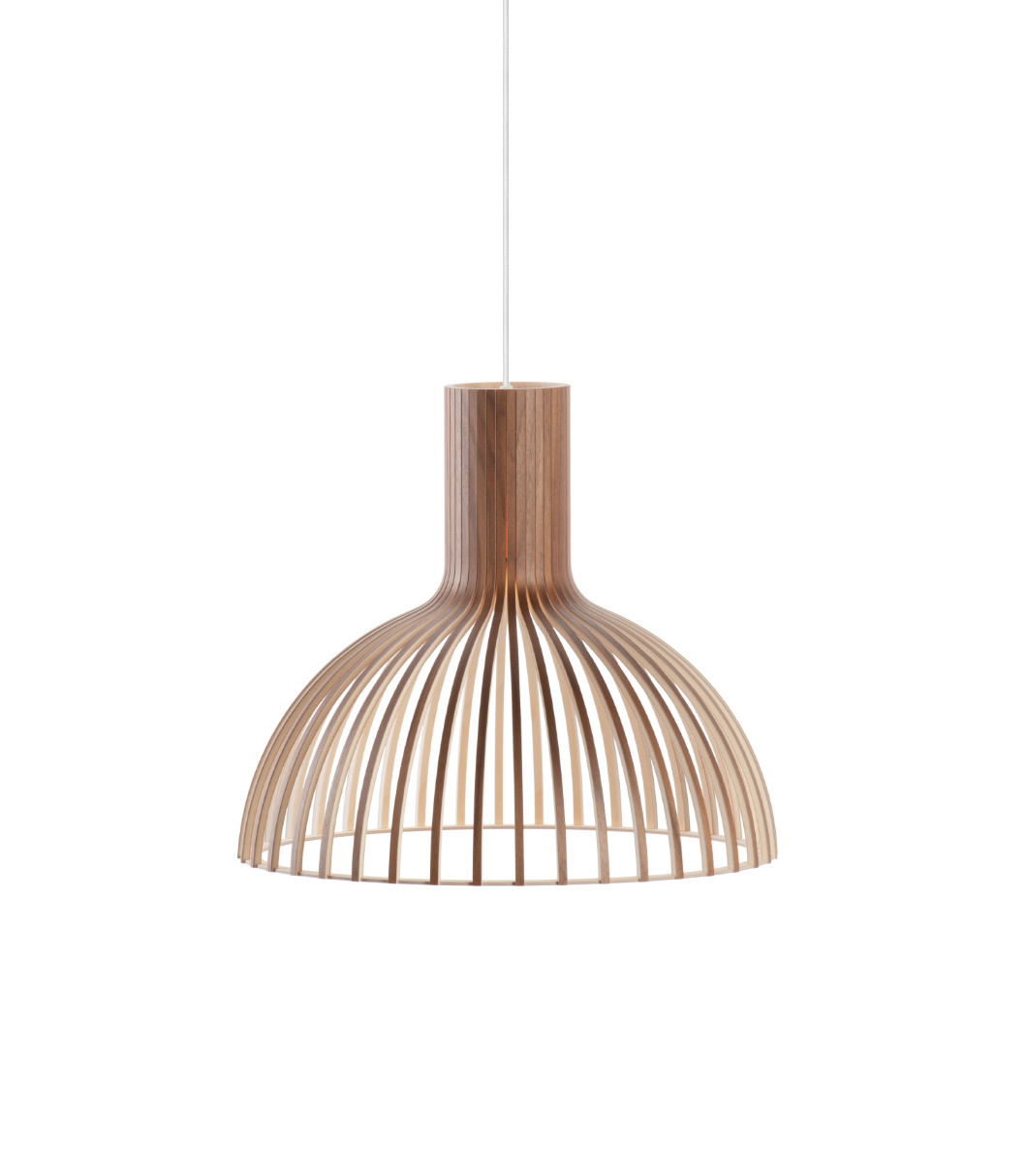

| Walnut veneer | White | White |
| Material | Form-pressed birch slats |

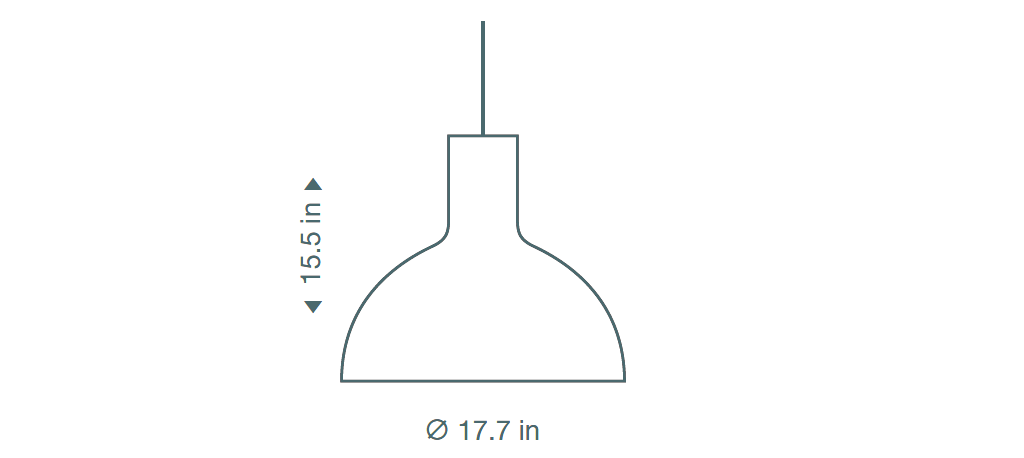

| Dimensions | Height 15.5 in Diameter Ø 17.7 in Weight 2.2 lb Package 19.3 × 19.3 × 18.9 cm, 5.7 lb |
| Voltage | 120V 60Hz |
| Light source | E26 (LED max. 22 W) or GU24 (LED max. 17 W). Bulbs are not included. The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. |
| Cable | 8 ft, textile cable, ceiling plug/connector, ceiling cup |
| Classification | Ingress Protection IP20, IEC Protection Class II, ETL/CETL listed |
| Maintenance | Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth. |
This Secto Design pendant uses the patented ceiling suspension by Dezall. Easy and quick to install, enables the ceiling cup to sit perfectly tight against the ceiling.
| Step 1, 2, 3 | Fasten the cable into the screw at the desired hanging height. |
| Step 4 | Connect by using the screw nuts for each cable: live, neutral and earth. |
| Step 5 | Screw the metal ceiling plate to the junction box in the ceiling. |
| Step 6 | Hang the screw on the hook and wind the ceiling cup upwards until it sits tightly against the ceiling. |
| Height | 4.4 in / 4.7 in (with ring) |
| Outer upper | Ø 4.8 in / 5.2 in (with ring) |
| Inner upper | Ø 4.6 in / 4.8 in (with ring) |
| Weight | 0.13 lb / 0.16 lb (with ring) |
| Colour | White or black matt soft lacquer depending on the colour of the pendant |
| Information | The standard ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket. Any extra length of the cable can be swirled into the ceiling cup when altering the hanging height of the pendant. |

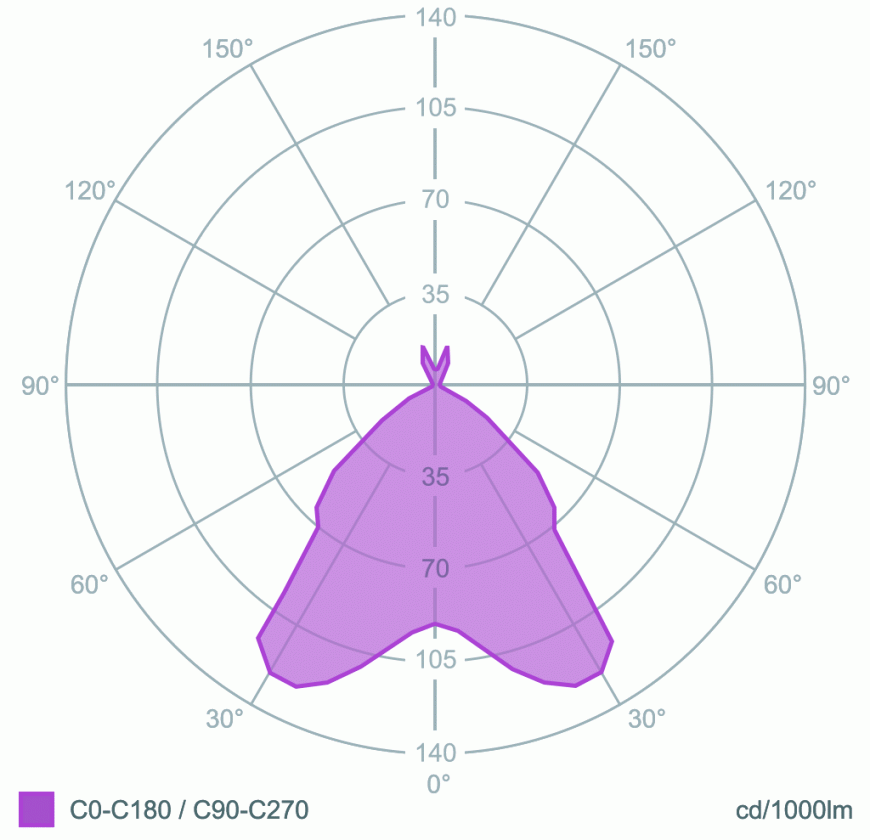

Light distribution curve of Victo Small 4251. Since the luminaire is symmetric the light distribution curve is similar at every C-planes.
