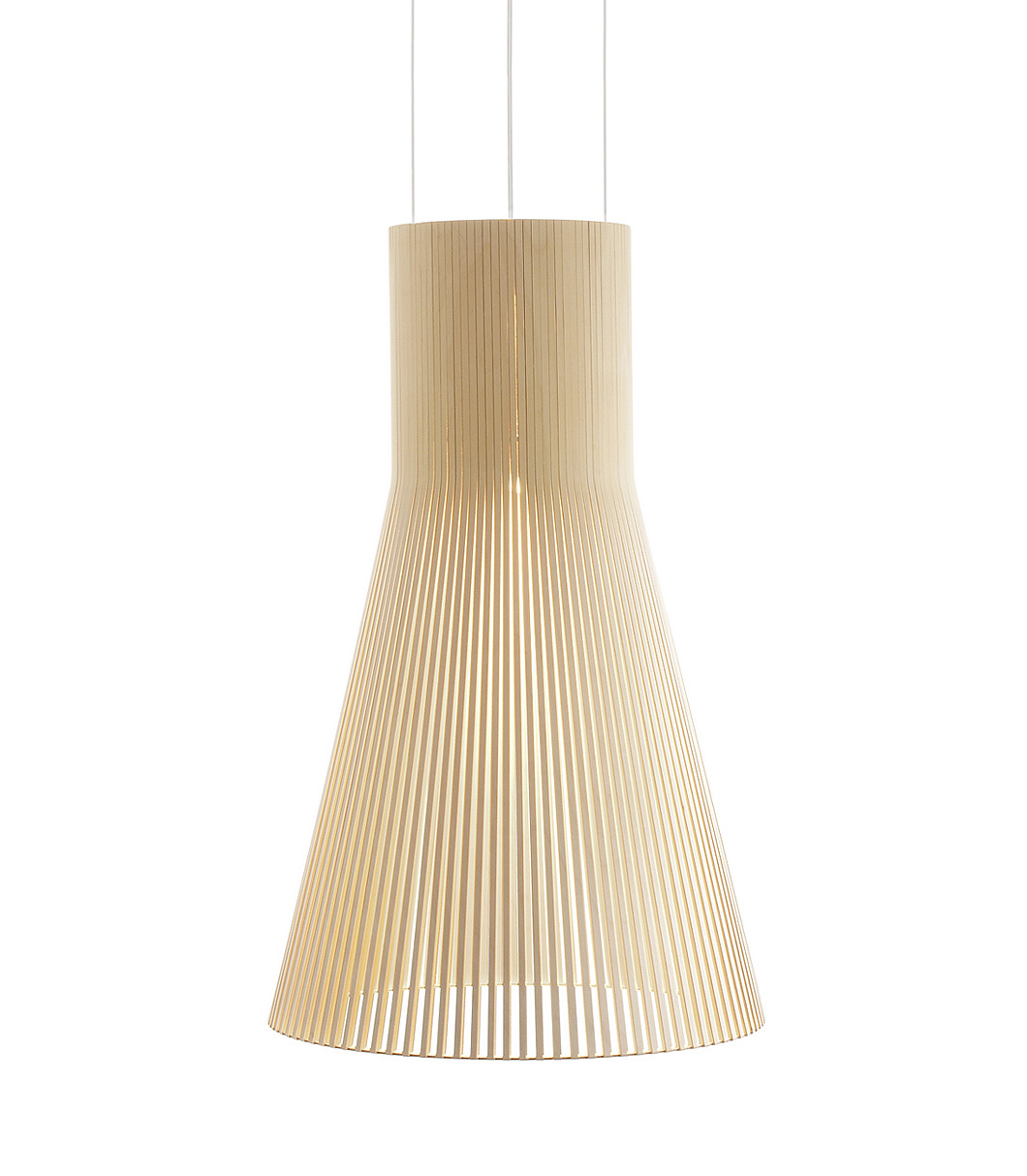

Magnum 4202 pendant lamp is available in natural birch

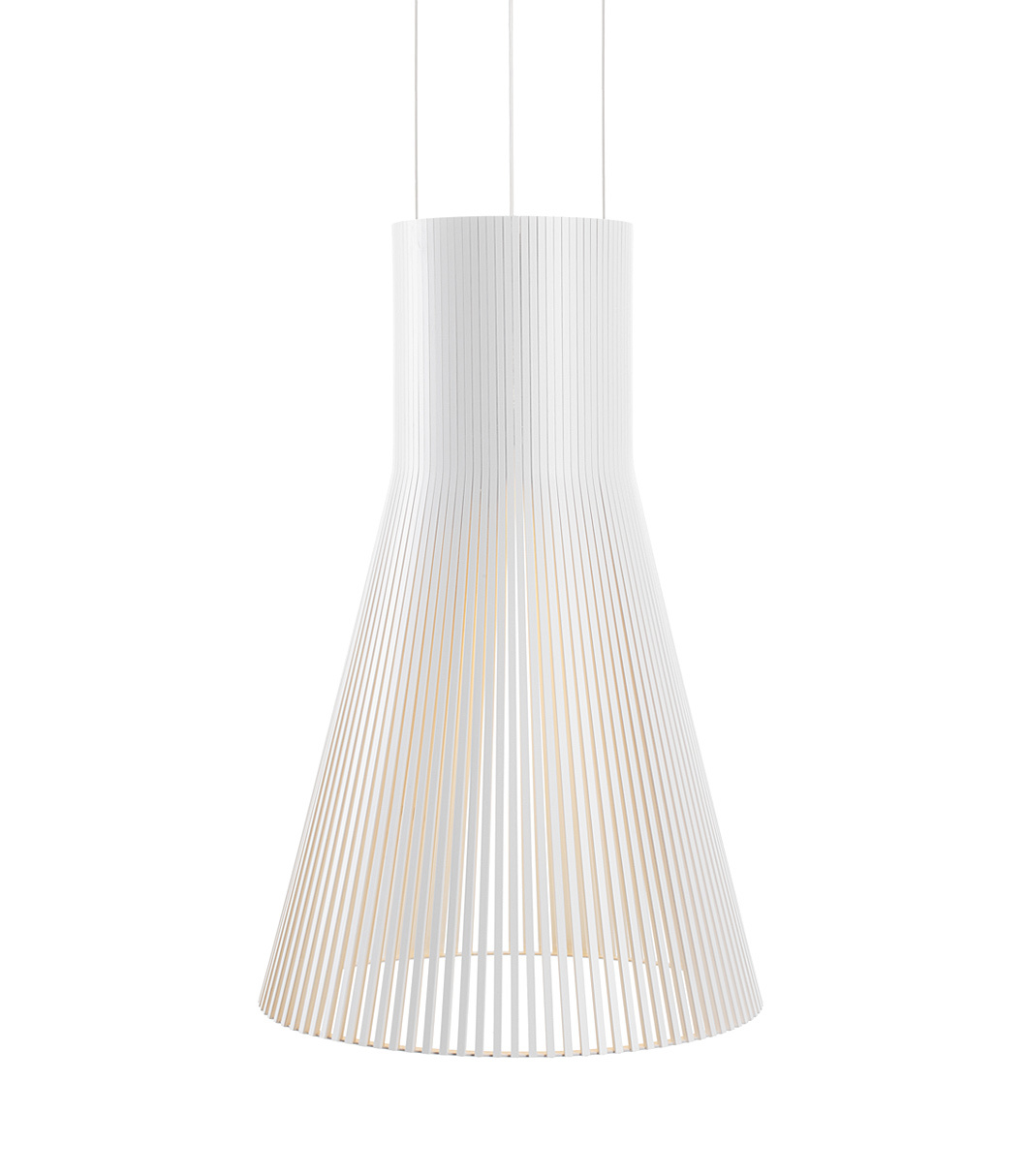

Magnum 4202 pendant lamp is available in white laminated

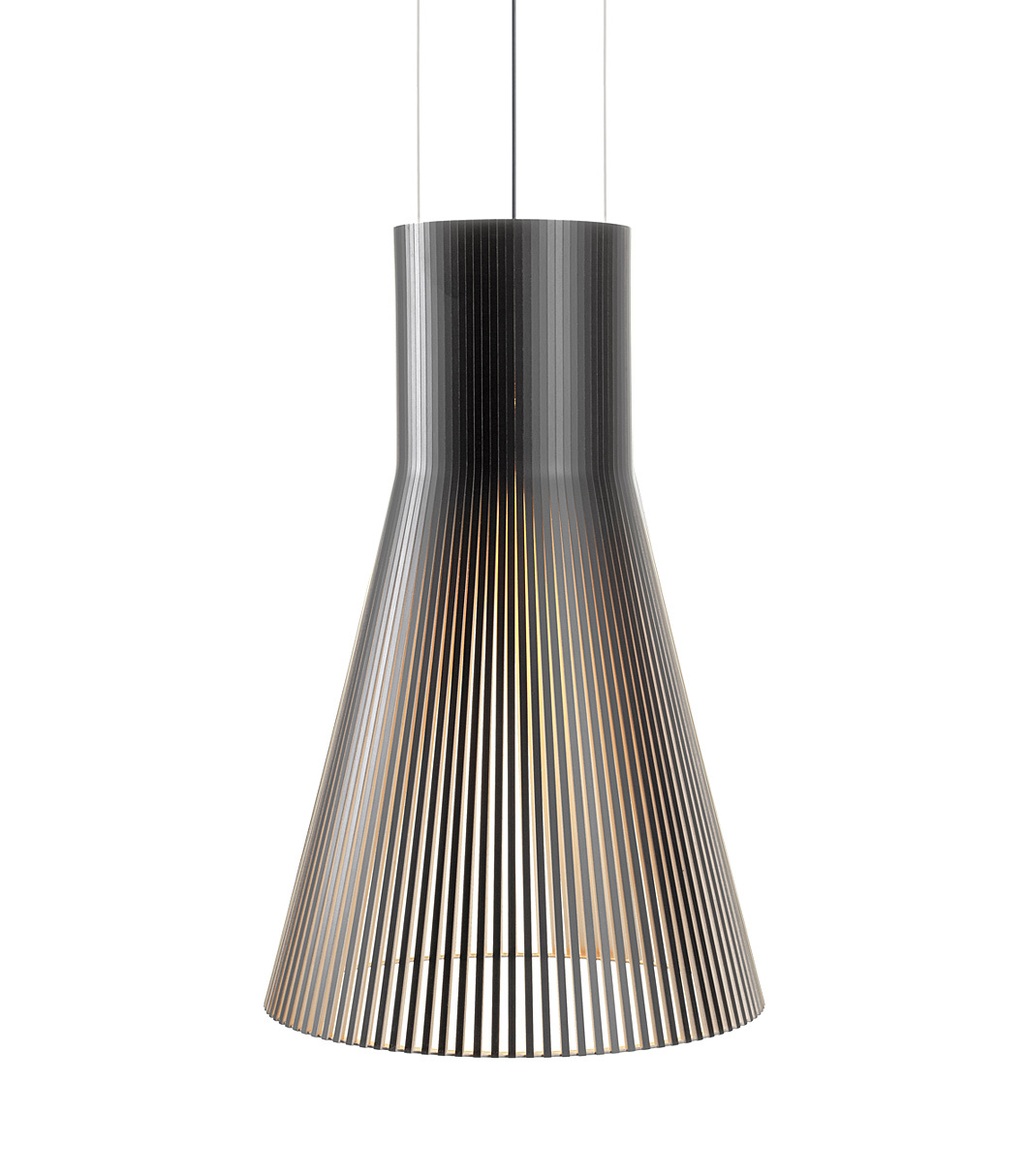

Magnum 4202 pendant lamp is available in black laminated

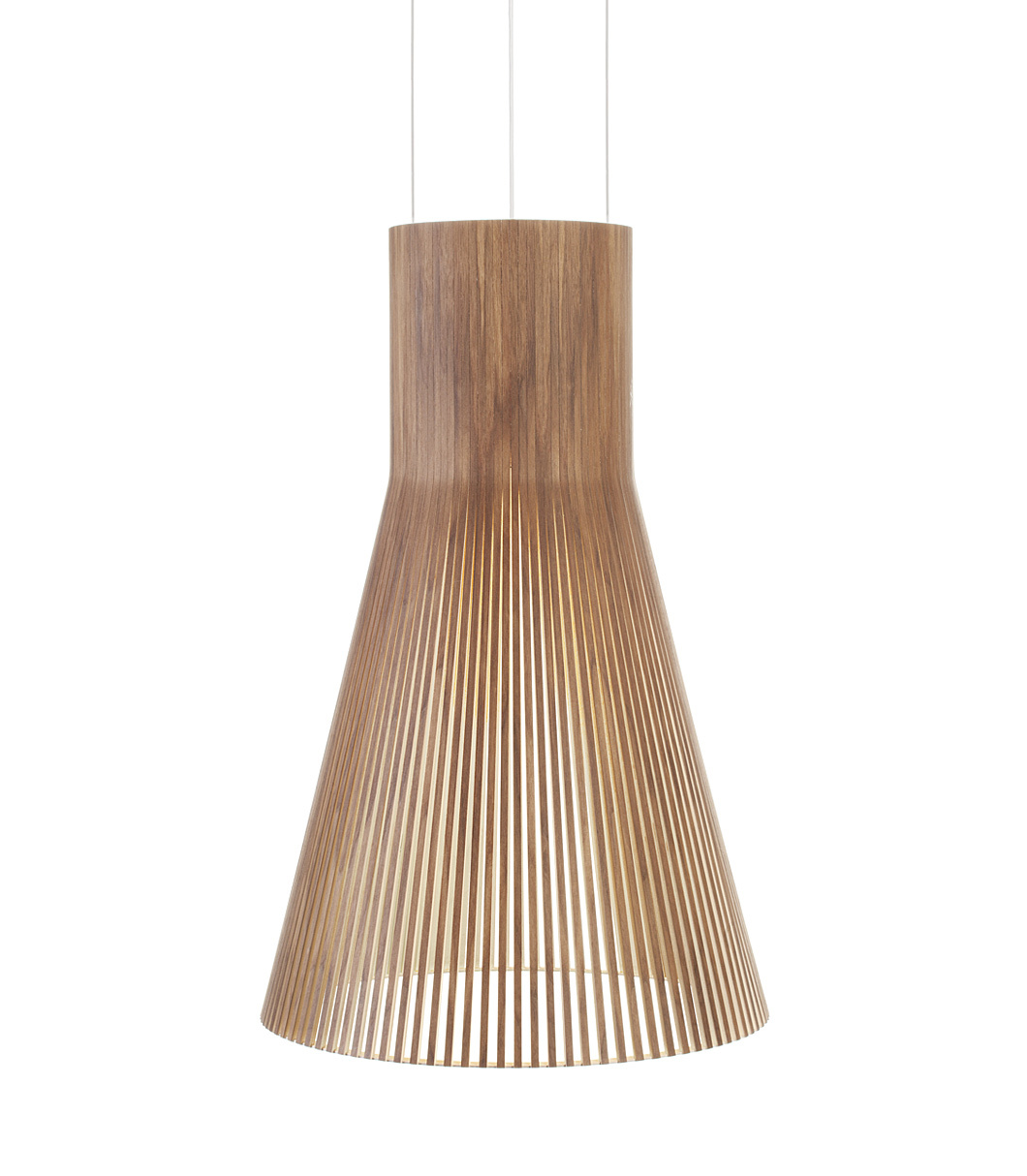

Magnum 4202 pendant lamp is available in walnut veneer

Magnum 4202 pendant lamp:
Monumental yet cosy

Magnum 4202 was originally designed for public spaces. Also great in homes with high ceilings.

Colour:

Get it here!

Magnum 4202 pendant lamp

Magnum 4202 pendant lamp

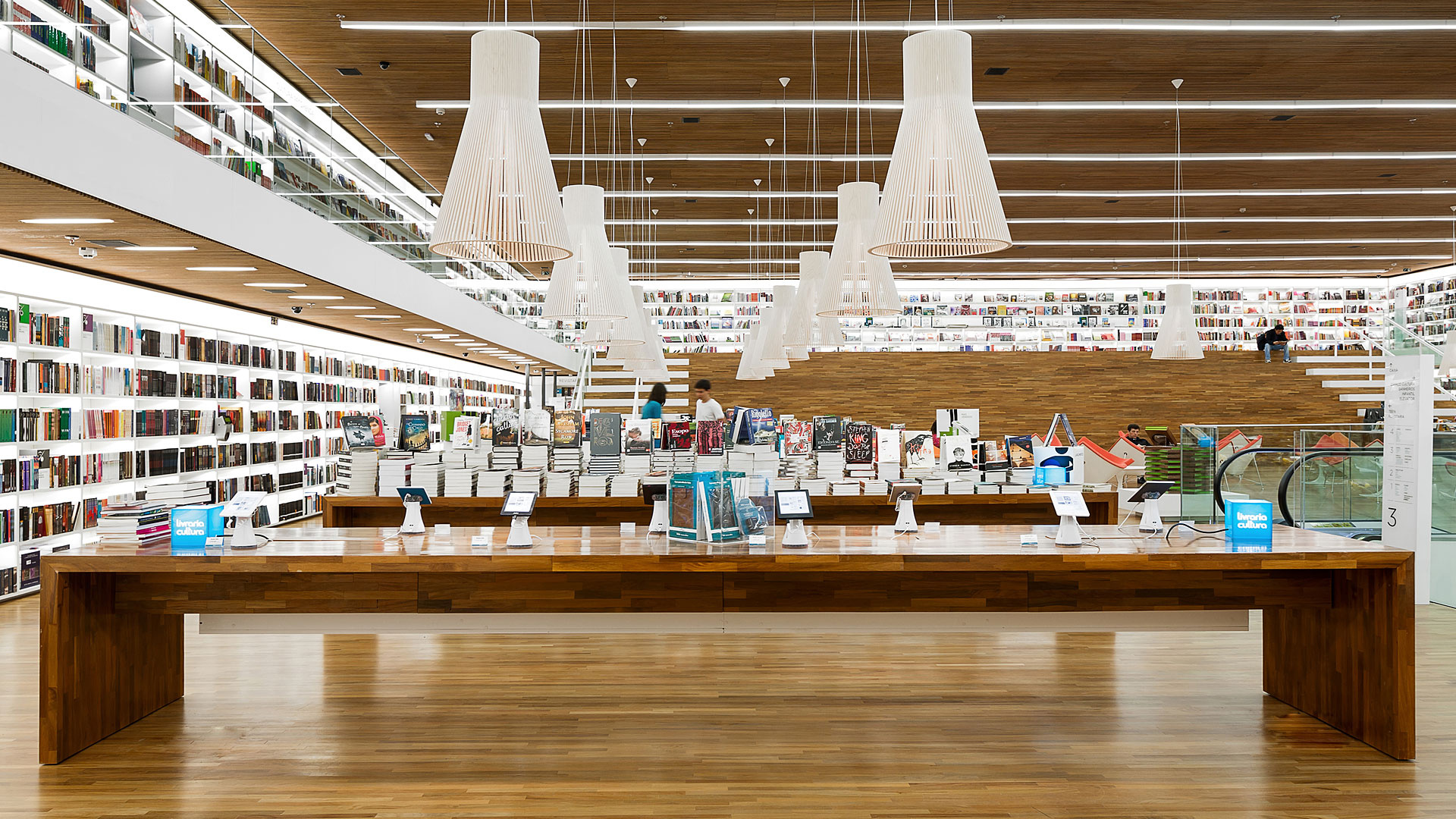

Magnum 4202. Livraria Cultura, São Paulo, Brazil. Project by studiomk27. Photo by Fernando Guerra

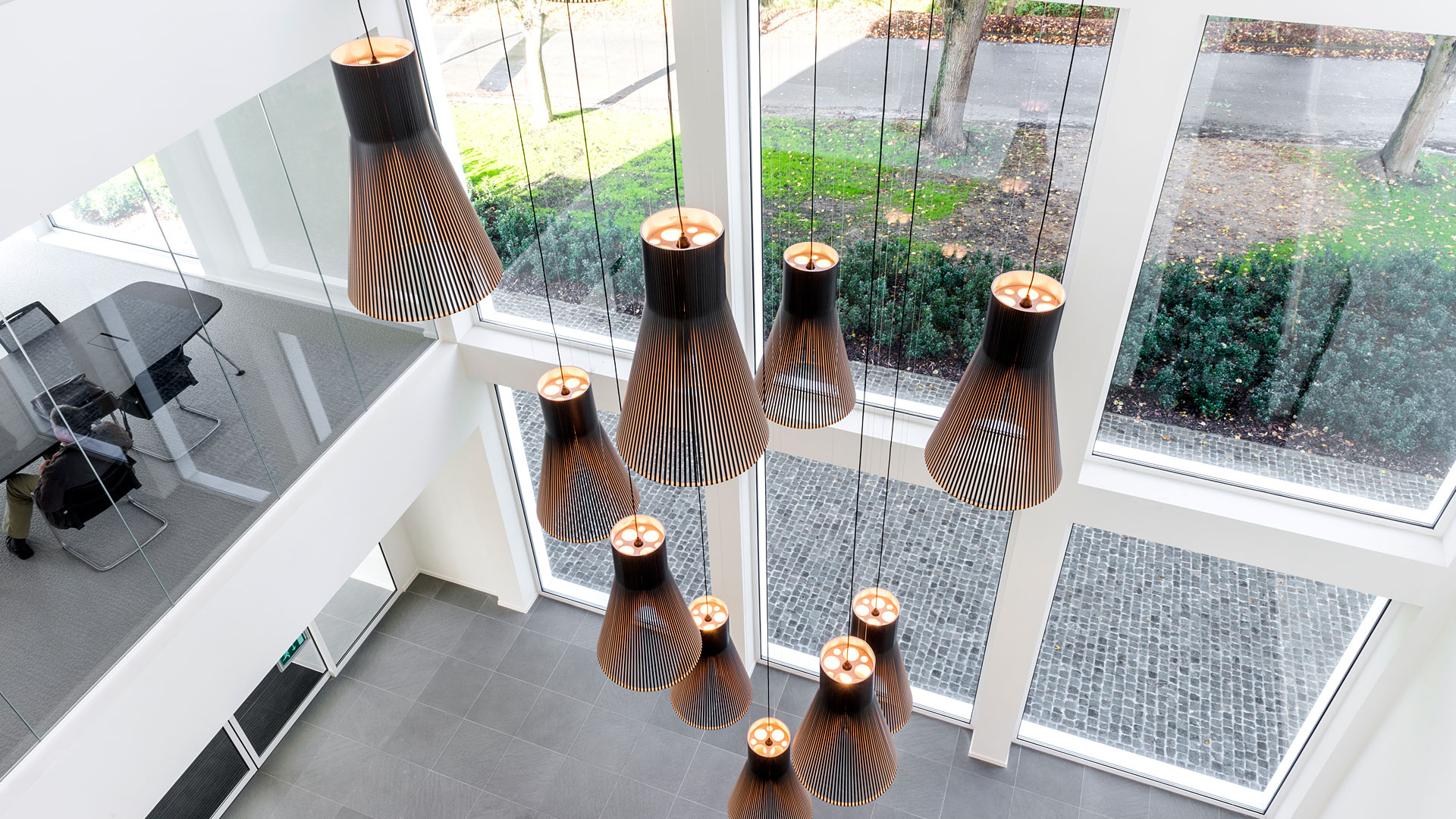

Magnum 4202. VPK Packaging, New headquarters, Aalst, Belgium. Architecture and interior design by De Cort & Dervichian. Photo by De Cort & Dervichian

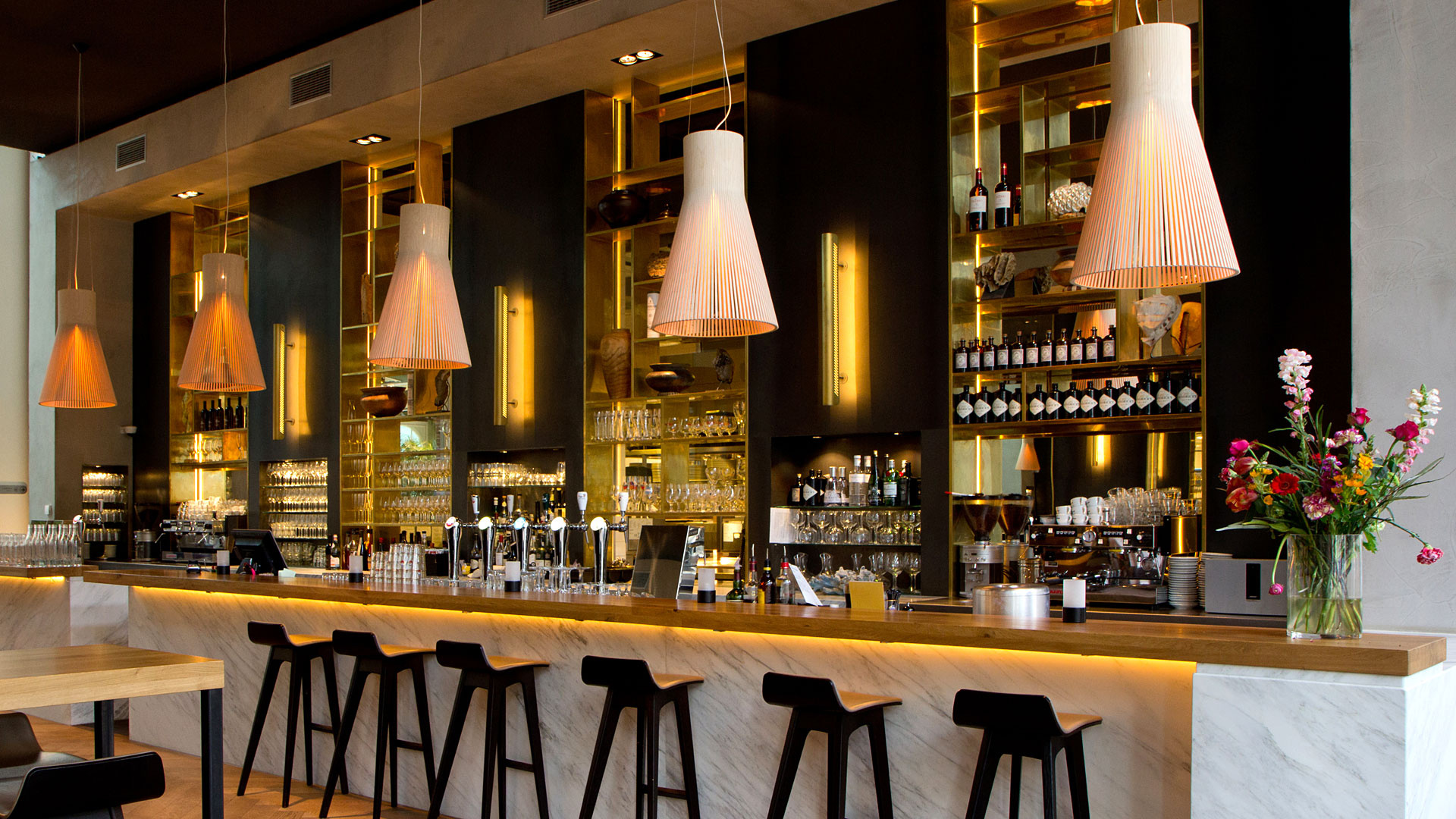

Magnum 4202. Cafe & Restaurant De Plantage, Amsterdam, The Netherlands. Architecture by Studio Linse. Photo by Ellen Swaan

More images of the Magnum 4202 pendant lamp here

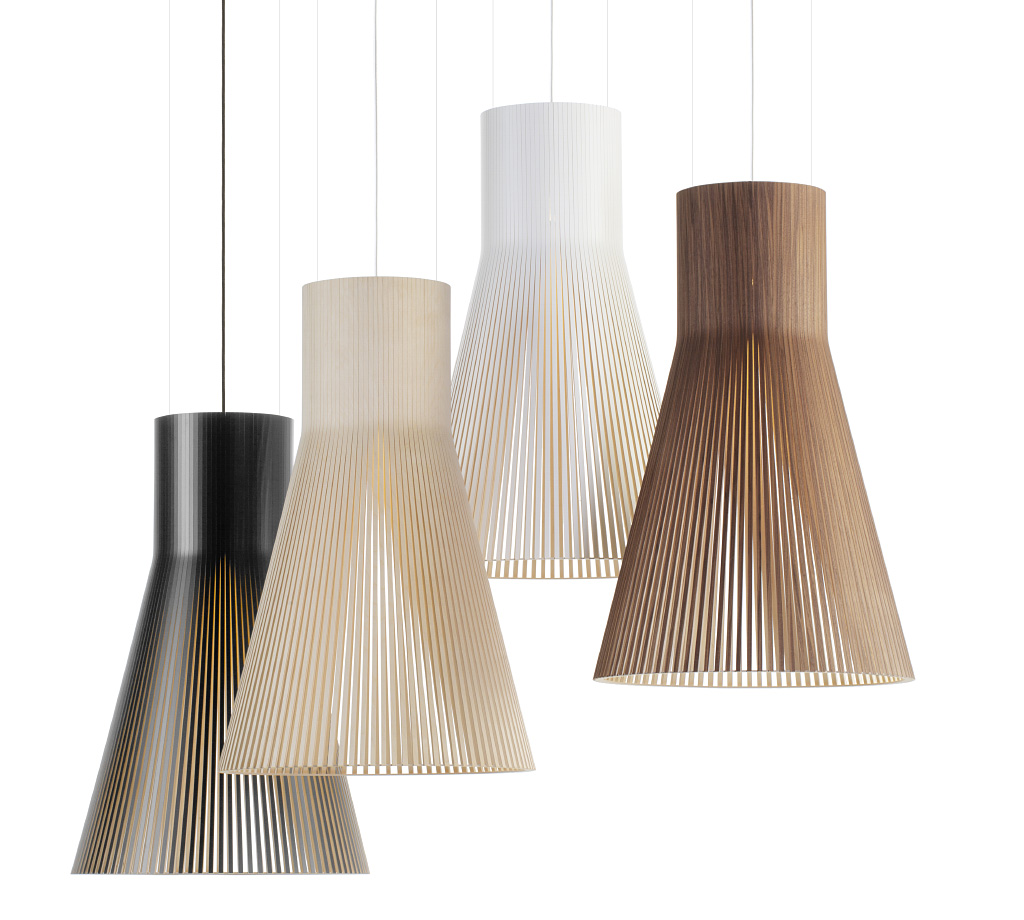

Secto Design Magnum 4202 pendant lamp is available in four colours: birch, walnut, black and white.

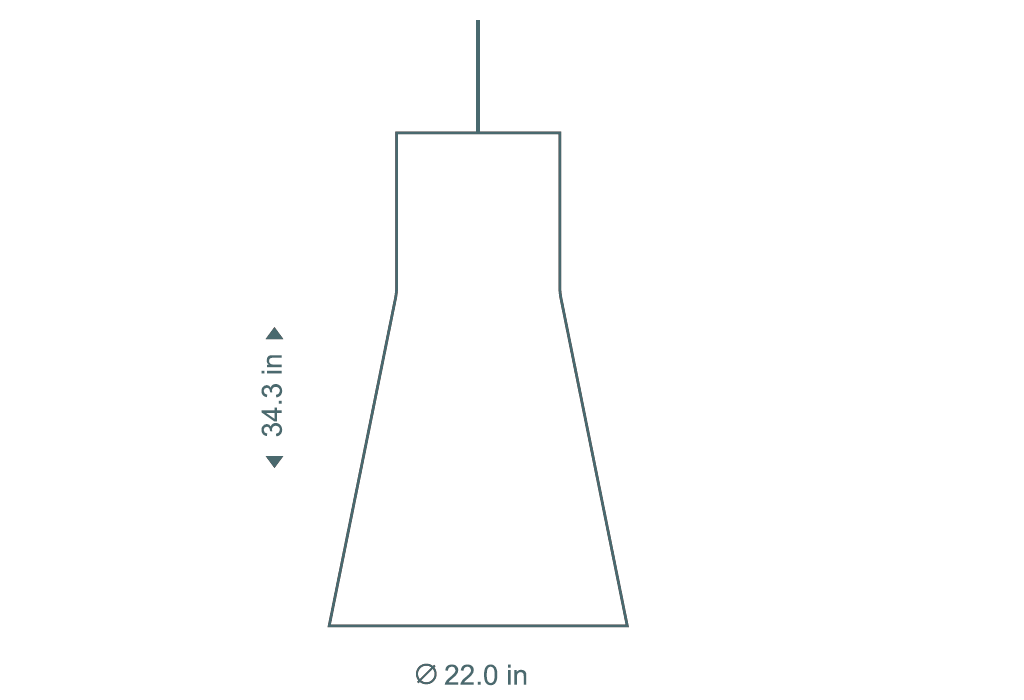

Secto Design Magnum 4202 pendant lamp is 34.3 in high and its diameter is 22 in.

Magnum 4202 pendant lamp

Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen.

Finishing options

Shade CableCeiling cup
Natural birch WhiteWhite
White laminated WhiteWhite
Black laminated Black Black
Walnut veneer White White

Product details (ETL/CETL)

Material  Form pressed birch
Dimensions Height 34.3 in
Diameter Ø 22.0 in
Weight 9.3 lb
Package 22.8 × 22.8 × 36.6 in, 19.4 lb
Voltage 120V 60Hz
Light source E26 (LED max. 22 W) or GU24 (LED max. 17 W). Bulbs are not included. The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating.
Cable 8 ft, textile cable, ceiling plug/connector, ceiling cup, 3 steel wires
Classification Ingress Protection IP20, IEC Protection Class II, ETL/CETL listed
Installation Separate instructions on the website.
Maintenance Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth.

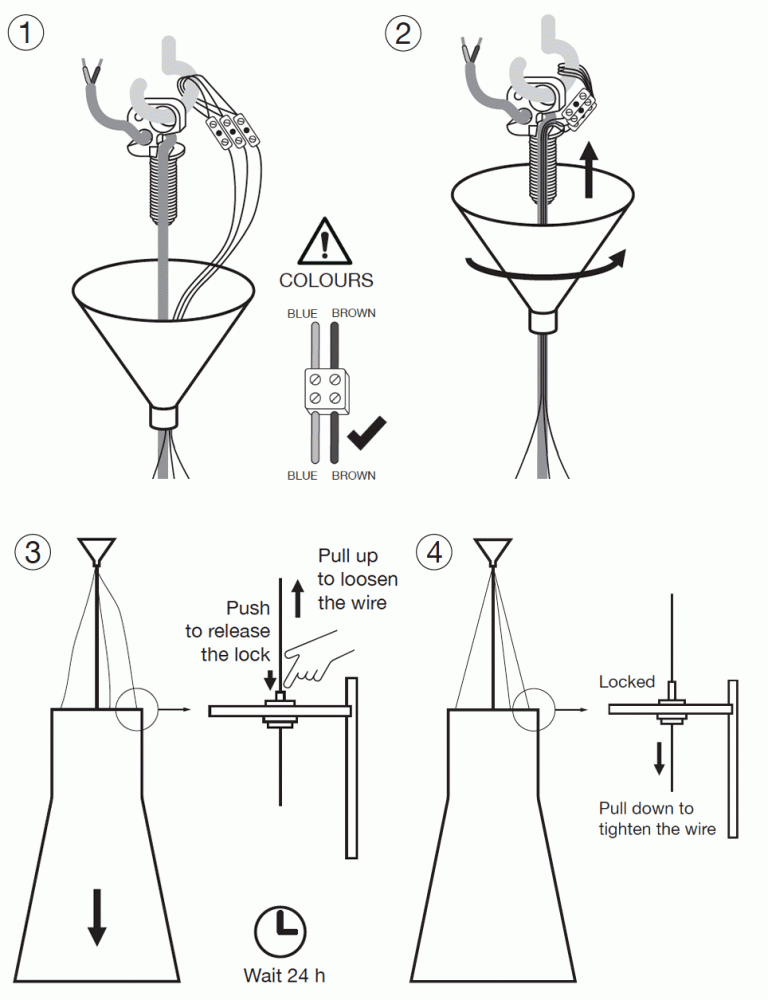

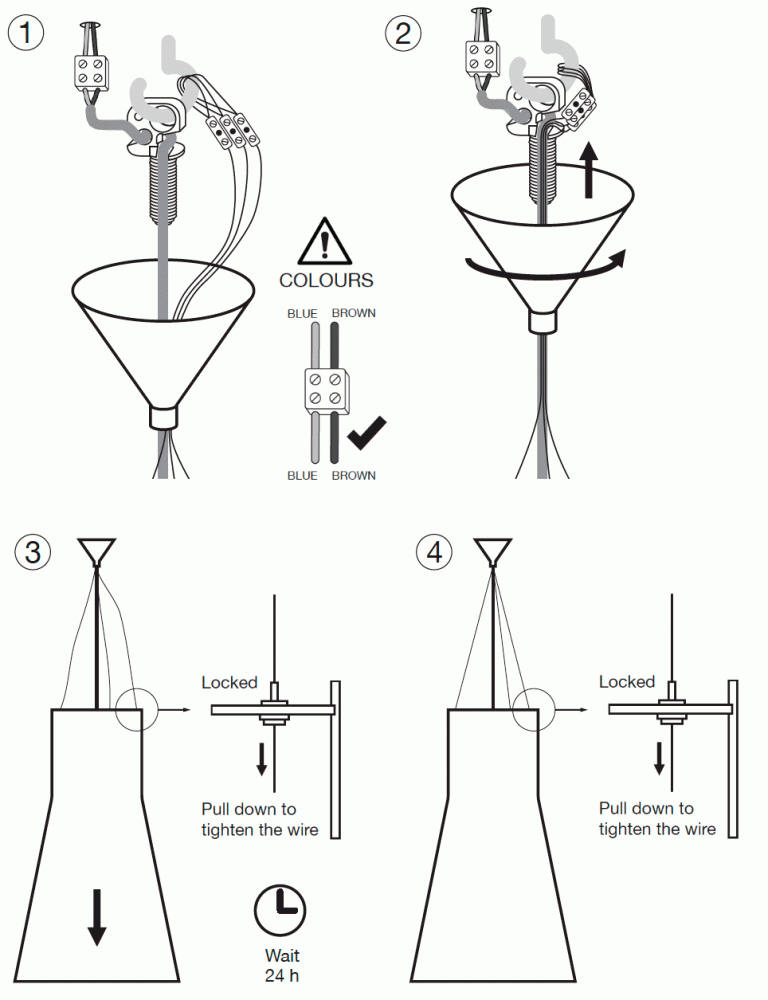

Installation instructions

Step 1Install the power cord and support wires as illustrated. NB. The power connector may vary according to the local standard or regulations. Consult an authorized electrician if necessary.
Step 2Insert the wires into the cord slot. Tighten the cup to the screw according to the separate manual.
Step 3Loosen all three steel wires and let the whole weight of the lampshade rest on the power cord only. Leave for 24 hours to stabilize the height.
Step 4Tighten the support wires by pulling them. You may cut the extra length.

Steel wire details

The Magnum pendant includes three steel wires for balancing the shade.

The wires are attached from the end loops (pic. 1) to the ceiling hook (not incl.) inside the ceiling cup. The other end of the wires are attached to the shade. If the hanging height of the Magnum is altered, the length of the steel wires can be changed with the adjustable screws (pic. 2) by pushing the tip at the top of the screws down and then sliding the wire into the hole.

Please find enclosed detailed images of the loops and the adjustable screws.

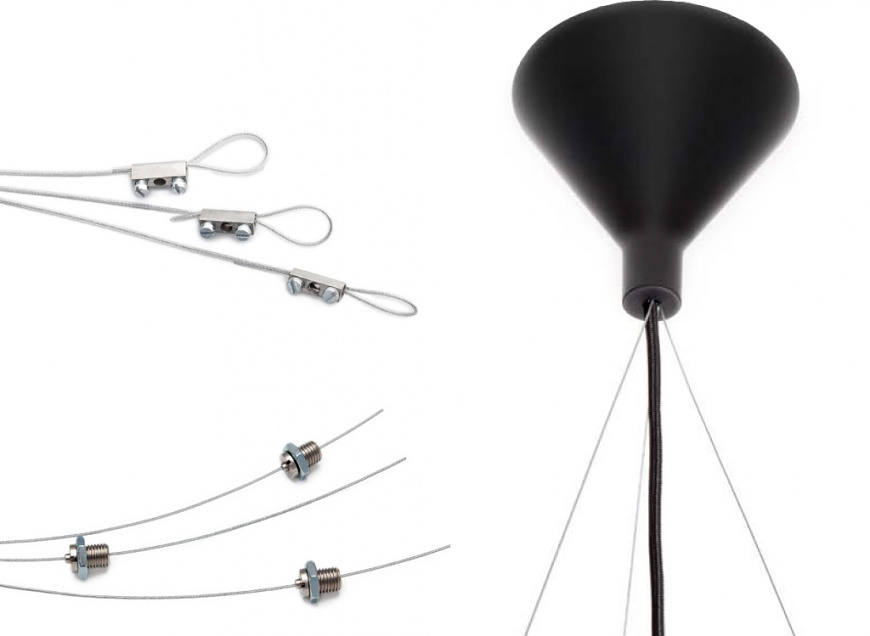

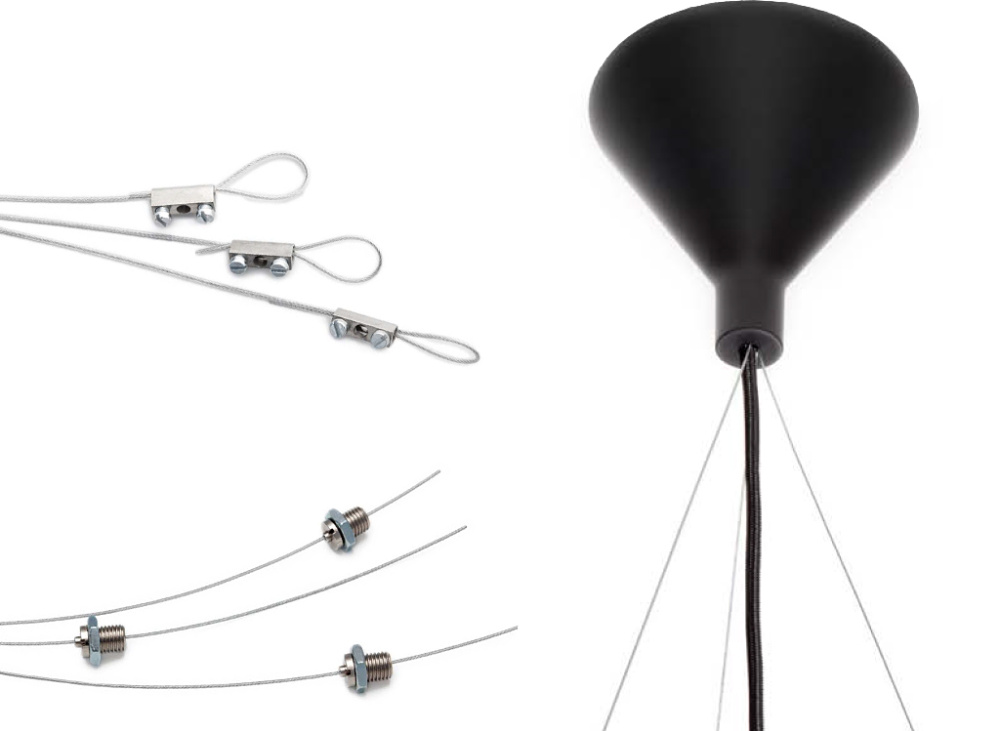

The end loops of the Magnum steel wires (above). The adjustable screws of the Magnum steel wires (below)

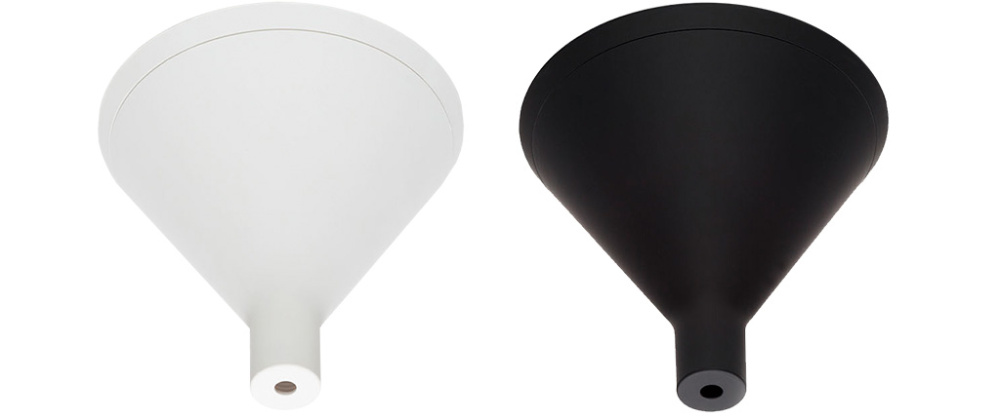

Standard ceiling cup

Height4.4 in / 4.7 in (with ring)
Outer upperØ 4.8 in / 5.2 in (with ring)
Inner upperØ 4.6 in / 4.8 in (with ring)
Weight0.13 lb / 0.16 lb (with ring)
ColorWhite or black matt soft lacquer depending on the colour of the pendant
InformationThe standard ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket.

Any extra length of the cable can be swirled into the ceiling cup when altering the hanging height of the pendant.

Light distribution

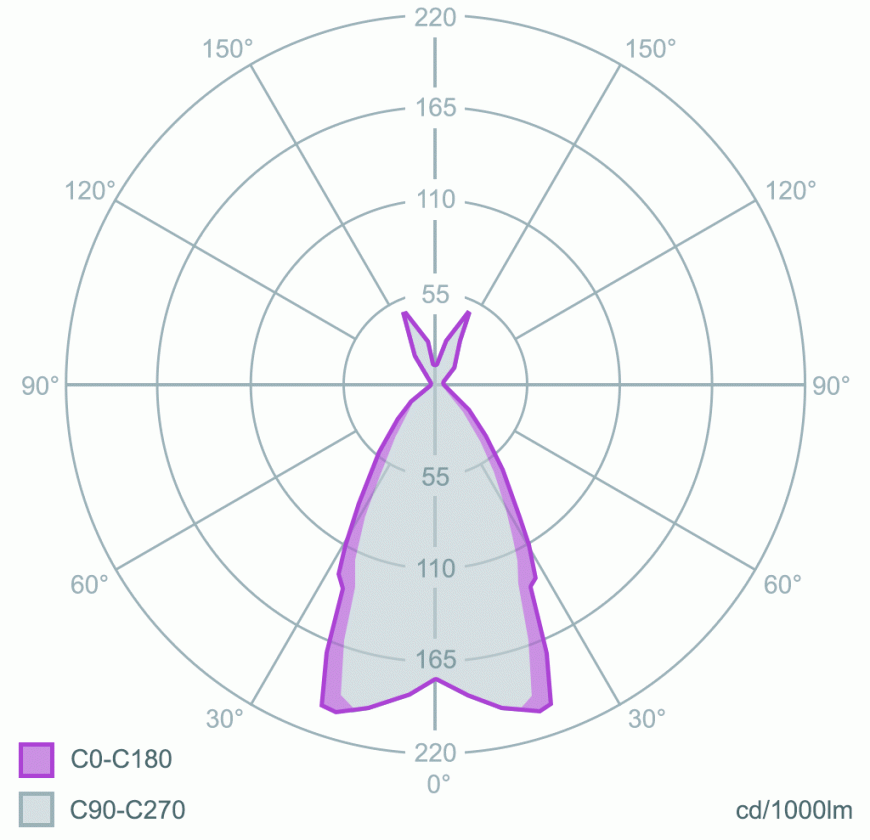

Light distribution curve of Magnum 4202. Light distribution is shown in two perpendicular vertical planes (C-planes).

Download LDT
