Secto Small 4201 pendant lamp:
Modern and approachable
The smaller Secto pendant suitable for spaces with lower ceilings. Impressive in rows and larger groups.
More images of the Secto Small 4201 pendant lamp here
Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen.
Shade | Cable | Ceiling cup |

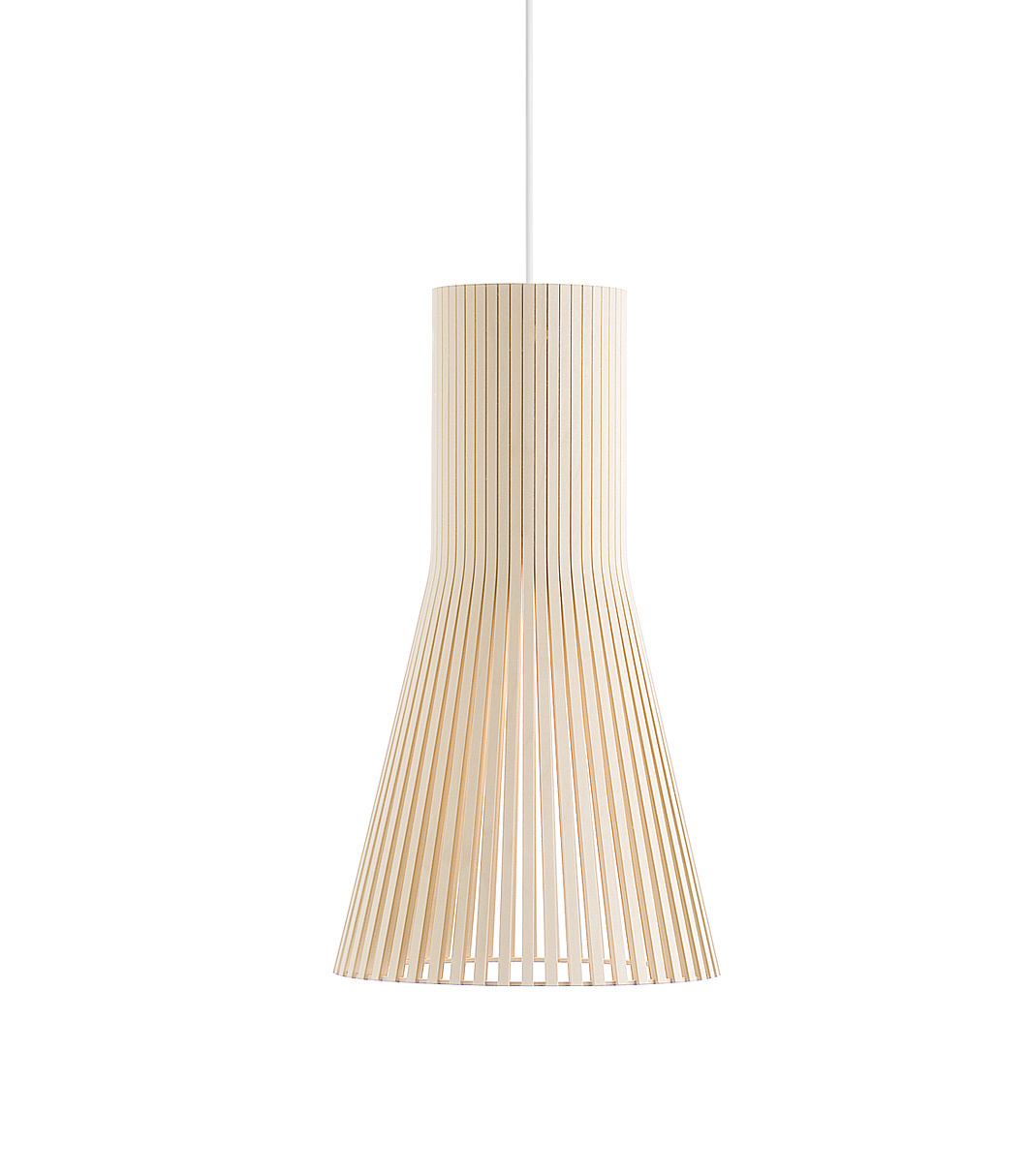

Natural birch | White | White |
White laminated | White | White |

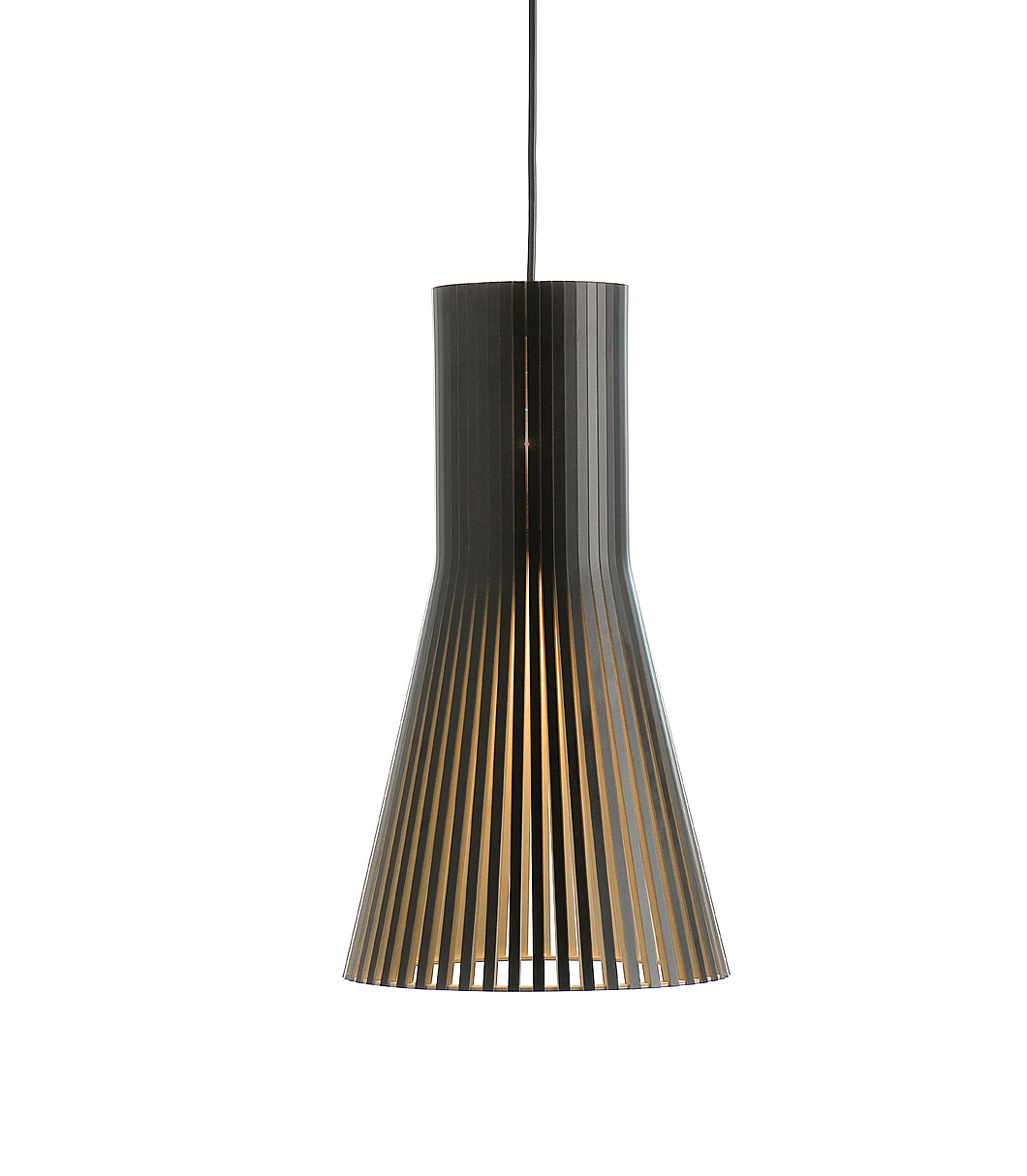

Black laminated | Black | Black |

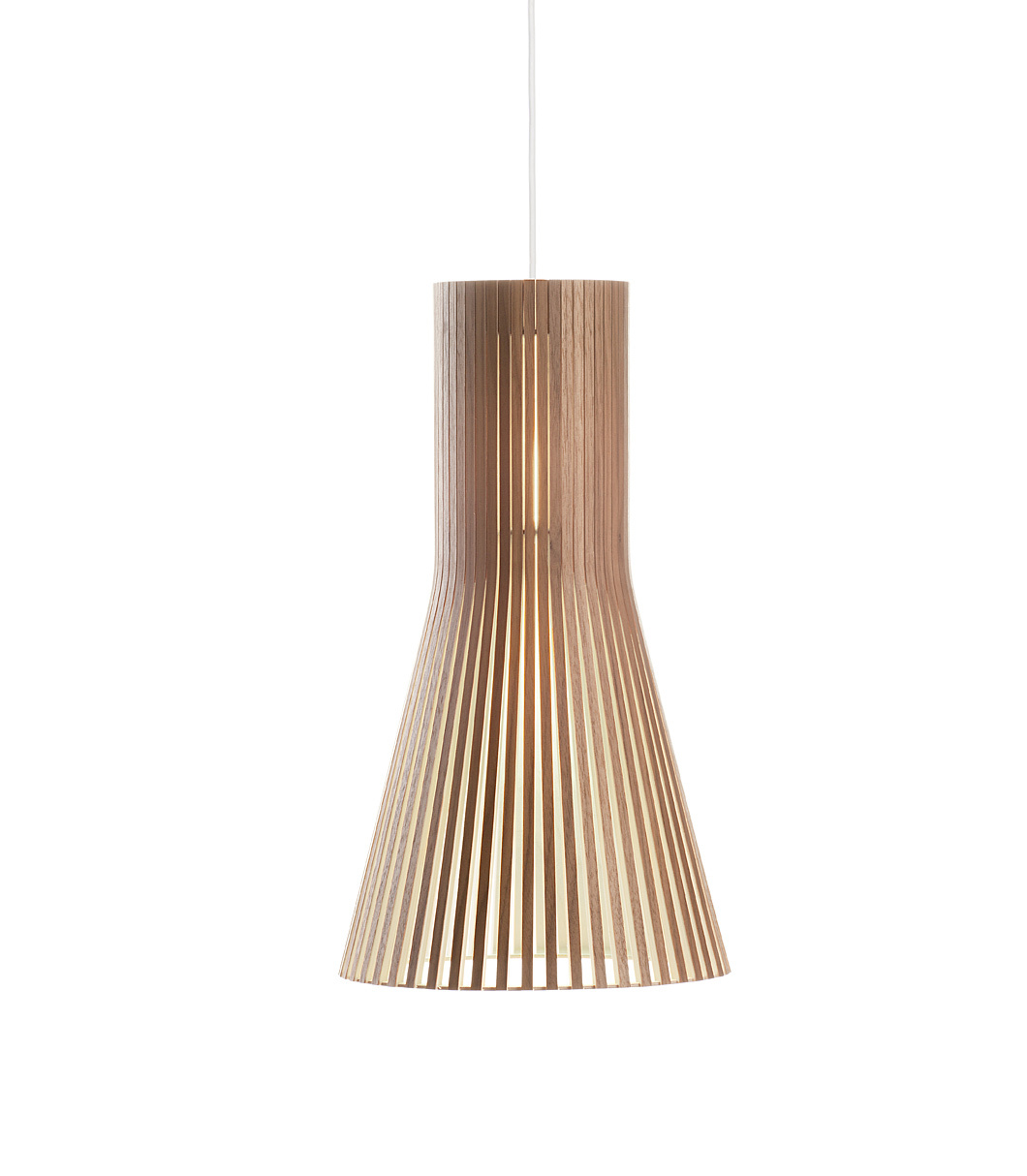

Walnut veneer | White | White |
Material | Form pressed birch |
Dimensions | Height 17.7 in Diameter Ø 9.8 in Weight 2.6 lb Package 10.2 × 10.2 × 19.7 in, 3.7 lb |
Voltage | 120V 60Hz |
Light source | E26 (LED max. 22 W) or GU24 (LED max. 17 W). Bulbs are not included. The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating. |
Cable | 8 ft, textile cable, ceiling plug/connector, ceiling cup |
Classification | Ingress Protection IP20, IEC Protection Class II, ETL/CETL listed |
Maintenance | Wipe dust regularly. To remove fresh stains wipe with a slightly moist cloth. |
This Secto Design pendant uses the patented ceiling suspension by Dezall. Easy and quick to install, enables the ceiling cup to sit perfectly tight against the ceiling.
Step 1, 2, 3 | Fasten the cable into the screw at the desired hanging height. |
Step 4 | Connect by using the screw nuts for each cable: live, neutral and earth. |
Step 5 | Screw the metal ceiling plate to the junction box in the ceiling. |
Step 6 | Hang the screw on the hook and wind the ceiling cup upwards until it sits tightly against the ceiling. |
Height | 4.4 in / 4.7 in (with ring) |
Outer upper | Ø 4.8 in / 5.2 in (with ring) |
Inner upper | Ø 4.6 in / 4.8 in (with ring) |
Weight | 0.13 lb / 0.16 lb (with ring) |
Color | White or black matt soft lacquer depending on the colour of the pendant. |
Information | The standard ceiling cup includes an additional ring, which enables leading the cable along the ceiling into the ceiling cup. The additional ring can also be used to cover a larger ceiling socket. Any extra length of the cable can be swirled into the ceiling cup when altering the hanging height of the pendant. |
Light distribution curve of Secto Small 4201. Since the luminaire is symmetric the light distribution curve is similar at every C-planes.
