Secto Small 4231 wall lamp is available in natural birch

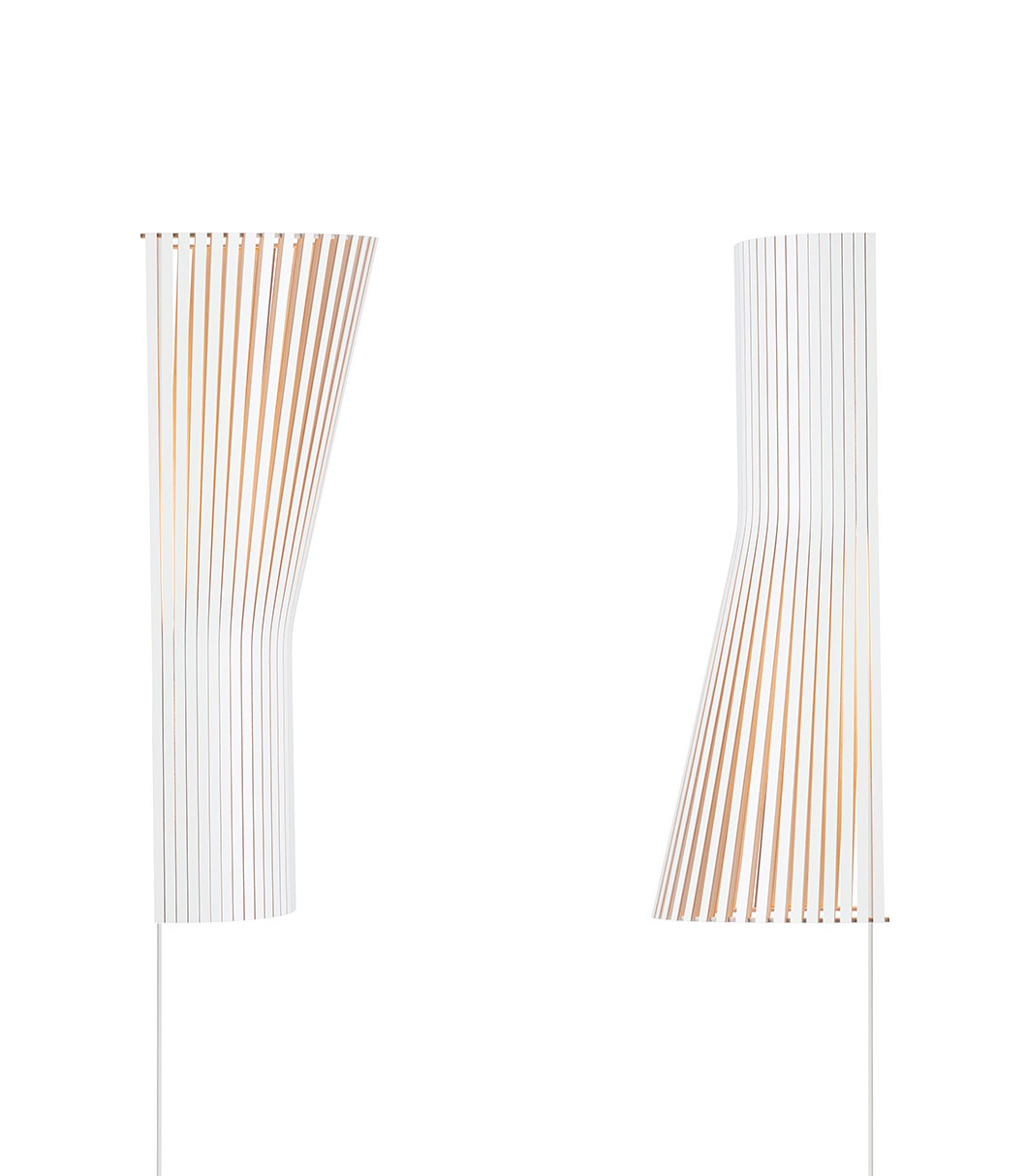

Secto Small 4231 wall lamp is available in white laminated
Secto Small 4231 wall lamp is available in black laminated

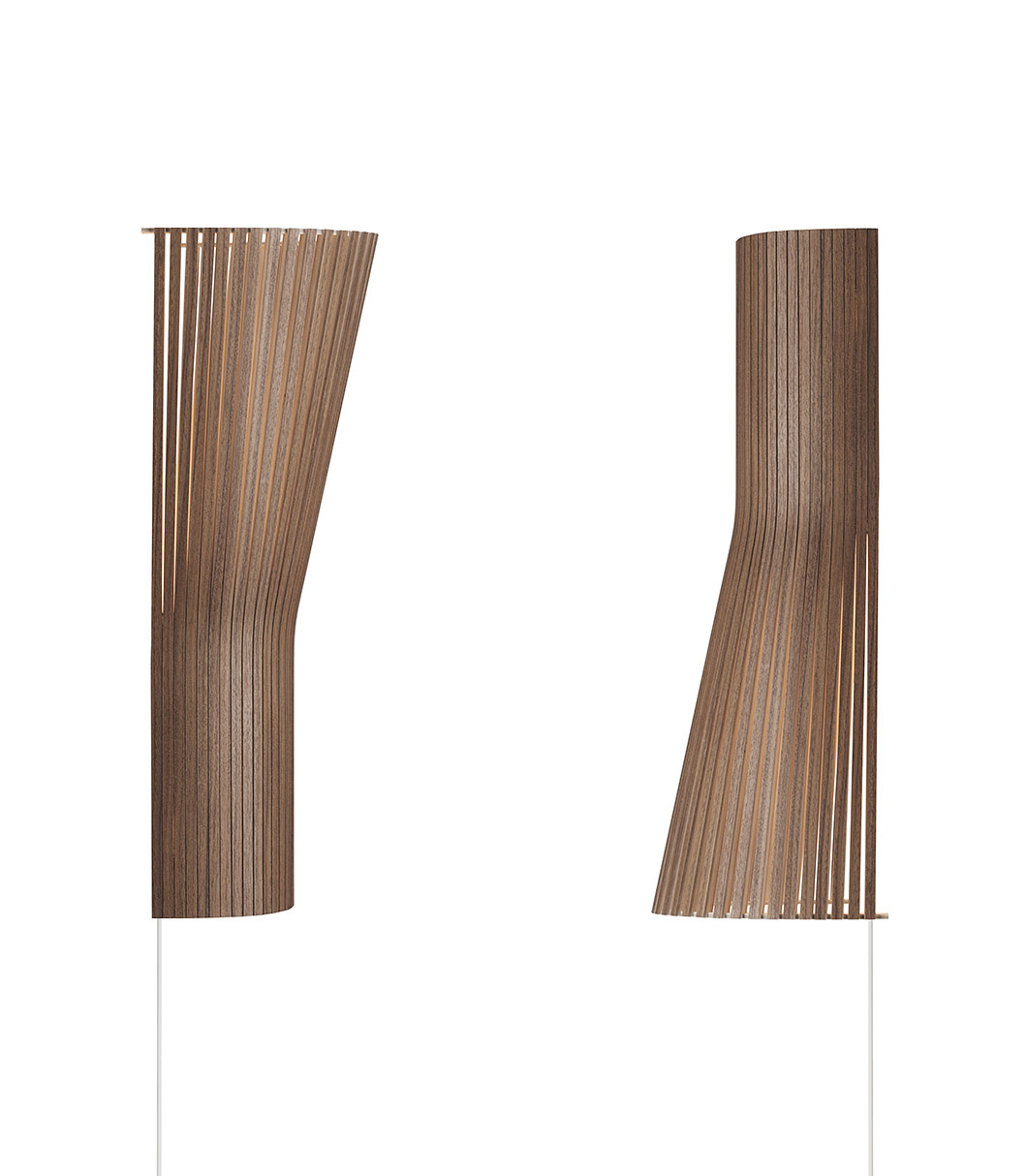

Secto Small 4231 wall lamp is available in walnut veneer

Secto Small 4231 wall lamp:
Wallbright

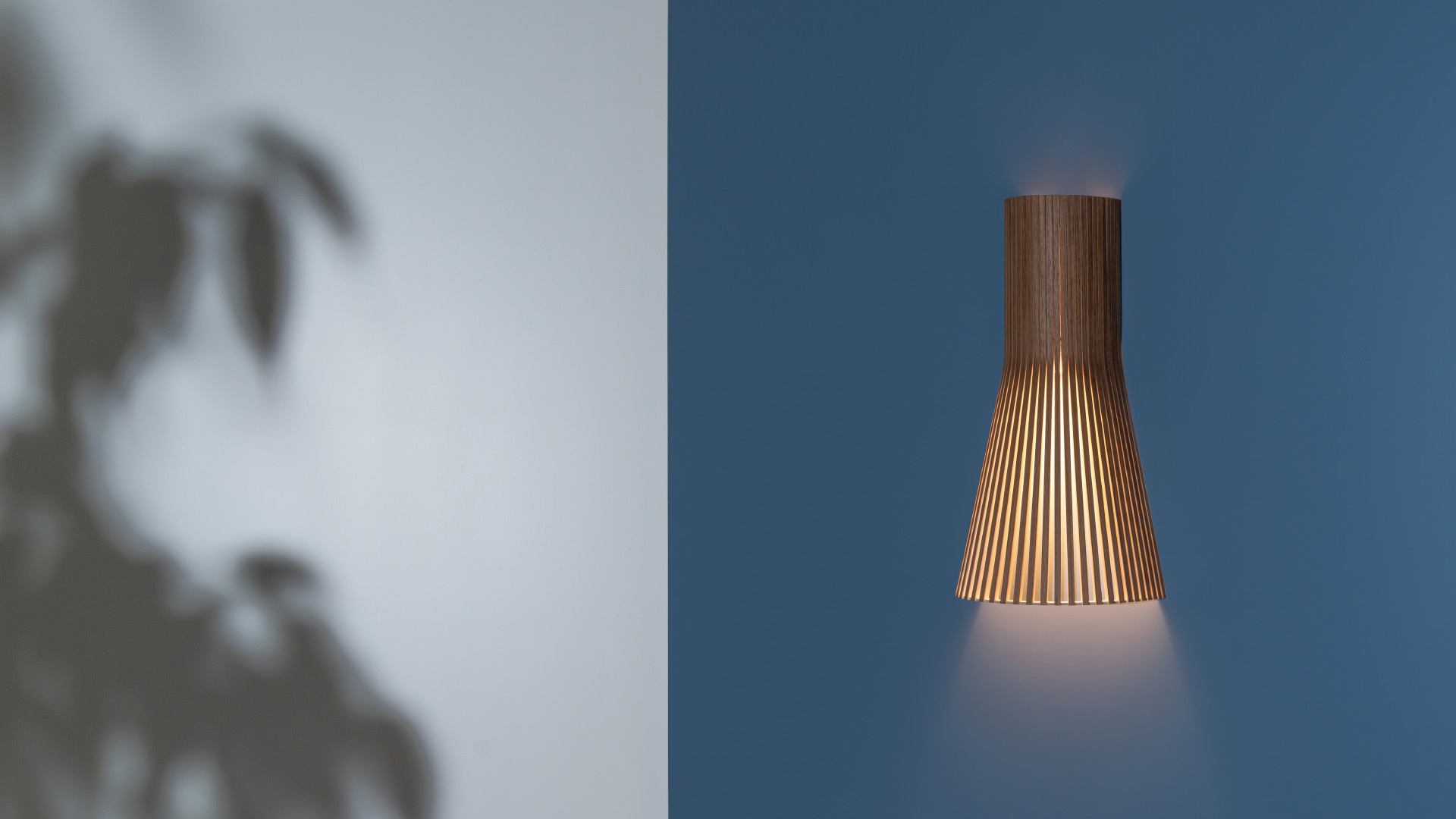

The smaller Secto wall lamp highlights the walls with its soft light. Delightful both on its own and in a row.

Colour:

Get it here!

Secto 4231 wall lamp

Secto Small 4231. Holiday Apartment Villa Tykkyrinne. Iso-Syöte, Pudasjärvi, Finland. Photo by Petri Teppo / Studio Arctica.

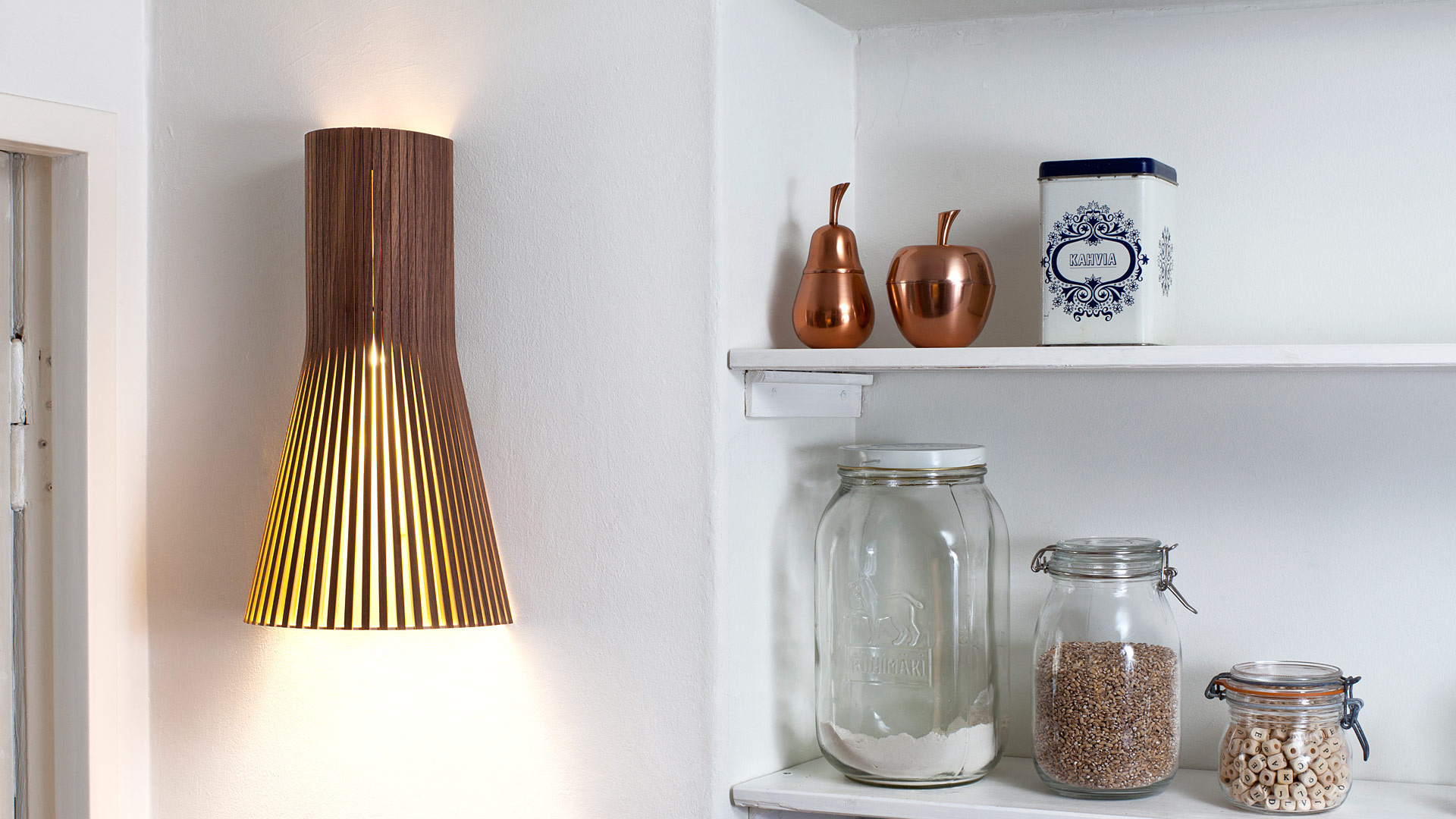

Secto 4231. Private Residence, Helsinki, Finland. Photo by Uzi Varon

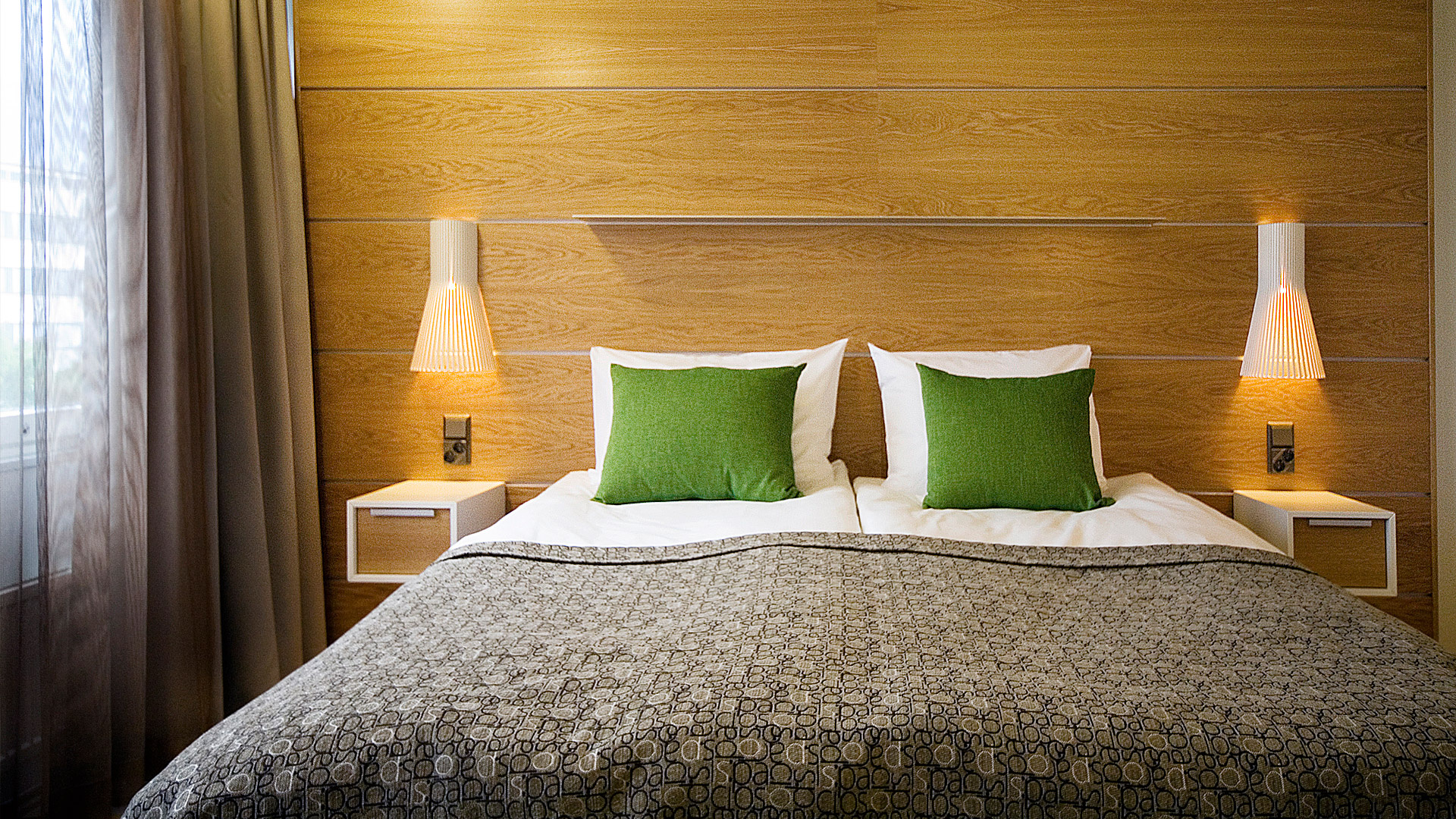

Secto 4231. Hotel Salpaus. Lahti, Finland. Photo by Pia Paalasvuo.

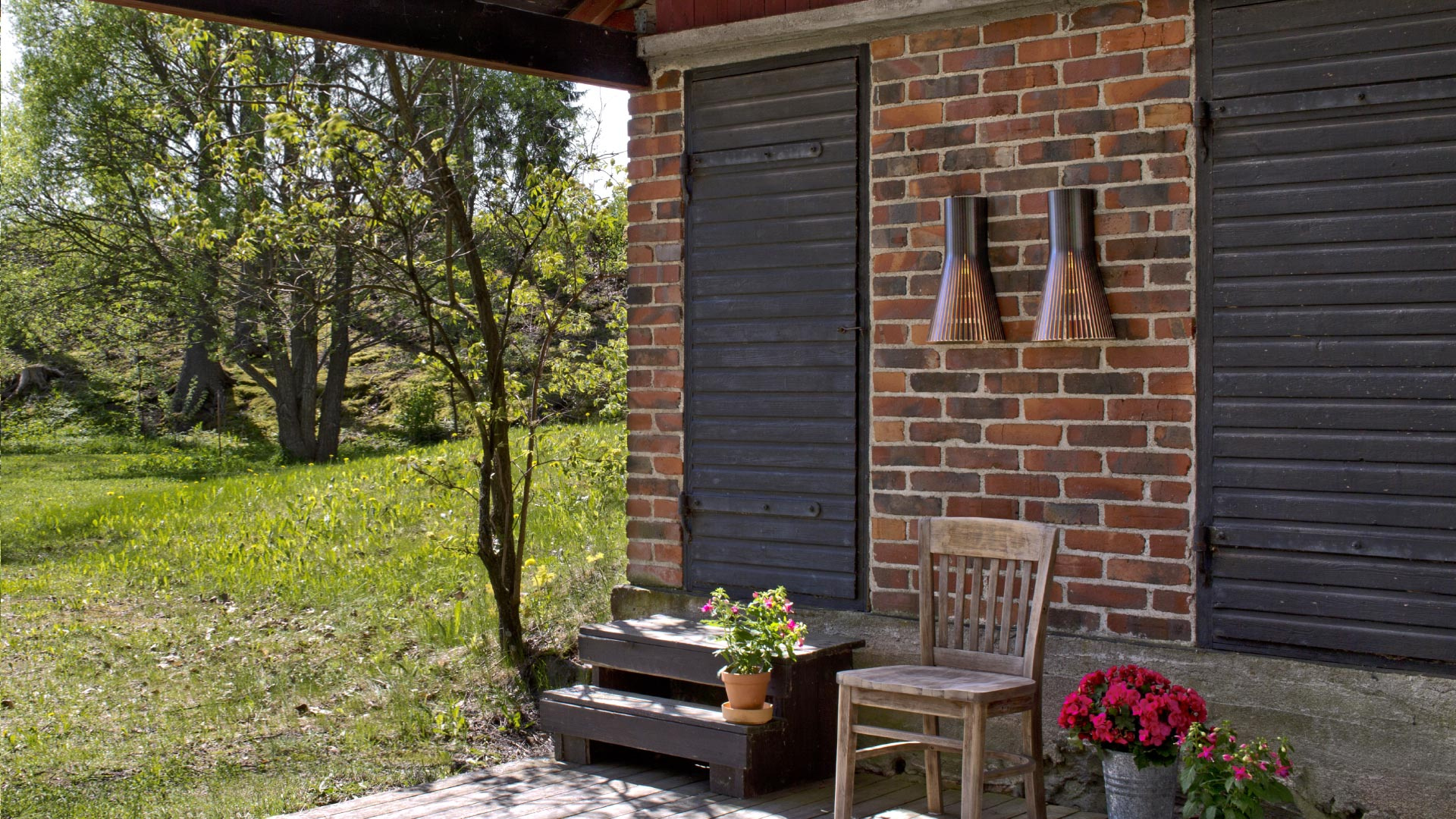

Secto wall lamps can also be used in covered patios.

More images of the Secto Small 4231 wall lamp here

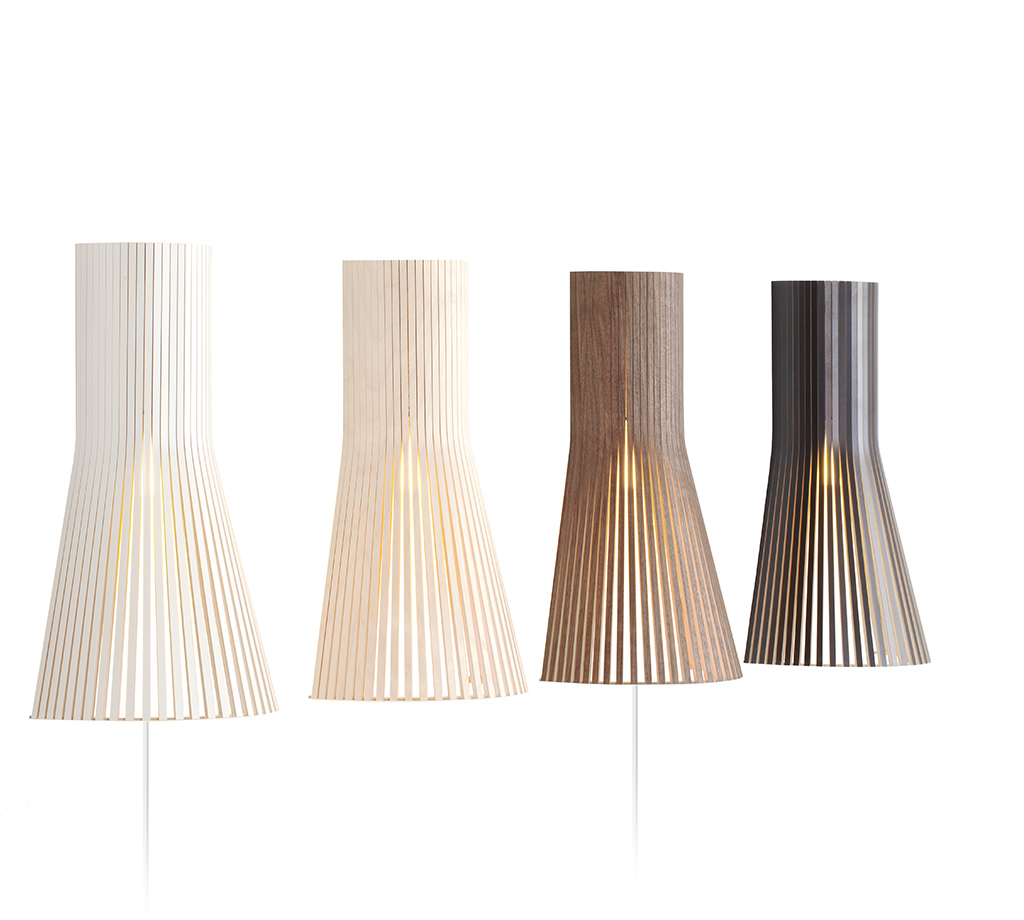

Secto Small 4231 wall lamp is available in four colours: birch, walnut, black and white.

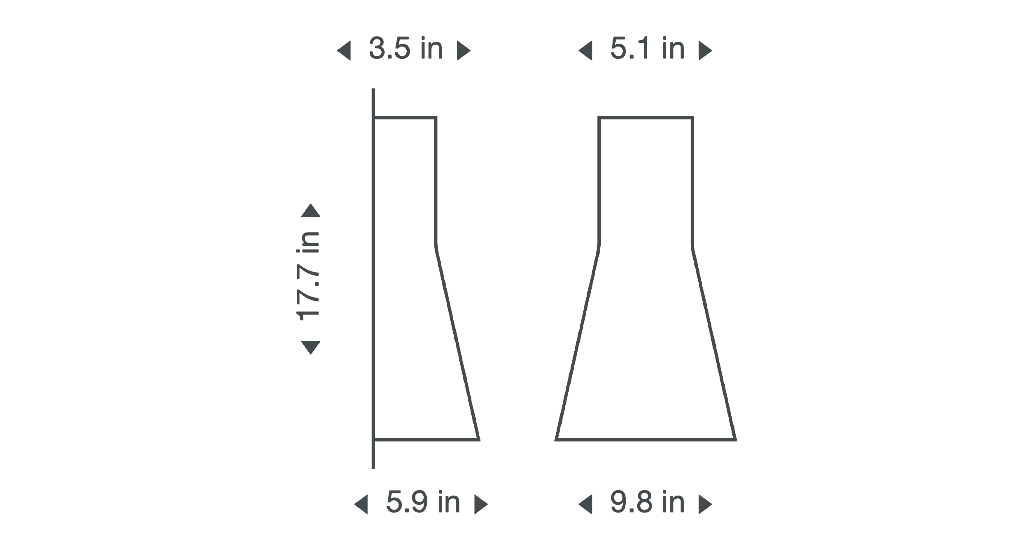

Secto Small 4231 wall lamp is 17.7 in high and its width is 5.1–9.8 in.

Secto Small 4231 wall lamp

Handmade of PEFC-certified form pressed birch in Finland by highly skilled craftsmen.

Finishing options

Shade Back plate Cable
Natural birch White White
White laminated WhiteWhite
Black laminated WhiteWhite
Walnut veneer WhiteWhite

Product details (ETL / CETL)

Material Form pressed birch slats, powder coated  steel back plate
Dimensions Height 17.7 in
Depth 3.5–5.9 in
Width 5.1–9.8 in
Weight 2.0 lb
Package 11.0 × 7.1 × 20.1 in, 3.5 lb
Voltage 120V 60Hz
Light source E12 base, LED max 20 W. Bulbs are not included. The use of special bulbs such as halogen, mirror or 12 V bulbs in Secto Design lamps is prohibited, due to overheating.
Cable 7.9 ft, textile cable, switch on the cable. Also available with direct wall mounting.
Classification Ingress Protection IP20, IEC Protection Class II, ETL/CETL listed
Installation Separate instructions on the website.
Maintenance Wipe dust regularly. To remove fresh stains wipe with a slightlymoist cloth.

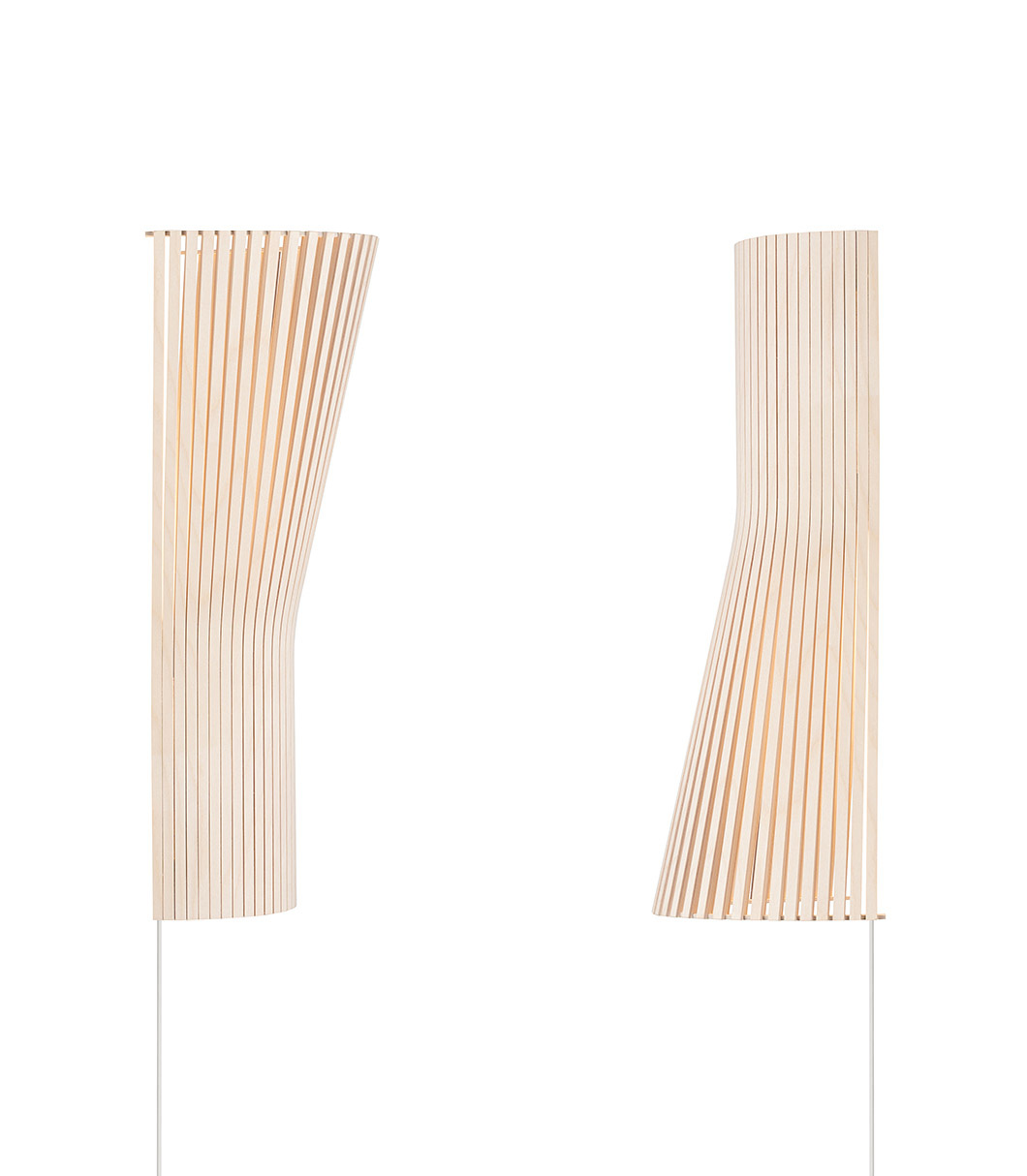

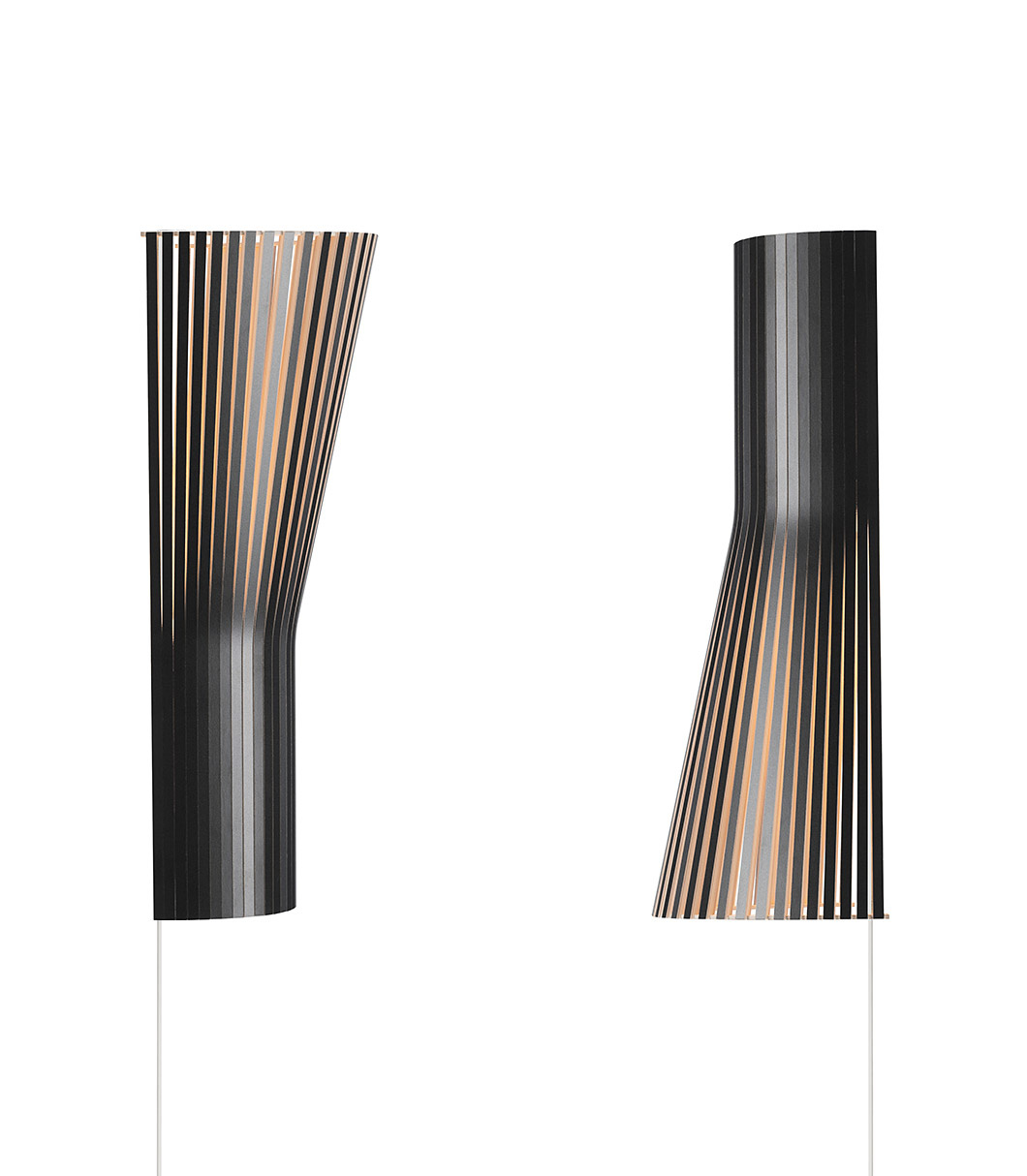

NOTE: This wall light can be placed facing either upwards or downwards.

WARNING: To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm's reach.

Information

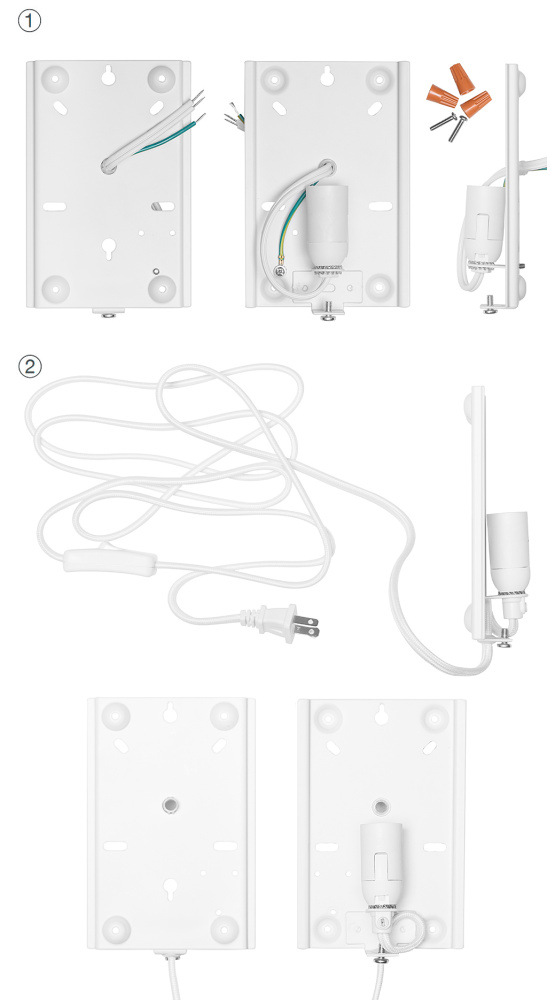

The back plate of the Secto 4230 / Secto Small 4231 wall lamp is made of powder painted steel. The lamp base is attached to the back plate. The shade has wooden rails for the plate. The plate is fastened to the shade with a top screw.

Installation

Step 1Connect by using the screw nuts for each cable: live, neutral and earth.
Step 2 Screw the metal plate to the junction box in the wall. If you wish to hang the shade with an upwards opening, simply fasten the plate in the other direction.
Step 3Slide the wooden shade through the rails at the back of the shade and onto the wall plate. Tighten with the included screw.

Back plate details and measurements

The wall lamp can be installed with the cone part upwards or downwards. When the cone part is downwards the cable runs down between the plate and the wall.

Height6.1 in
Width 4.1 in

The standard version comes with a cable, a switch and a plug.

The wall mount version (by special order) can be mounted directly to the cables coming out of the wall socket by an electriciant.

The back plate is screwed (screws not incl.) to the wall. The wooden shade is then slid onto the plate along the wooden rails which are on the long sides of the shade. Alternatively the wall lamp can be hung to a wall hook (not incl.) after the plate is attached to the shade.



Plate instructions

Hole 1To raise the lamp of the wall and a possible means to secure the fixture to the wall.
Hole 2 For securing the lamp to a wall socket.
Hole 3For hook suspension.
Hole 4For treading the wall mount version's cables through the plate. Screws and hooks for securing the fixture are not included.

Please note that the measurements are approximates as all the shades are unique.

Installing upwards: top edge to the hook suspension hole (3.)

Light distribution

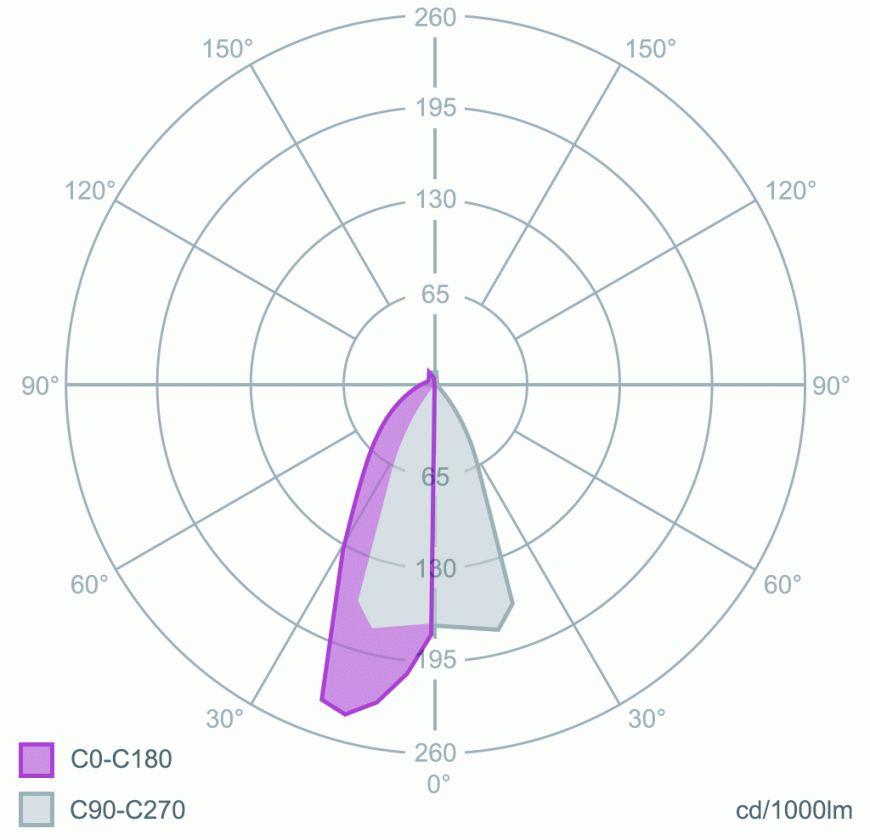

Light distribution curve of Secto Small 4231. Light distribution is shown in two perpendicular vertical planes (C-planes).
